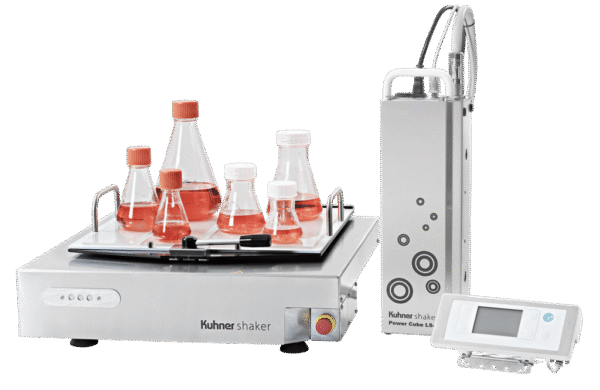

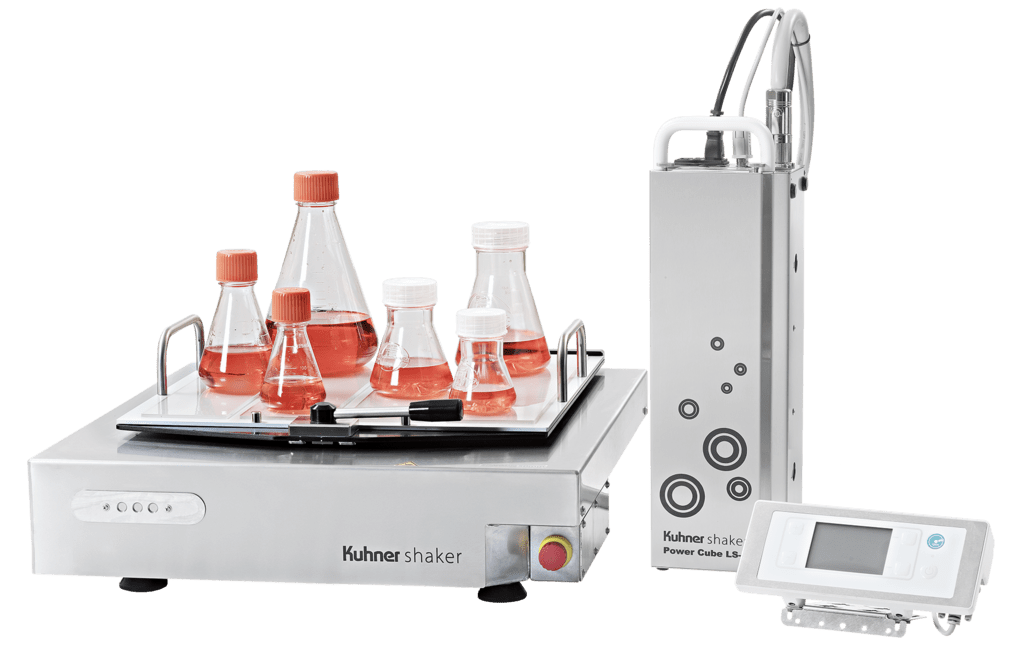

Kuhner Benchtop Shaker Model LS-Z (230V 50Hz)

$17,500.00



The Lab-Shaker LS-Z, just like its predecessor LS-X, is a sturdy benchtop shaker designed for continuous and maintenance-free operation. The LS-Z is part of a new 3-in-1 modular system to provide maximum flexibility to our customers. The shaker is the perfect starter model, e.g., for universities or start-ups. It can be used for cultivation of microbial, plant and animal cell cultures. Furthermore, the LS-Z is well suited for the integration into liquid handling systems (e.g., Tecan, Hamilton,…) and other automated laboratory processes.

  • Compact footprint
  • Flexible: detachable control unit and power cube
  • Robust: tolerates up to 90% rel. humidity
  • Hygienic design: easy cleaning
  • Features for automated processes
SKU: 107131 Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview



The Lab-Shaker LS-Z, just like its predecessor LS-X, is a sturdy benchtop shaker designed for continuous and maintenance-free operation. The LS-Z is part of a new 3-in-1 modular system to provide maximum flexibility to our customers. The shaker is the perfect starter model, e.g., for universities or start-ups. It can be used for cultivation of microbial, plant and animal cell cultures. Furthermore, the LS-Z is well suited for the integration into liquid handling systems (e.g., Tecan, Hamilton,…) and other automated laboratory processes.

  • Compact footprint
  • Flexible: detachable control unit and power cube
  • Robust: tolerates up to 90% rel. humidity
  • Hygienic design: easy cleaning
  • Features for automated processes

Specifications





Power consumption typical approx. 25W
Weight shaker 46 kg
Weight Power Cube 6.5 kg
Weight Controller 0.6 kg
Ambient temp. -20 up to 80°C
Ambient relative humidity up to 90 % (shaking unit)
Operating menu in DE, FR, IT, EN, ES
Interface standard CAN-Bus
Tray, size E (420 x 420mm)
EX (500 x 420mm)
F (800 x 420mm)
Loading maximum up to 25 kg
Setting, digital 1 rpm
Accuracy, absolute +/- 0.1 rpm
Timer 1 s – 999 h
Acceleration controlled
Active break adjustable
Stop on position adjustable
Mains Connection 220 – 240 V / 50 – 60 Hz
190 – 210 V / 50 – 60 Hz
110 – 120 V / 50 – 60 Hz
95 – 105 V / 50 – 60 Hz
Shaking motion orbital, Ø 12.5 mm* 20…500 rpm
orbital, Ø 25.0 mm* 20…400 rpm
orbital, Ø 50.0 mm* 20…300 rpm
Material stainless steel cover
