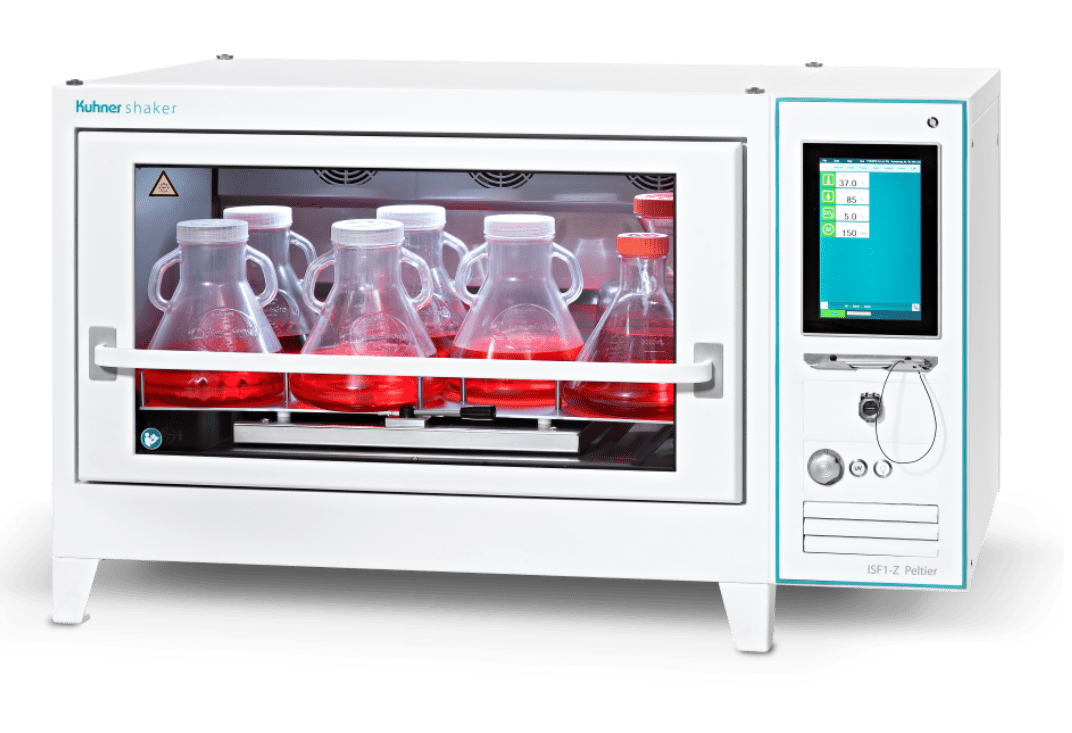

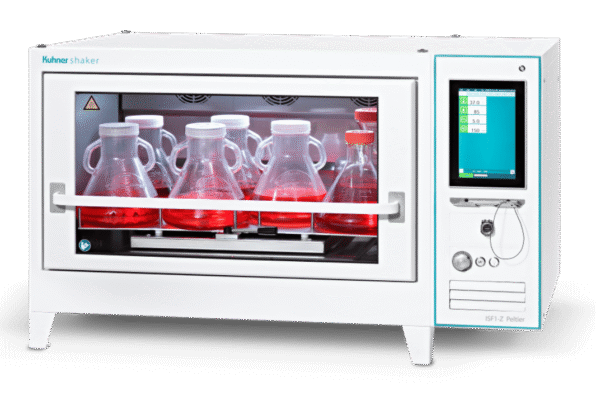

The ISF1-Z incubator shaker is suitable for applications in laboratories, research centers and production facilities. The ISF1-Z complies with GMP (good manufacturing practice) requirements and regulations. It offers a large shaking capacity with a small footprint and many features allowing straightforward, safe handling of any culture or product. The incubator shaker is applicable for microbial, plant, human and animal cell cultures.
Performance characteristics of ISF1-Z models
- Large shaking capacity with small footprint
- Hygienic design according to DIN EN ISO 14159
- Improved direct drive: stronger, higher shaking frequencies, very long lasting
- Up to three machines can be stacked without additional components: incubators ISF1-X/W and new ISF1-Z mixable in stack
- Flexible and retrofittable: all options and accessories applicable
- Fast, direct information through parallel and clear display of all process parameters
- Power consumption typical : Approx 220W
- Power consumption max. : approx 1000W
- Incubation gas volume : 378 L
- Illumination : LED
- Operation menu MMI : DE, FR, EN, IT, ES
- Operation menu Insight : EN
- Interface, standard : CAN-Bus
- Interface, optional : USB, Ethernet, digital, analogue
- Ambient temp : 10 - 35°C
- Cable feedthrough port : 40 mm
- Material incubation chamber : stainless steel
- Material outer chamber : painted stainless steel
- Useful height above shaker tray : 460 mm
- Door glass and frame
- Dimensions (L x D x H) : 1288 x 859 x 771mm
- Weight : 200 kg
- Power of standard motor (EM-60/160) : 70W / 140W
Kuhner Shaker Incubator Model ISF1-ZC Basic with CO2 (230V 50Hz)
Temperature Control
| Cooling: | No |
| Temp minimum: | RT +10°C |
| Temp. maximum: | 60°C |
| Setting, digital: | 0.1°C |
| Temp distribution at 37°C/85% r.H.: | < 0.20°C |
| Power of heating: | 800W (resistance) |
| Principle of temp sensor: | Pt-100 |
| Gas circulation: | 570 m3/h |
CO2 Control
| CO2 max: | 20% |
| CO2 min: | 0% |
| Setting, digital: | 0.1% |
| Accuracy absolute: | 0.40 at 5 % CO2 |
| Temperature range: | up to 60°C |
| CO2 supply: | max. 2 bar overpressure |
| Principle of sensor: | Infrared |
Shaking Control
| Motor: | direct drive |
| Shaking diameter: | 3/6/9/12.5/19/25/50/70mm (0 - 70 mm, stepless) |
| Shaking motion: | Orbital |
| Shaking freq range at 12.5 mm: | 0/20 - 500 rpm (700 HS***) |
| Shaking freq range at 25 mm: | 0/20 - 400 rpm (550 HS***) |
| Shaking freq range at 50 mm: | 0/20 - 300 rpm (400 HS***) |
| Shaking freq range at 70 mm: | 0/20 - 250 rpm (300 HS***) |
| Tray size max.: | F (800 x 420 mm) |
| Loading max.: | 25 kg (up to 60**) |
| Setting, digital: | 1 rpm |
| Accuracy absolute: | ± 0.5 rpm |
| Timer: | 1 s - 999 h |
| Acceleration: | controlled |
| Active brake: | adjustable |
| Stop on position: | Yes |
