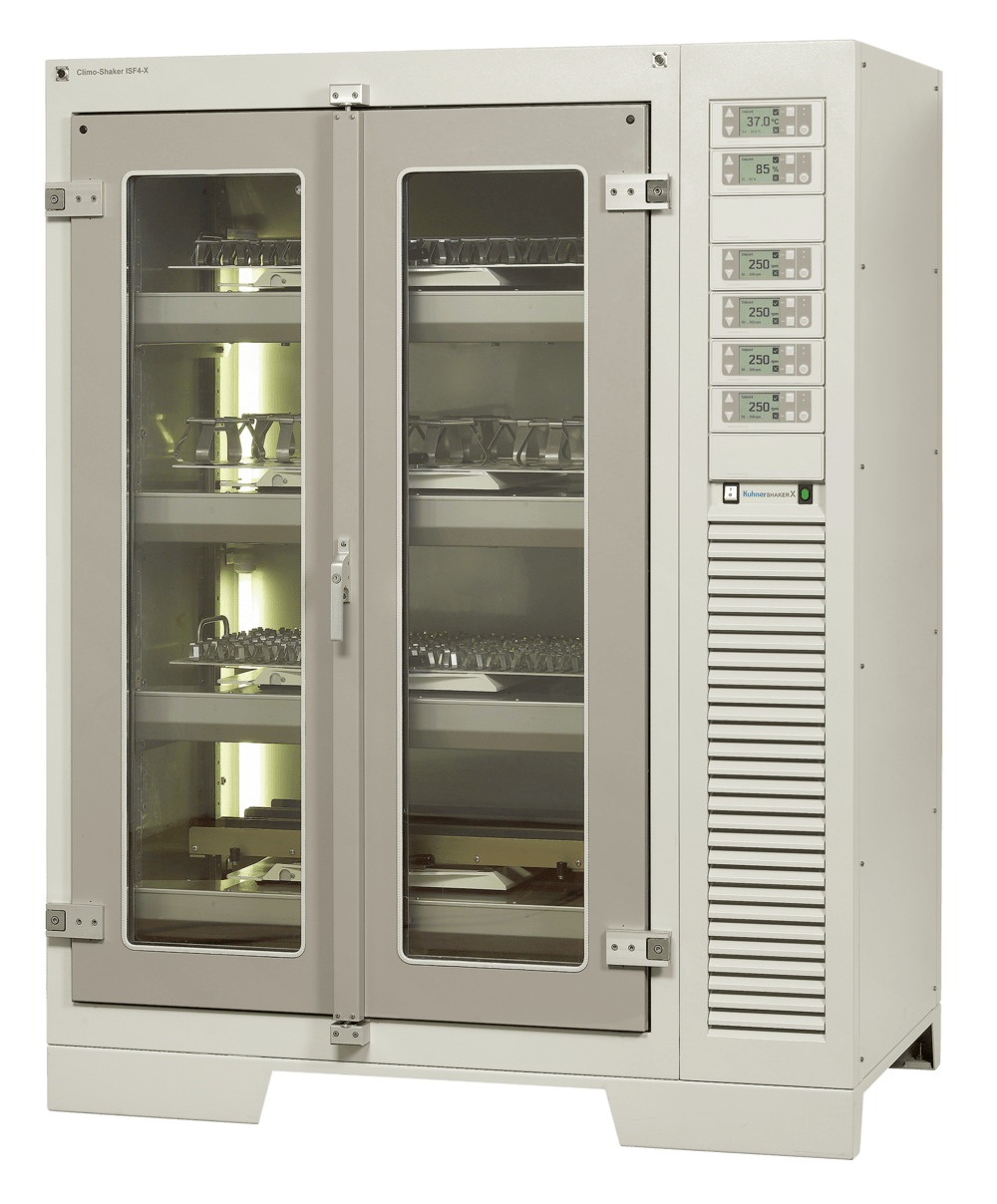

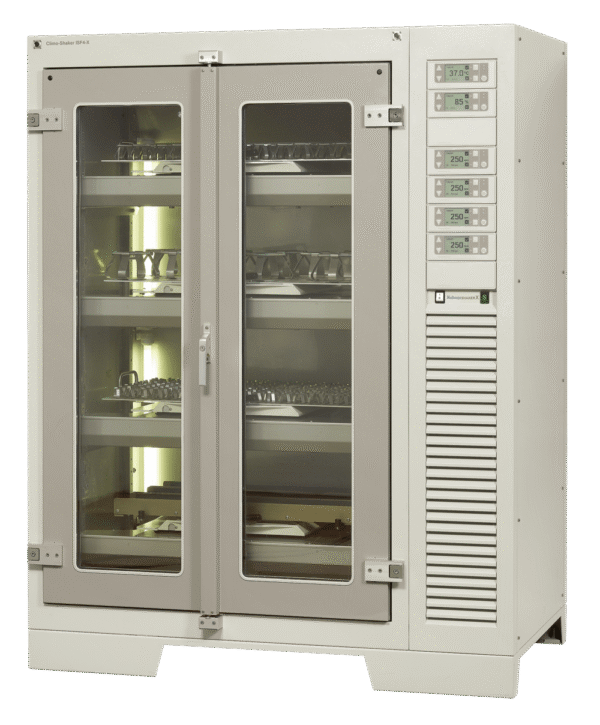

KUHNER Shaking Cabinet ISF4-X with humidity and CO2 Control (230V 50Hz)

$180,000.00



The Kuhner ISF4-X incubator shaker offers large shaking capacity with temperature, humidity and CO2 control all available. The shaker cabinet can incorporate four or even five independent shaking units which are height adjustable. The shaking diameter and speed of each unit can be individually selected. Standard diameters are 12.5, 25 and 50 mm. Other shaking diameters are possible.



  • All stainless steel interior
  • Large shaking capacity
  • Easy access to contents
  • Each shaking unit has its own direct drive
  • Door heating, with controlled humidity
SKU: SMX1603C Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview



The Kuhner ISF4-X incubator shaker offers large shaking capacity with temperature, humidity and CO2 control all available. The shaker cabinet can incorporate four or even five independent shaking units which are height adjustable. The shaking diameter and speed of each unit can be individually selected. Standard diameters are 12.5, 25 and 50 mm. Other shaking diameters are possible.



  • All stainless steel interior
  • Large shaking capacity
  • Easy access to contents
  • Each shaking unit has its own direct drive
  • Door heating, with controlled humidity

Specifications





Technical Data Refrigerator : Yes
Humidity control : Yes
Temperature minimum : ambient – 10°C
Temperature maximum : 60°C
Humidity maximum : 85% r.h.
Power consumption : < 2600W
Humidity Control Max at 25 … 55 °C : 85% R.H.
Setting, digital : 1% R.H.
Accurate, absolute : ± 2% R.H
Principal of sensor : capacitive
Waterbath heater : 300W
Water refill : automatic – Door heater : 220W
Machine Volume (empty) : 800 litres
Weight (without SF-X) : approx 520 kg
Illumination : 2 Fluor. lamps
Operation menu in : de, fr, en, it, es
Interface : CAN-bus – Interface, optional : USB, Ethernet, digital, analogue
Ambient temperature : 10 °C up to 35 °C
Outer dimensions WxDxH : 1494 x 960 x 1916 mm
Temperature Control Setting, digital : 0.1 °C
Accuracy, absolute : ±0.30°C (37°C)
Principle of sensor : Pt-100
Power of heating : 1000W
Power of cooling : 250 … 420 W
Air circulation : 700 m3/h CO2
Principle of sensor : Infrared, NDIR
Measuring range : 0…20% CO2
Setting, digital : 0.1% – Accuracy, absolute (including non-linearity, calibration, uncertainty and repeatability) : ± 0.40% at 5% C02
