Technical Specifications |
C100 | C157 | C330 |
| External (Dimensions H x W x D mm) | 582 x 684 x 620 | 790 x 684 x 620 | 1417 x 684 x 620 |
| Internal (Dimensions H x W x D mm) | 365 x 550 x 500 | 573 x 550 x 500 | 1200 x 550 x 500 |
| Chamber Capacity (litres) | 100 | 157 | 330 |
| Shelves Included | 2 | 4 | 6 |
| Power Rating (Watts) | 240 (maximum) | 280 (maximum) | 440 (maximum) |
| Weight (kg) | 54 | 70 | 107 |
| Temperature Range | At least 5°C above ambient to +60°C | ||
| Temperature Control | Typically ± 0.1°C @ 37°C | ||
| Temperature Variation | Typically better than ± 0.2°C @ 37°C | ||
| Temperature Recovery (approx) | 2 minutes | 3 minutes | 4 minutes |

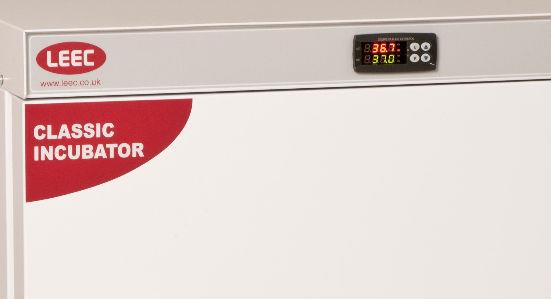

Construction - The LEEC Classic Incubator Range has fully
sealed chambers manufactured from polished stainless
steel with rounded corners for easy cleaning. The outer
cabinet is manufactured from stainless steel, and has a
tough powder coat paint finish. This gives the Classic
Incubator exceptional corrosion resistance. An inner glass
viewing door closes positively onto a silicone gasket and
allows a clear view of the chamber contents without
disturbing the internal atmosphere. The outer door has a
magnetic gasket providing a good seal. A rear access port
allows temperature monitoring probes to be inserted safely
into the chamber.
Heating - New profiled resistive wire heating elements and
high performance insulation ensure optimum temperature
control. All models have gentle fan assisted air circulation.
This ensures even temperature distribution throughout the
chamber. Fast temperature recovery keeps heat loss to a
minimum after door opening.
Temperature Control - The latest in microprocessor
temperature controller technology gives the Classic
Incubator range excellent temperature stability to within
0.1°C. Fuzzy Logic and Auto Tune features allow the
controller to adapt to each chamber size, optimising their
performance and accuracy. The controller is simple to use,
with target and actual temperatures being displayed in real
time on a two-colour digital display.
Safety - Over and under temperature alarm thresholds can
be programmed into the controller. An independent safety
cut out disconnects the heating elements should an over
temperature condition occur. The controller can be
password protected too, stopping any unauthorised
adjustments to the Set Point and alarm thresholds.
