Overview

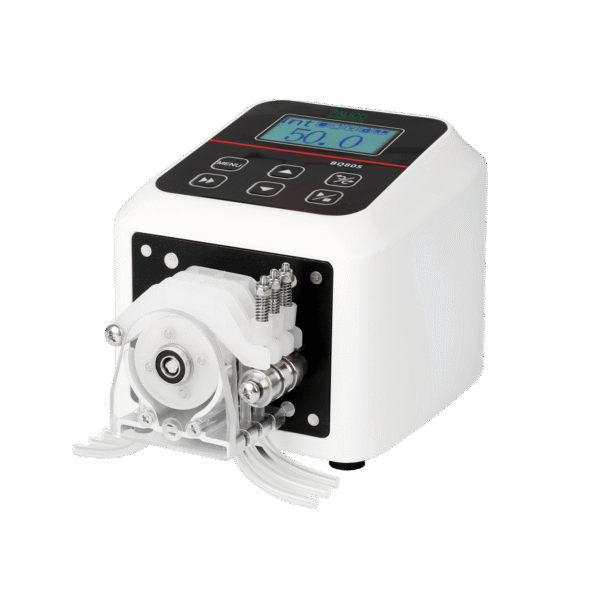

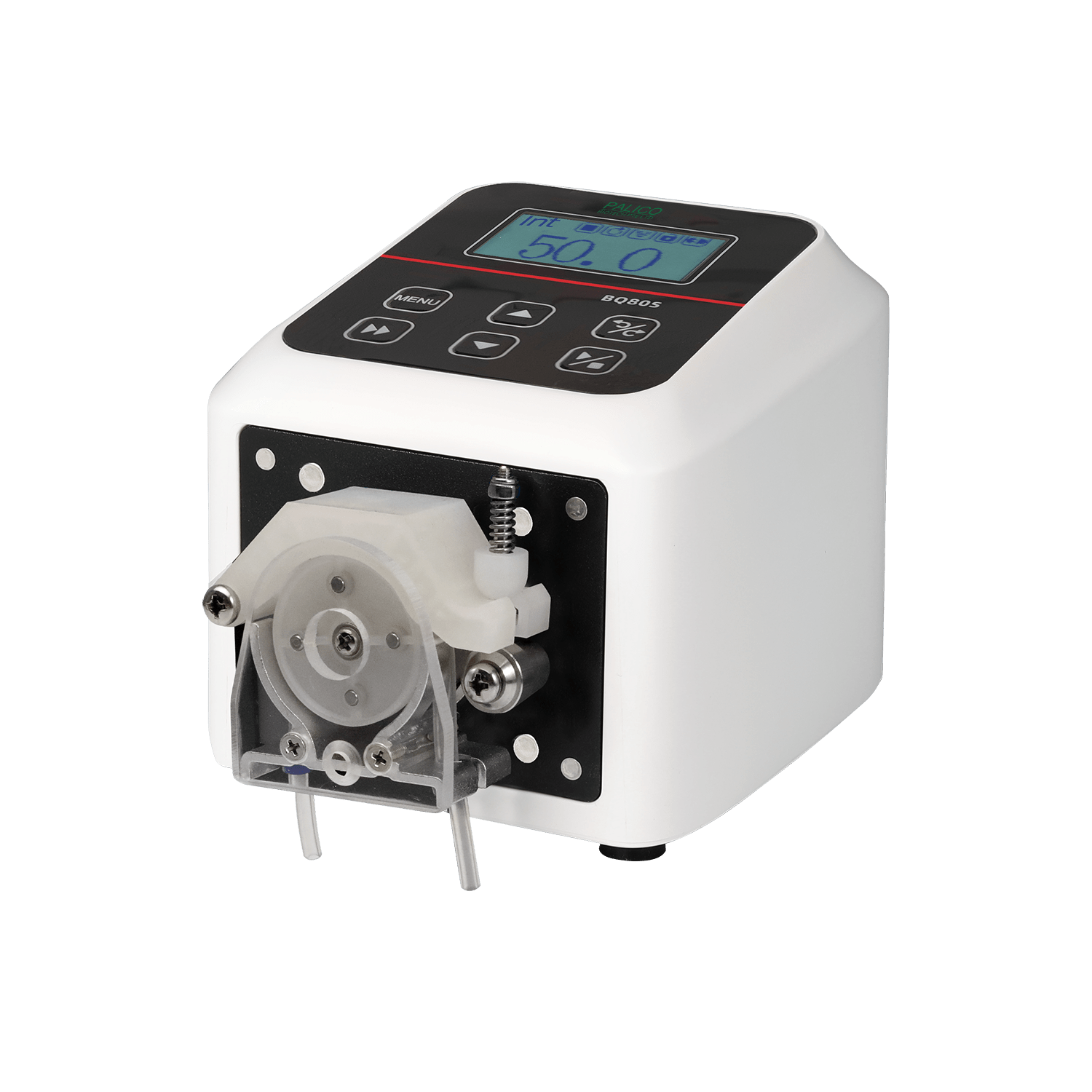

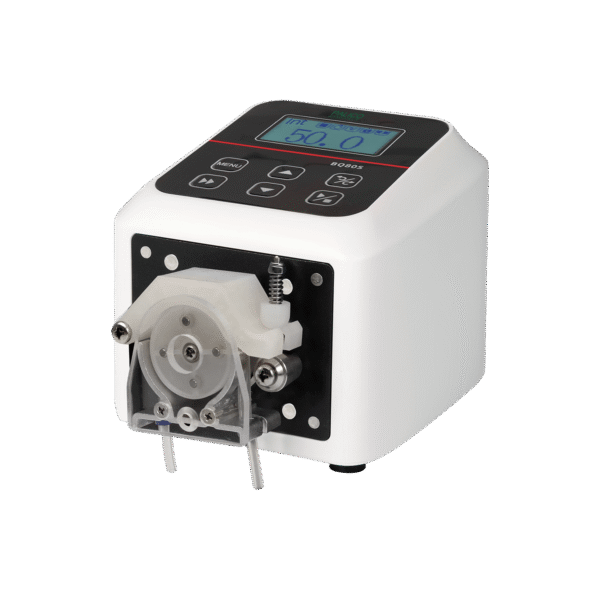

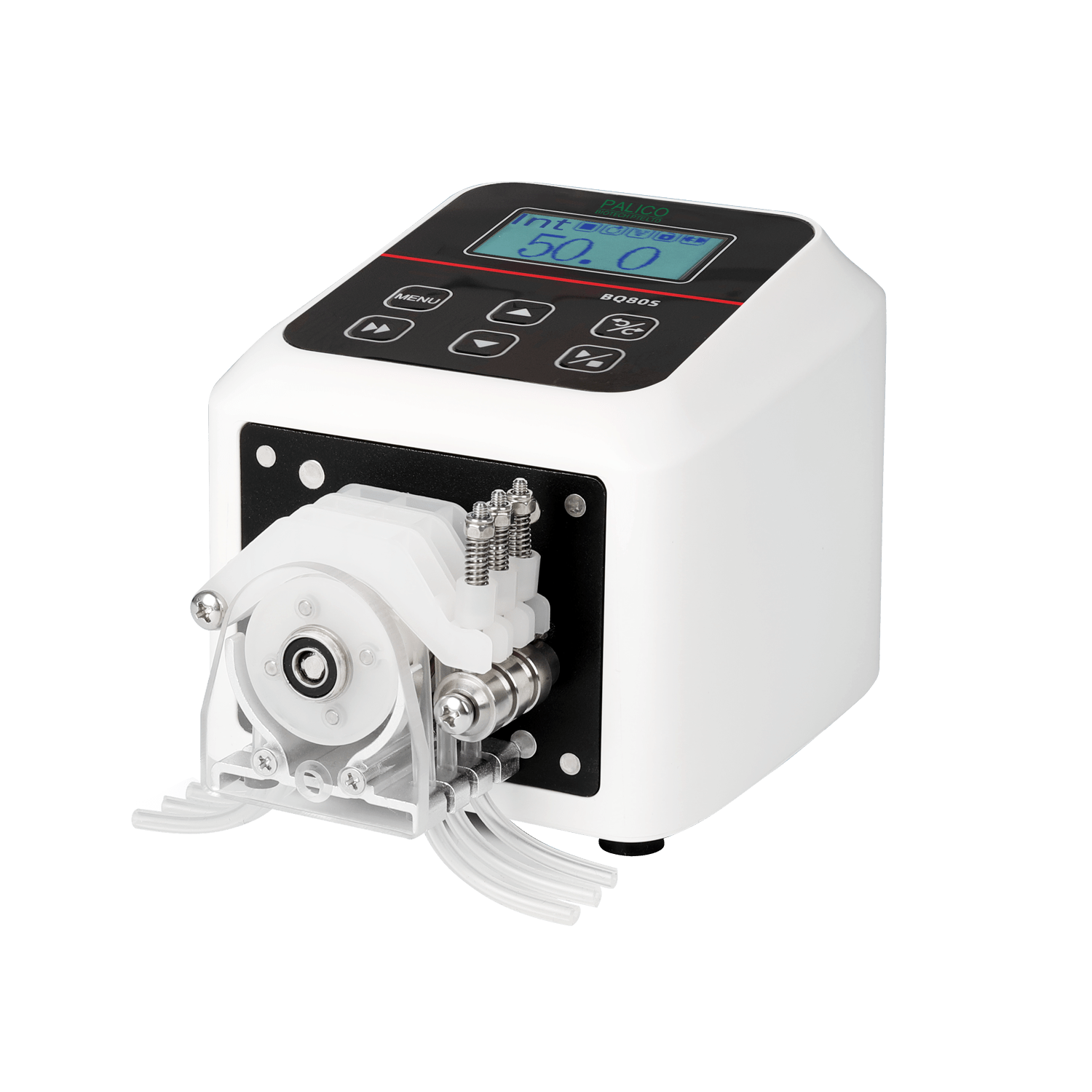

BQ80S is used for precise transmission of small flow liquids and high precision dispensing, making it suitable for instrument matching and laboratory use.
Available with 3 pump heads (for 3 connections)
Specifications
- Flow Rate: 0.0035~34mL/min
- Speed Range: 0.1~80 rpm
- Speed Resolution: 0.1rpm
- Speed Accuracy: <±0.5%
- Working Time: 0.1~999 Seconds/ Minutes /Hours /Days
- Dispensing interval time: 0.1~999 Seconds/ Minutes /Hours /Days
- Dispensing time: 1~999,“0” Infinite loops
- External control: (1) Start/Stop: passive contact, external control input level (5~24V) (2) Forward/Reverse: passive contact, external control input level (5~24V) (3)
- Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set
- Communication interface: RS485 communication interface, MODBUS protocol is available,DB15 external control interface
- Power supply: AC100-240V, 50/60Hz (power adapter included)
- Power consumption: <10W
- Noise: 60DB
- Working environment: Temperature 0 ~ 40℃, relative humidity<80%
- Dimension(LXWLH): DW10-1:152×112×107mm 、DW10-3:164×112×107mm
- IP grade: IP31
