| Parameter | BPC500H (Single Cabinet) | BPC500DH (Dual Cabinet) | BPC500FH (Four Cabinets) |
| Number of Cavities / Doors | 1 cavity / 1 door | 2 cavities / 2 doors | 4 cavities / 4 doors |
| Exterior Dimensions (W × D × H) | 900 × 800 × 1940 mm | 1070 × 720 × 1940 mm | |
| Interior Dimensions (W × D × H) | 816 × 578 × 1122 mm (single cavity) | (753 × 578 × 555) × 2 mm (per cavity × 2) | (686 × 499 × 388) × 4 mm (per cavity × 4) |
| Volume | 529 L | 483 L | 531 L |
| Default Lighting Layers | 4 (single cavity) | 2 per cavity × 2 cavities | 1 per cavity × 4 cavities |
| Temperature Range | 3 – 45 °C (Option: −10 – 45 °C) | ||
| Humidity Range | 50 – 90 %RH (Option: 30 – 90 %RH) | ||
| Light Intensity Control | 0 – 100% independently per cavity (0 – 1600 µmol/m²/s) | ||
| Spectrum Options | Single: 450nm / 660nm / 735nm; 3-spectrum; 4-spectrum; 18-spectrum | ||
| Control Interface | 10" touchscreen + smartphone APP (PID) | ||
| Energy Saving | Patented heat recovery; >50% saving vs. comparable units | ||
| Primary Use Case | General plant growth, multi-crop research | Simultaneous dual light-regime experiments | Up to 4 concurrent light/photoperiod conditions |
Jiupo 500L Plant Growth Chamber

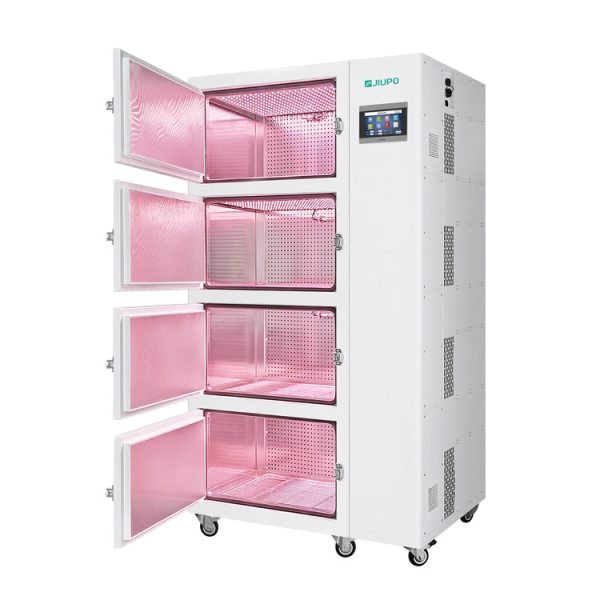

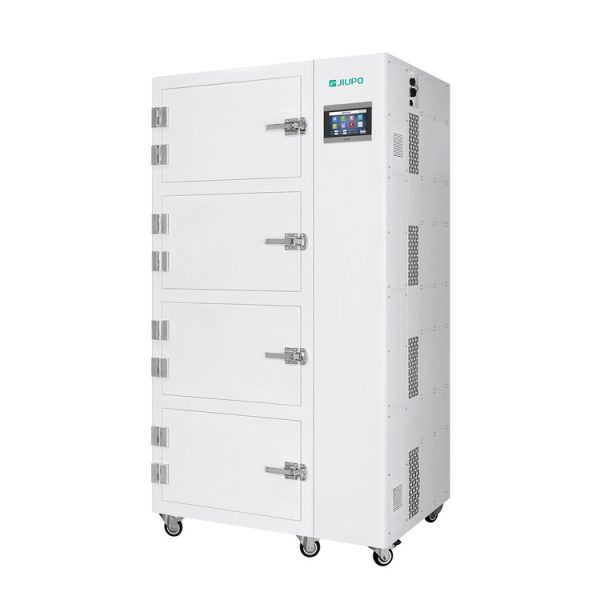

The BPC500 series is Jiupo's 500 L class reach-in plant growth chamber family, available in three internal configurations to match different experimental needs. The BPC500H is a single-cavity, single-door standard chamber suited to general plant growth research across a wide range of crops. The BPC500DH splits the same external footprint into two independent compartments — each with its own door and lighting layer — enabling simultaneous experiments at two different light regimes within a single unit, ideal for light quality and photoperiod studies. The BPC500FH extends this further into four independent compartments, each with its own door and dedicated lighting layer, maximising the number of concurrent conditions testable in one cabinet. All three share the same temperature range (3–45°C; −10–45°C optional), humidity range (50–90%RH; 30–90%RH optional), patented heat-recovery system, PID control with 10" touchscreen, and smartphone app remote management
