| Technical Specification Parameter | Model: AFI-C600R-2P-B12 | Model: AFI-C600R-2P-B6 |
| Model Reference | AFI-C600R-2P-B12 | AFI-C600R-2P-B6 |
| Nominal Voltage (+/- 10%) | 230V Single phase | 230V Single phase |
| Frequency | 50 Hz | 50 Hz |
| Max. Power Consumption | 4000 W (1300 W compressor) | 4000 W (1300 W compressor) |
| Low Voltage Directive (2014/35/UE) | ✓ Compliant | ✓ Compliant |
| EMC Directive (2014/30/UE) | ✓ Compliant | ✓ Compliant |
| WEEE / ROHS Directives | ✓ Compliant | ✓ Compliant |
| Safety Standards (IEC/EN61010-1 / -2-020) | ✓ Compliant | ✓ Compliant |
| Risk Management (ISO 14971 / 9001 / 13485) | ✓ Compliant | ✓ Compliant |
| Max. Capacity (Swing-out) | 6 x 2000 mL (12 Liters) | 6 x 950 mL |
| Max. Speed (Swing-out) | 4300 rpm | 4900 rpm |
| Max. RCF (Swing-out) | 5767 x g | 7301 x g |
| Max. Speed (Angular Rotor) | 6000 rpm | 6000 rpm |
| Max. RCF (Angular Rotor) | 5836 x g | 5836 x g |
| Min / Max Speed Range | 300 / 4400 rpm | 300 / 4400 rpm |
| Speed Setting Step / Accuracy | 10 rpm / ±0.5% | 10 rpm / ±0.5% |
| Footprint Dimensions (H x W x D) | 95 x 81 x 96 cm | 95 x 81 x 96 cm |
| Package Dimensions (H x W x D) | 114 x 89 x 109 cm | 114 x 89 x 109 cm |
| Opened Lid Height | 181 cm | 181 cm |
| Net Weight (Unpacked) | 346 kg | 346 kg |
| Gross Weight (Packed) | 352 kg | 352 kg |
| User Interface Display | 5.7'' LCD Touchscreen | 5.7'' LCD Touchscreen |
| Commands / Control Method | Buttons & Touch / Microprocessor | Buttons & Touch / Microprocessor |
| Rotor Recognition & Safety | Automatic Recognition | Automatic Recognition |
| Imbalance Detection Threshold | 50g in opposite loading | 50g in opposite loading |
| Accumulated Centrifugal Effect | ✓ My IDEM function | ✓ My IDEM function |
| Cycle Duration Range | 10 s to 99h:59min:59s & Pulse | 10 s to 99h:59min:59s & Pulse |
| Programs Number | 99 + routine + precool + warmup | 99 + routine + precool + warmup |
| Acceleration & Braking Slopes | 10 / 10 profiles + Brakeless mode | 10 / 10 profiles + Brakeless mode |
| Cooling System / Refrigerant | R452A (CFC free) | R452A (CFC free) |
| Temperature Setting Range | -20°C to +40°C | -20°C to +40°C |
| Temperature Accuracy / Function | ±1°C / Precool & Warmup available | ±1°C / Precool & Warmup available |
| Centrifugation Chamber Material | Stainless Steel (Inox) | Stainless Steel (Inox) |
| Max. Sample Density | 1.2 g/cm³ | 1.2 g/cm³ |
| Max. Noise Level | ≤ 61 dB(A) | ≤ 61 dB(A) |
| Max. Heat Dissipation | 13,640 BTU/h | 13,640 BTU/h |

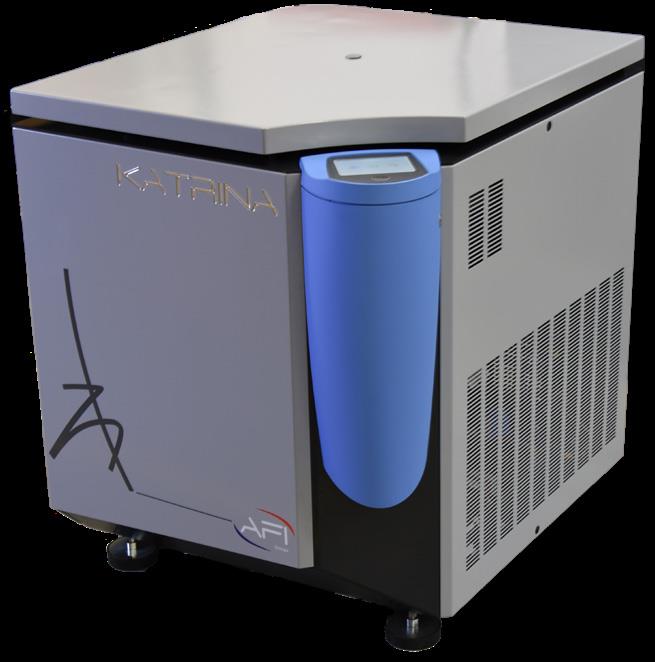

AFI KATRINA Refrigerated Centrifuge
- Designed and manufactured by French experts as a reliable, high-performance alternative for modern transfusion centers.
- Fully compliant with internal and international standards for precise plasma, buffy coat, and red blood cell separation.
- Features the unique 'IDEM' application coupled with Power Factor Control (PFC) technology to deliver consistent cycle results despite variations in partial loading, rotor changes, or device age.
- Equipped with a brilliant 5.7" touchscreen compatible with gloved hands, grouping all critical parameters in a single, intuitive dashboard view.
- Provides comprehensive user access levels and password protection to prevent unauthorized modification of validated protocols.
Built using custom in-house motors, control boards, and efficient cooling systems with a proprietary suspension system for low noise emissions (≤ 61 dB(A)).
