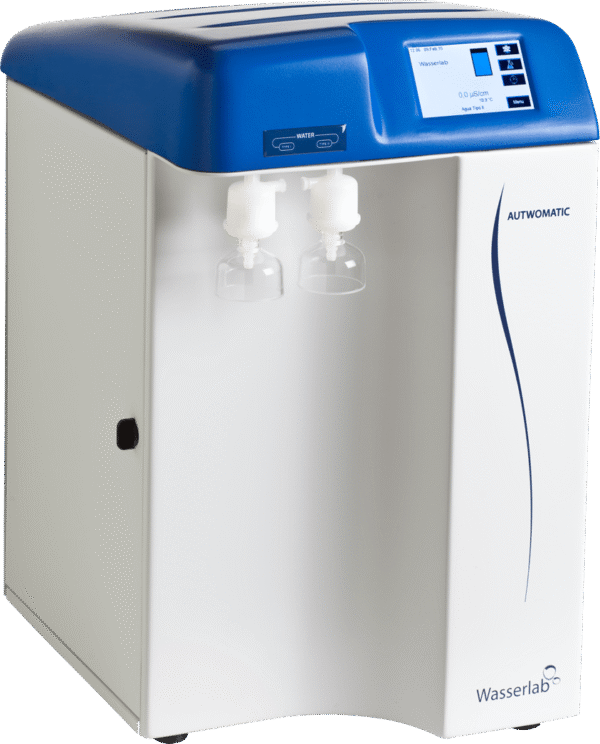

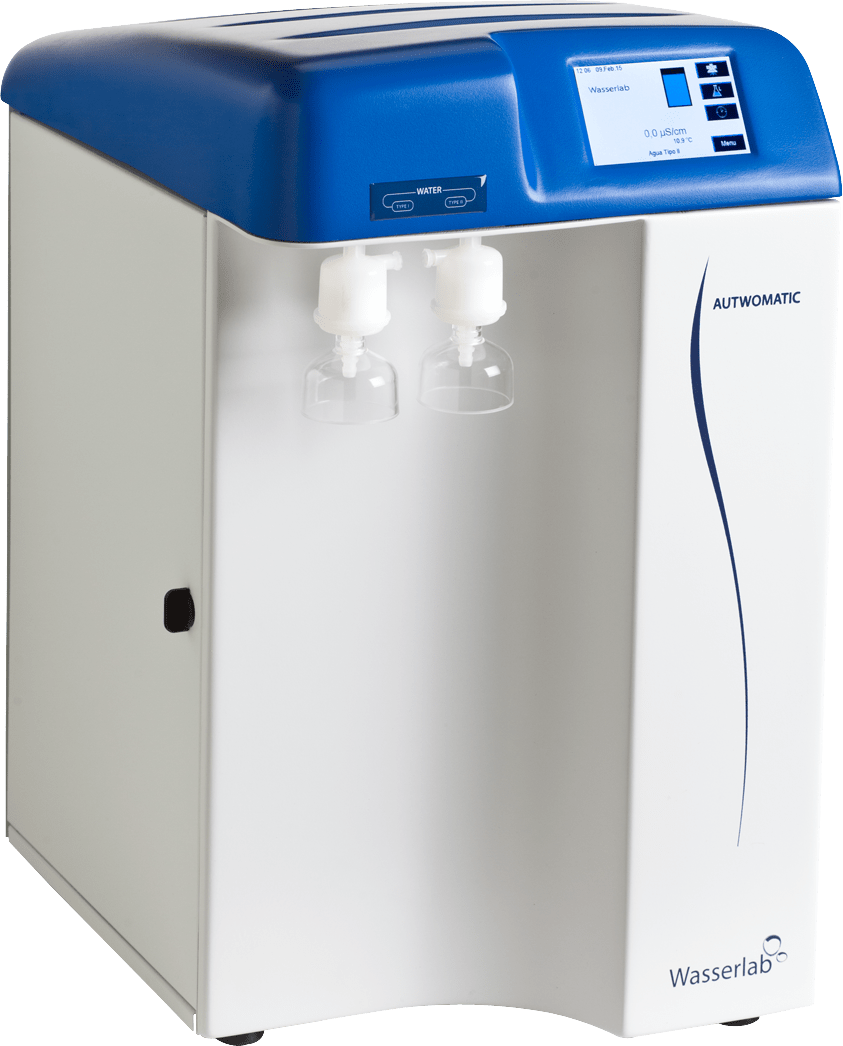

The range of equipment Autwomatic Plus 1+2, supplier RO water Type III, Purified water Type II and Ultrapure water Type I (according to ASTM standards), of the highest quality, from three independent dispensers, including the highest technoologies for production and quality control of purified water.

Osmotic Water (Type III)
Pretreatment: System of particle filters
and activated carbon that remove
particles (≥5 µm), chlorine, colloids and
organic material.
Reverse Osmosis: Reverse osmosis
module of high effciency and
performance, that provides with a
production rate of 3/5/10 liters per
hour (depending on model), removing
95-98% of dissolved inorganic salts,>
99% dissolved organic material
(PM> 100 dalton) and 99.95% of
microorganisms and particles.
Accumulation of Osmotic Water: The
water Permeate reverse osmosis
module collects it in a pressurized,
sealed opaque tank that keeps it out of
contact with light and air, preserving it
from possible contamination.
Available pressurized 10, 30 and 50
liters tanks.

Purifed Water (Type II)
Deionization: A bed of ion exchange
resins of high effciency, removes the
few ions from water permeate reverse
osmosis module. The result is a water
conductivity of ≤1 µS/cm
Final Filter 0,22 µm: Encapsulated
fllter that ensures a bacterial count
<0.01 cfu/ml
Ultrapure Water

(Type I)
Ultrapurification Module: The
Type II Water produced in the
deionization module, ows through
a Ultrapurification module, thus
reducing trace levels of ionic
contaminants.

Foto-Oxidation Module: Reduces
organic contamination at trace level,
emitting ultraviolet radiation at
254 nm with germicidal action and
185 nm radiation capable of
generating hydroxyl free radicals,
which oxidize the organic
compounds dissolved in water, into
carbonate and bicarbonate ions.
These ions will be retained by the
Refining Ion module, removing
traces of ions in ultrapure water and
thus obtaining a resistivity of
18.2 MΩ·cm.

Polishing Module: Reduction of
organic matter (TOC) removing
traces of ions in Ultrapure Water, to
obtain a resistivity of 18,2 MΩ.cm.

Ultrafiltration Module
(Autwomatic Plus 1+2 GRUF
Version): a hydrophyllic membrane
of encapsulated hollow ber, with a
large filtering surface, eliminates the
pyrogens and nucleases in the water.
Final Filter 0,22 µm: Encapsulated
filter that ensures a bacterial count
<0.01 cfu/ml
