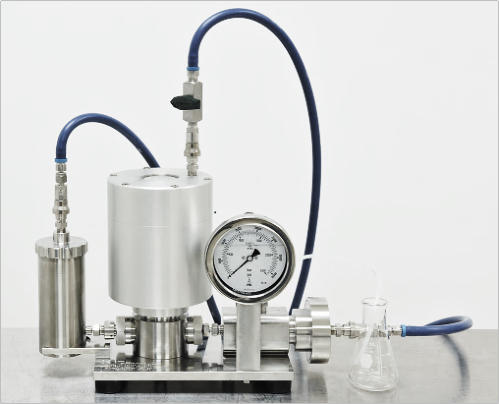

EMULSIFLEX-C5 High Pressure Homogenizer

$40,000.00

  • Air-powered Air-powered
  • Dynamic homogenizing valve with pneumatic control
  • Pressure adjustable from 500 – 30,000psi
  • Maximum flow-through capacity 1 to 5L/h (0.27 to1.3gph)
  • Minimum sample size 7 mL
  • Steam-In-Place sterilizable (SIP)
  • Autoclavable
  • Includes sample cylinder, all necessary tubing, hoses, fittings, plugs, wrenches and tools
  • Instrument is ready to use and easy to install
  • Dimensions : 430 (L) x 160 (W) x 320 (H)
  • Weight : 25 kg
SKU: Emulsiflex-C5 Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

  • Air-powered Air-powered
  • Dynamic homogenizing valve with pneumatic control
  • Pressure adjustable from 500 – 30,000psi
  • Maximum flow-through capacity 1 to 5L/h (0.27 to1.3gph)
  • Minimum sample size 7 mL
  • Steam-In-Place sterilizable (SIP)
  • Autoclavable
  • Includes sample cylinder, all necessary tubing, hoses, fittings, plugs, wrenches and tools
  • Instrument is ready to use and easy to install
  • Dimensions : 430 (L) x 160 (W) x 320 (H)
  • Weight : 25 kg

Specifications

Technical Specifications

Capacity 1 to 5L/h, depending on pressure and air supply
Pressure up to 30,000 psi (2,000 bar)
Minimum Sample Volume 7ml
Power electrical power not required
Air 7 cfm (200 L/min) @ 120 psi (8 bar) recommended
Dimensions (W x D x H) 17 in x 6.3 in x 12.6 in (430 mm x 160 mm x 320 mm)
Weight 55 lbs (25 KG)
