Potentiostat

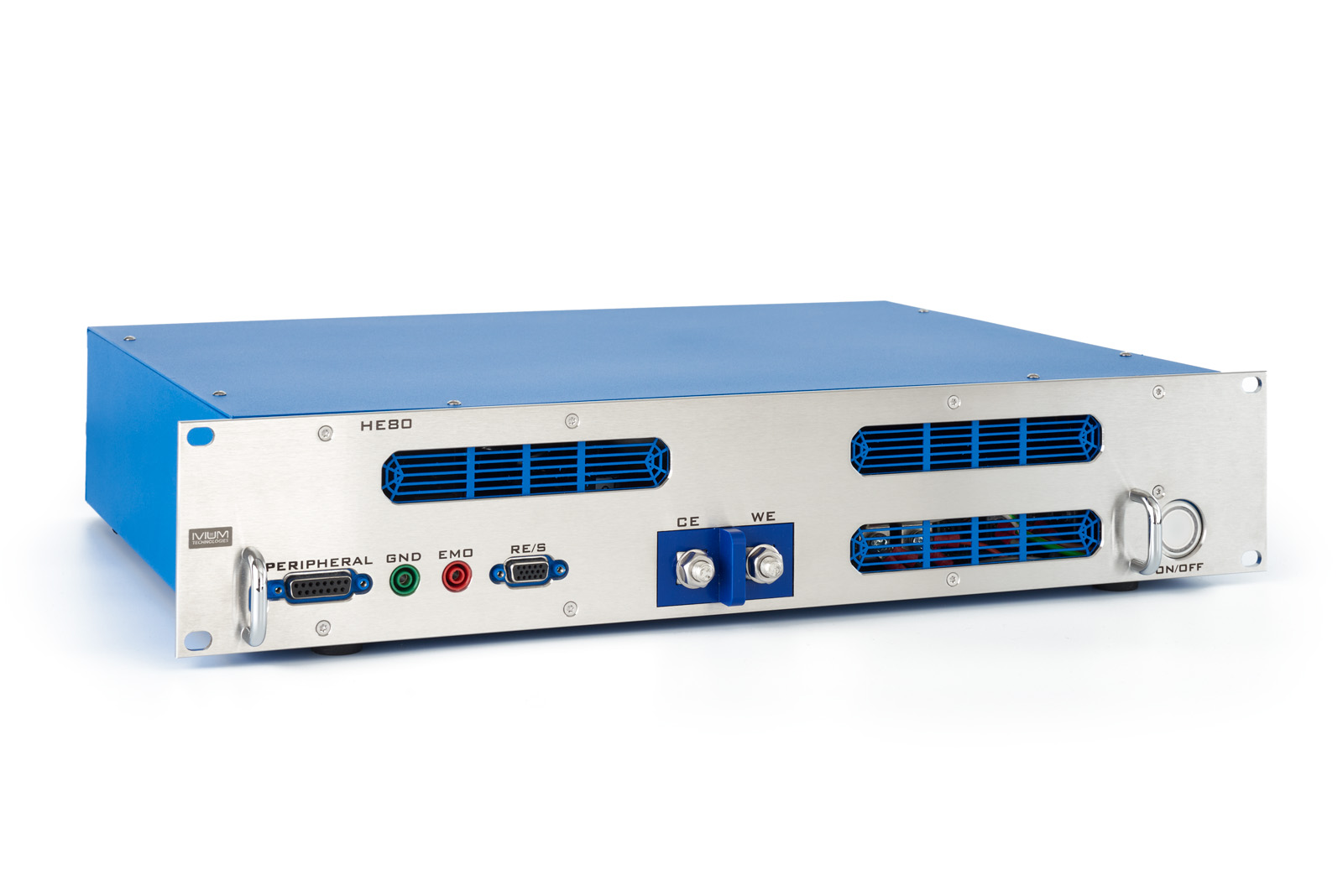

The HE80-1Q is a single-quadrant potentiostat with integrated FRA/EIS. It is a unipolar device capable of +0.5 to +20V, and 0 to +80A, and has been specifically designed with electrolysers/hydrogen generation, battery charging, and electrodeposition in mind.

Key specifications

• Scan range: +0.5 to +20V/0 to +80A
• 4 Electrode connection: WE/CE by M8 screw terminals, RE/S by 4mm bananas
• Max. acquisition rate: 300,000 points/s
• Size: 44 x 37 x 8.8cm
• Weight: 15kg

Hardware

• Real time data up to 500 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory (1M sample data buffer)
• Minimum interval time: 3.33µs (0.125µs resolution)

Software:

The HE80-1Q is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software package allows instrument control, data management and analysis, etc. IviumSoft can also interface with and be controlled from LabVIEW^TM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.
