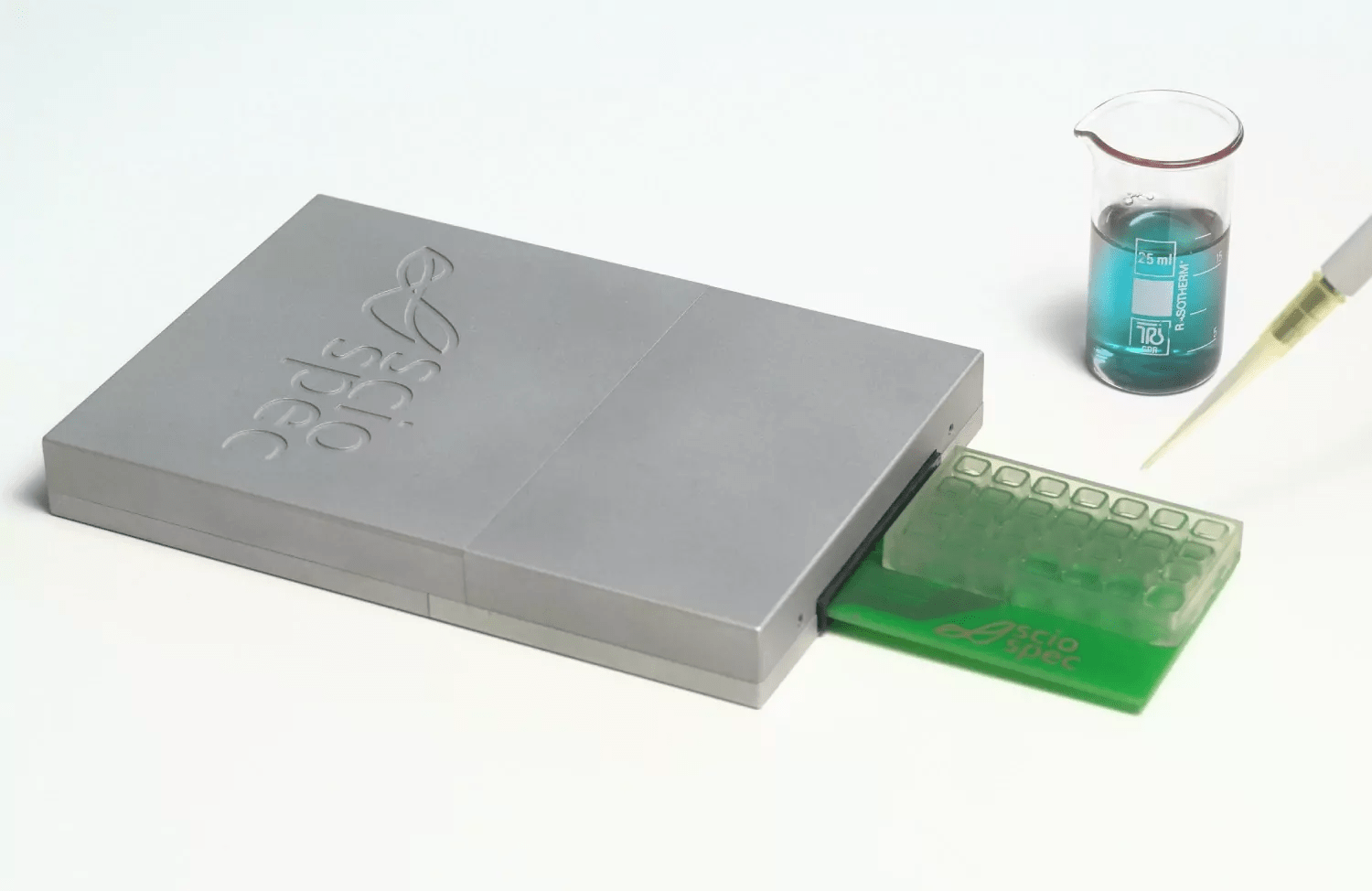

ScioSpec CSX-64

All-in-one solution for chip-based multichannel experiments. With its highly integrated slide connector interface it’s the perfect fit for biosensor applications. Or just add a cable adapter to be even more flexible. The CSX-64 comes with 8 banks with eight parallel measuring channels each.

  • Flexible multichannel capabilities:
    • 8 banks with individual analog frontends including voltage and current measurement and separately assignable ranges
    • 2, 3 or 4 electrode configuration for impedance measurement
    • Highly flexible channel mapping – Multiplexing stage for 8:4 any-to-any assignment of 8 contacts per bank:
      • any port of any bank can be any of the functions in a 2, 3 or 4 electrode impedance configuration (Counter, Reference, Working Sense or Work)
    • Bank to bank interoperability allows for advanced channel mappings (e.g. one current path with multiple potential measurements, one current injection with multiple working electrodes, etc…)
    • Compatible with typical impedance tomography (EIT) channel mappings
  • Potentiostat mode and electrochemical techniques
  • Complex impedance measurements:
    • true complex impedance measurement
    • tightly synchronized data acquisition block for truly simultaneous sampling for 8 parallel impedance measurements
    • Frequency range from DC … 250 kHz (optional: up to 1 MHz)
    • Impedance ranges from Ohm … Gohm
    • Voltage range up to +/-10V
    • Current ranges nA…mA
  • Optional: complex signal generator (ramp, pulse, masking, sine, arbitrary) with 20 bit low speed DAC, DDS based sinusoid signal source and 16bit high speed DAC
  • Measurement ports available on highly integrated slide connector interface:
    • Ideally suited for multichannel biosensor applications
    • 98 pin 1mm pitch edge-card connector (MEC1-150-02-F-D-EM2)
    • Easily adaptable to your application through cable adapters or chip carriers
    • Ask us for custom designed adapters or design your own
