Ivium D-Module, 2 x 1A/20V/250kHz, 2 Channels
Module

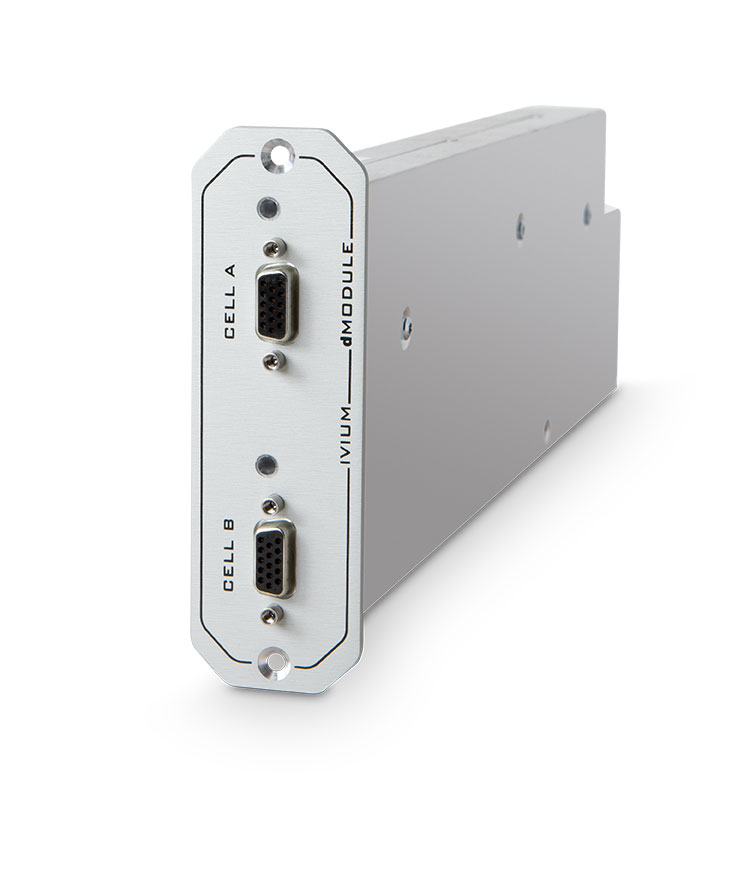

The dModule 1A/20V is a dual channel module for the Ivium-n-Stat which allows ±1A / ±20V compliance (±10V applied) and simultaneous impedance measurements on each channel. IviumSoft allows control of separate channels or all channels simultaneously with a synchronized start. The module is encased in a protective housing for easy handling, and users can upgrade the number of channels in the Ivium-n-Stat in a simple plug and play manner.
Safety
The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.
Expandibility
Each channel can be expanded with various modules, such as a power booster, multiplexer, etc. See our compatibility table for reference.
Hardware
- Automatic current range selection over all available current ranges
- Automatic variable noise filter and potentiostat/galvanostat stability settings
- Real time data display up to 500 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
- Applicable scanrates: 1µV/s to 10,000 V/s
- Minimum interval time: 3.33µs (0.125µs resolution)
- Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
- User selectable floating operation
Channel Configurations
- 2 x ±1A / ±20V
Overview
Description & features of the product
Specification
Specification of the product
Product Enquiry
Enquire more about our product
Reviews
Reviews about the product
Overview
Module
The dModule 1A/20V is a dual channel module for the Ivium-n-Stat which allows ±1A / ±20V compliance (±10V applied) and simultaneous impedance measurements on each channel. IviumSoft allows control of separate channels or all channels simultaneously with a synchronized start. The module is encased in a protective housing for easy handling, and users can upgrade the number of channels in the Ivium-n-Stat in a simple plug and play manner.
Safety
The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.
Expandibility
Each channel can be expanded with various modules, such as a power booster, multiplexer, etc. See our compatibility table for reference.
Hardware
- Automatic current range selection over all available current ranges
- Automatic variable noise filter and potentiostat/galvanostat stability settings
- Real time data display up to 500 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
- Applicable scanrates: 1µV/s to 10,000 V/s
- Minimum interval time: 3.33µs (0.125µs resolution)
- Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
- User selectable floating operation
Channel Configurations
- 2 x ±1A / ±20V
Specifications
Channel Performance
| Number of channels in module | 2 |
| Current compliance | ±1A |
| Maximum output voltage | ±20V |
| Maximum applied voltage | ±10V |
| 4 Electrodes | WE, CE, RE and S (and GND) with 4mm banana plugs |
| Potentiostat Bandwidth | >500 kHz |
| User selectable response filters | High Speed, Standard, and High Stability |
| Programmable response filter | 1 MHz , 100 kHz, 10kHz, 1 kHz , 10 Hz |
| Signal acquisition | dual channel 18 bit ADC, 300,000 samples/s |
Potentiostat
| Applied potential range | ±10 V, 0.08mV res |
| Applied potential accuracy | 0.2%, or 2 mV |
| Current ranges | ±100pA to ±1A |
| Measured current resolution | 0.003% of current range, minimum 3fA – Measured current accuracy : 20pA + 0.025% of FSR |
Galvanostat
| Applied current resolution | 0.008% of applied current range |
| Applied current accuracy | 0.2% |
| Galvanostatic current ranges | ±10nA to ±1A |
| Potential ranges | ±1mV, ±4mV, ±10mV, ±40mV, ±100mV, ±400mV, ±1V, ±4V, ±10V |
| Measured poential accuracy | 0.2%, or 2mV |
Impedance Analyzer
| Frequency range | 10JHz to 250 kHz (optional 10JHz to 1MHz) |
| Amplitude | 0.015mV to 2.0 V, or 0.03% to 100% of current range |
| DC offset | 16 bit dc offset subtraction, and 2 dc-decoupling filters |
Electrometer
| Input impedance | >1000 Gohm //<10pF |
| Input bias current | <20pA |
| Bandwidth | >5 MHz |
Special functions / Dimensions
| Ohmic drop compensation | 2V/current range, 16 bit resolution, bandwidth 40kHz |
| Size : w x d x h | 3 x 35 x 13 cm |
| Weight | 0.7 kg |
| PC requirements | Windows 8/10/11, with free USB port |
