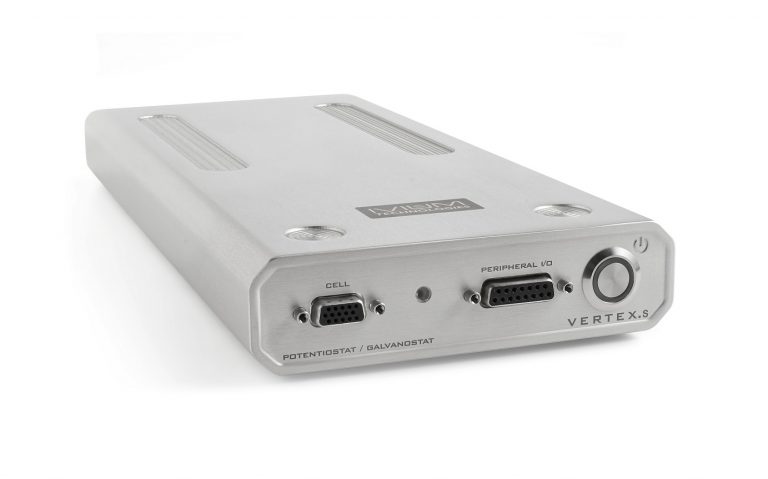

Ivium Vertex Entry Level Potentiostat with software and 1 MHz Impedance Analyzer (2A/20V)

$23,000.00

Instrument

The Ivium Vertex Entry Level Potentiostat with software and 1 MHz Impedance Analyzer (2A/20V) is a versatile entry-level potentiostat which has ±2A / ±20V compliance and optional integrated impedance analyser up to 1MHz.

Automation

The Vertex.20V has a peripheral port to allow external interfacing and compatibility with several Ivium modules (see expandability).

Expandability

The Vertex can optionally be expanded with a True Linear Scan module, Bipotentiostat, and/or FRA/EIS capability. Next to that the Vertex is compatible with other Ivium options and modules, such as the HiMUX and CIM, and several Ivium boosters for higher power requirements.

Hardware

  • Automatic current range selection over all available current ranges
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and peripheral signals
  • Real time data display up to 500 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 10µs (0.125µs resolution)
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
  • User selectable floating operation

Software

The Vertex is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software package allows instrument control, data management and analysis, peripheral instrument control, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.

SKU: VERTEX.20V.EIS Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

Instrument

The Ivium Vertex Entry Level Potentiostat with software and 1 MHz Impedance Analyzer (2A/20V) is a versatile entry-level potentiostat which has ±2A / ±20V compliance and optional integrated impedance analyser up to 1MHz.

Automation

The Vertex.20V has a peripheral port to allow external interfacing and compatibility with several Ivium modules (see expandability).

Expandability

The Vertex can optionally be expanded with a True Linear Scan module, Bipotentiostat, and/or FRA/EIS capability. Next to that the Vertex is compatible with other Ivium options and modules, such as the HiMUX and CIM, and several Ivium boosters for higher power requirements.

Hardware

  • Automatic current range selection over all available current ranges
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and peripheral signals
  • Real time data display up to 500 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 10µs (0.125µs resolution)
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
  • User selectable floating operation

Software

The Vertex is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software package allows instrument control, data management and analysis, peripheral instrument control, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.

Specifications

Specifications

Current compliance ±2A
Max output voltage ± 20 V
4 Electrodes WE, CE, RE, S
Potentiostat Bandwidth > 500 KHz
Stability settings High Speed, Standard, and High Stability
Programmable response filter 1 MHz , 100 kHz, 10 kHz , 1 kHz , 10 Hz
Signal acquisition Dual channel 16 bit ADC, 100.000 samples/sec

Potentiostat

Applied potential range ±10 V, at 0.333 mV resolution
Additional (applied) potential range ± 20 V, at 0.667 mV resolution
Applied potential accuracy 0.2 % or 2 mV
Current ranges ±10nA to ±100mA in 8 decades
Additional current ranges  ±1A
Measured current resolution 0.015 % of current range, minimum 15 pA
Measured currency accuracy 0.2%

Galvanostat

Applied current resolution 0.033 % of applied current range
Applied current accuracy 0.2 %
Potential ranges ±10 mV, ±100 mV, ±1 V, ±10 V
Measured potential resolution 0.003 % of potential range, minimum 0.4µV
Measured potential accuracy 0.2%, or 2mV

Impedance Analyzer

Frequency range 10µHz to 1 MHz
Amplitude 0.015 mV to 1.0 V, or 0.03 % to 100% of current range
DC offset 16 bit dc offset subtraction and 2 dc-decoupling filters

Special Functions / Electrometer

Othmic drop compensation 2 V/current range, 16 bits resolution
Input impedance >1000Gohm //<10 pF
Bandwidth >5 MHz

Peripheral Connections

2 analog in ±10V, 16 bits res., bandwidth 40kHz
1 analog out ±10V, 16 bits resolution
1 Digital input, 3 Digital outputs 0 to +5V
1-out and E-out analog monitor for cell current and potential
AC-out  ±0.5V sinewave, 10JHz-1MHz with var. att
Channel-X and Channel-Y inputs ±4V: to record impedance from peripheral devices

Environment

Power requirements 100-240 V, 50-60 Hz, 2A
 Interfacing USB
Size w x d x h 13 x 27 x 4 cm
Weight 2 kg
PC requirements Windows 7/8/10, with free USB port
