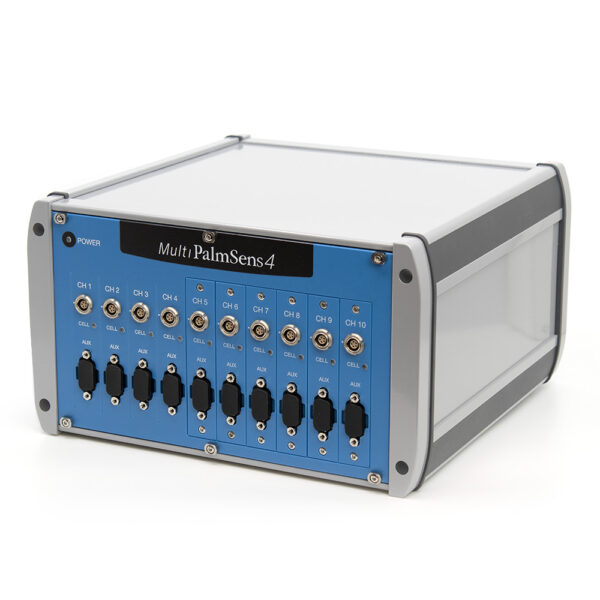

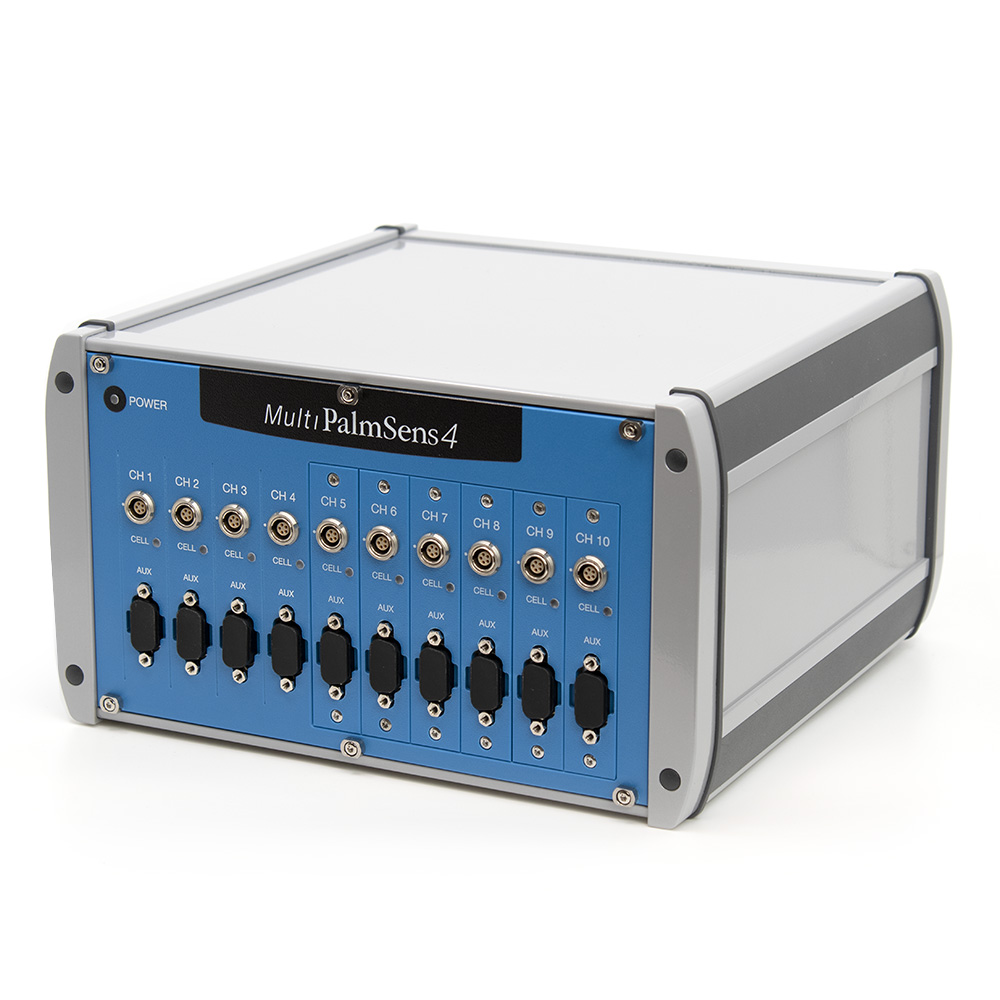

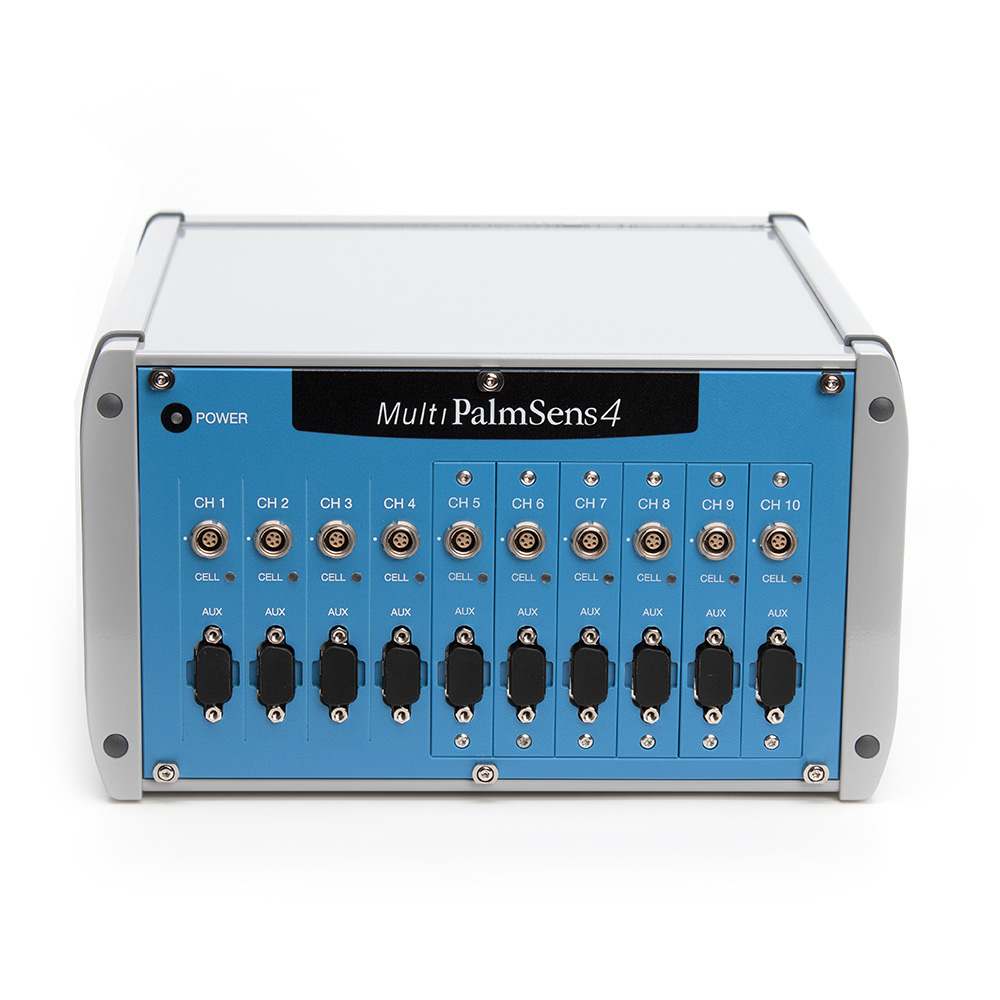

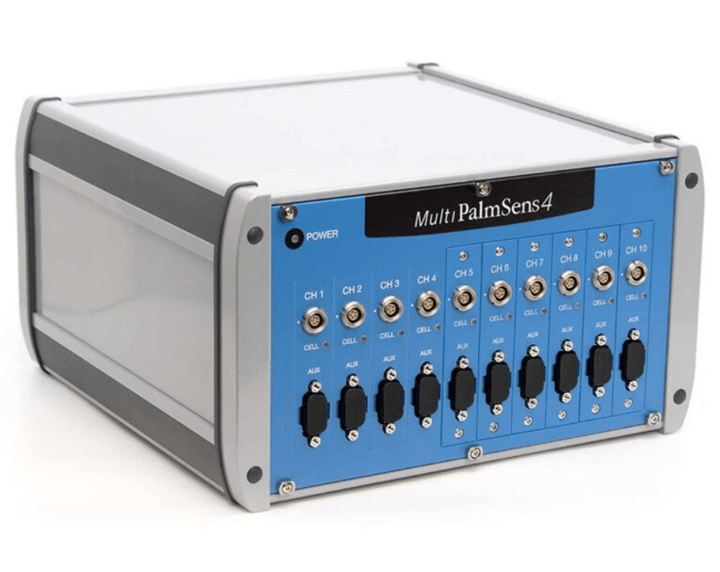

Palmsens Multi-channel Potentiostat / Galvanostat / Impedance Analyzer

$9,000.00

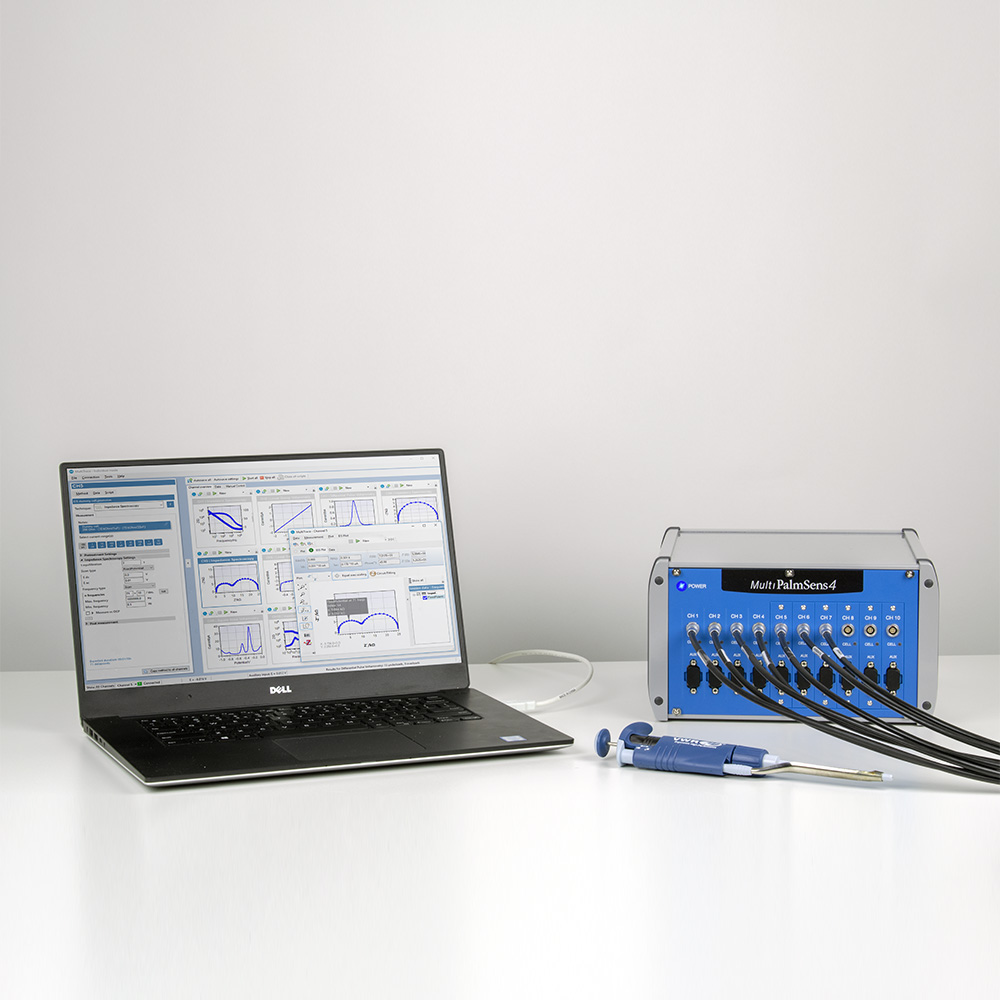

The MultiPalmSens4 is a flexible multi-channel potentiostat, galvanostat and impedance analyzer which you can fully tailor to your requirements and budget. The MultiTrace software allows for using each channel individually or simultaneously or running a sequence of automated tasks on each channel. Each channel provides an additional auxiliary port for controlling peripherals or monitoring temperature or other analog signals.

By enabling synchronization of channels and adjusting the setup of your cables, you can use the MultiPalmSens4 as a polypotentiostat. This means you can use multiple working electrodes, one counter and one reference electrode in the same cell at the same time. Your working electrodes all perform the same measurement.



Includes:

  • 8GB on-board storage per channel
  • MultiTrace for Windows
  • Sensor cables with croc clips and a Dummy Cell
  • AC adaptor and USB cable
  • Manual and USB flash drive
  • Carrying bag



Each channel can be configured with:

  • ±5 V or ±10 V maximum potential range
  • EIS/FRA with maximum frequency of 100 kHz or 1 MHz
  • Bipotentiostat module for second WE
  • iR-Compensation
  • Galvanic isolation
SKU: MultiPalmSens4 Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

The MultiPalmSens4 is a flexible multi-channel potentiostat, galvanostat and impedance analyzer which you can fully tailor to your requirements and budget. The MultiTrace software allows for using each channel individually or simultaneously or running a sequence of automated tasks on each channel. Each channel provides an additional auxiliary port for controlling peripherals or monitoring temperature or other analog signals.

By enabling synchronization of channels and adjusting the setup of your cables, you can use the MultiPalmSens4 as a polypotentiostat. This means you can use multiple working electrodes, one counter and one reference electrode in the same cell at the same time. Your working electrodes all perform the same measurement.



Includes:

  • 8GB on-board storage per channel
  • MultiTrace for Windows
  • Sensor cables with croc clips and a Dummy Cell
  • AC adaptor and USB cable
  • Manual and USB flash drive
  • Carrying bag



Each channel can be configured with:

  • ±5 V or ±10 V maximum potential range
  • EIS/FRA with maximum frequency of 100 kHz or 1 MHz
  • Bipotentiostat module for second WE
  • iR-Compensation
  • Galvanic isolation

Specifications

For each channel:

configuration PS4.F#.05 / PS4.F#.10
dc-potential range ±5 V –  ±10 V
compliance voltage ±10 V
maximum current ±30 mA (typical)
max.acquisition rate 150,000 data points/s



Potentiostat (controlled potential mode)

applied dc-potential resolution 76.3 µV
applied potential accuracy ≤ 0.1% ±1 mV offset
Current ranges 100 pA to 10 mA (9 ranges)
current accuracy < 0.2% of current
±10 pA ±0.1% of range
measured current resolution 0.005 % of current range (18-bit 5 fA on 100 pA range) 0.0025% of 10 mA range



Galvanostat (controlled current mode)

current ranges 1 nA to 10 mA (8 ranges)
applied dc-current ±6 times applied current range
applied dc-current resolution 0.0076% of applied current range (<10 mA)
0.0038% of 10 mA range
applied dc-current accuracy < 0.2% of current
±10 pA ±0.1% of range
potential ranges 10 mV, 100 mV, 1 V
measured dc-potential resolution 78.13 μV at ±10 V
7.813 μV at ±1 V
0.7813 μV at ±0.1 V
measured dc-potential accuracy ≤ 0.05% or ±1 mV (for |E| < ±9 V)
≤ 0.2% (for |E| ≥ ±9 V)



Special functions / Dimensions

housing 15 x 25 x 25 cm3
weight +/- 4 kg
temperature range 0 ºC to + 50 ºC
power supply External 12V AC/DC adapter
communication USB
internal storage space 8 GB per channel
or +/- 800000 measurements incl. method info (assuming 200 data points per measurement)
