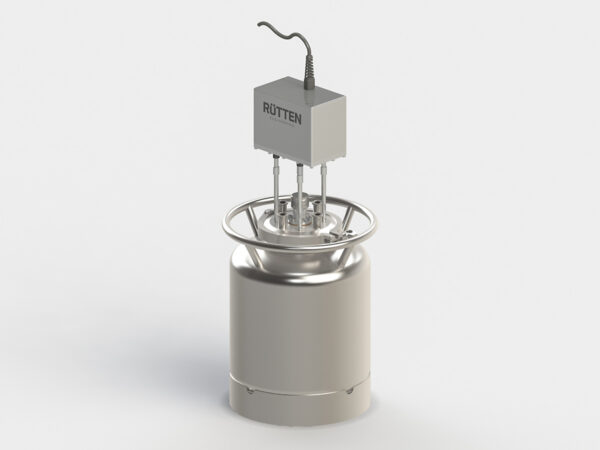

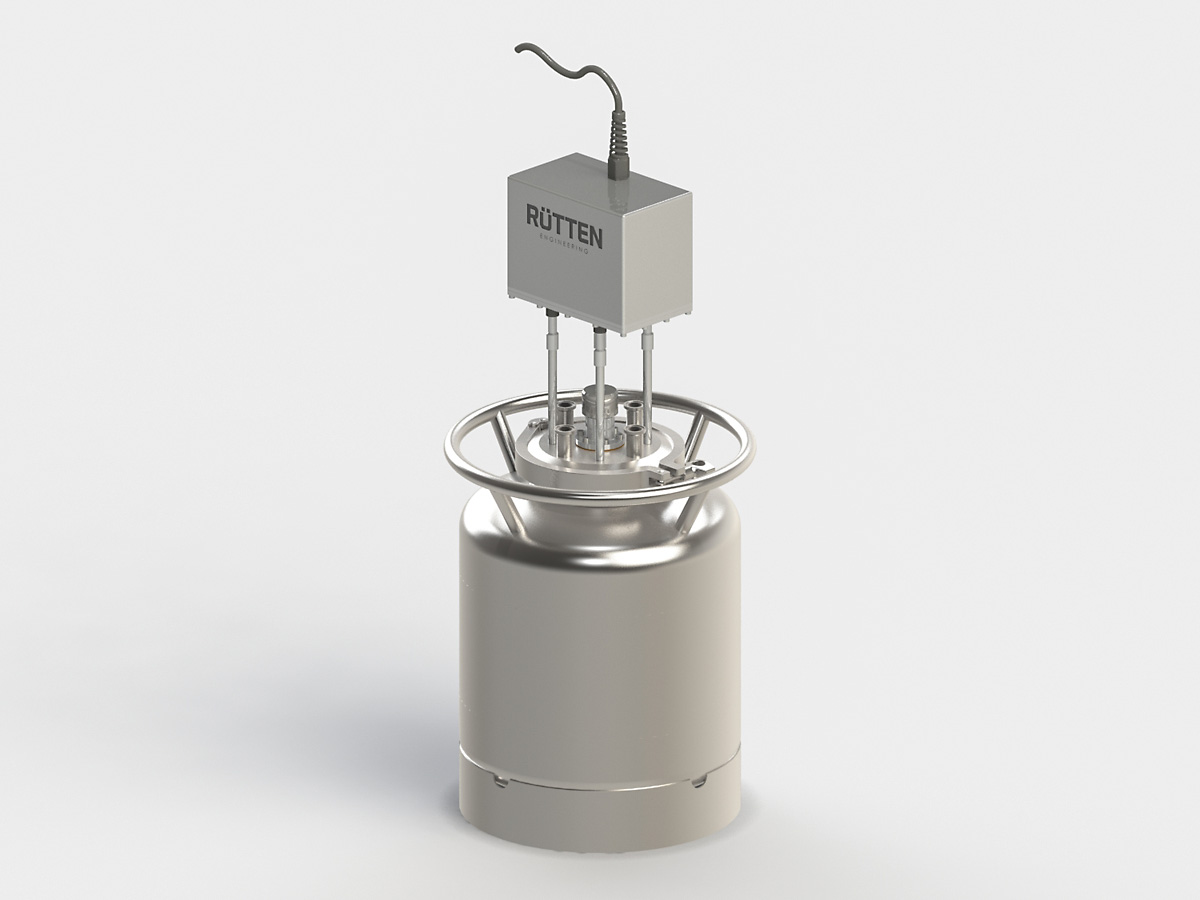

Rutten Vibromixer(TM) R1



A shaft connected to the vibrator transmits its force to a perforated mixing plate fixed at a shaft end. As the plate vibrates up and down, liquid jets are formed by the conical holes in the mixing plate. The result is a gentle and effective axial mixing.

The vibrating shaft is perfectly sealed with a simple teflon/silicon membrane. There are no rotating parts or mechanical seals in the system that could generate any particles. As all parts with product contact are directly exposed to the product, the system is easy to clean.

Vibromixers are suitable to be used under pressure or vacuum or atmospheric pressure for mixing of low viscosity fluids, suspensions of solids in liquids, gas-liquid mixing and emulsification of immiscible liquids. An additional application is breaking up crystalline structures and obtain a defined particle size.

  • Effective axial mixing
  • 300 % more energy efficient
  • No mechanical seal, no lubricants
  • Dimensional scale-up
  • No particle shedding
  • Stirrer in one piece—Easy to clean
SKU: Vibromixer R1 Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview



A shaft connected to the vibrator transmits its force to a perforated mixing plate fixed at a shaft end. As the plate vibrates up and down, liquid jets are formed by the conical holes in the mixing plate. The result is a gentle and effective axial mixing.

The vibrating shaft is perfectly sealed with a simple teflon/silicon membrane. There are no rotating parts or mechanical seals in the system that could generate any particles. As all parts with product contact are directly exposed to the product, the system is easy to clean.

Vibromixers are suitable to be used under pressure or vacuum or atmospheric pressure for mixing of low viscosity fluids, suspensions of solids in liquids, gas-liquid mixing and emulsification of immiscible liquids. An additional application is breaking up crystalline structures and obtain a defined particle size.

  • Effective axial mixing
  • 300 % more energy efficient
  • No mechanical seal, no lubricants
  • Dimensional scale-up
  • No particle shedding
  • Stirrer in one piece—Easy to clean

Specifications





Mixing direction Upflow | Downflow
Stirrer shaft length Application specific
Process connection TC connectors for filling vessels |head plate with additionnal ports DN 150 |DN200
Vibration amplitude 60 Hz (230 V 1 Ph, 2A) (mm) 0 to 2.0 (0 to 0.08)
Weight (KG) 4.6 (10)
Operating pressure (bar) -1 to 2
Material stirrer AISI 316L, ground Ra < 0.3, electropolished
Special alloys upon request
Material sterile sealing unit Reinforced Silicone + PTFE
Material motor housing AISI 304 in hygienic design
