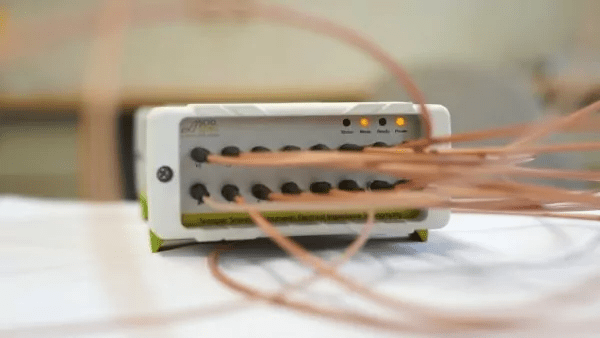

ScioSpec EIT16

The EIT16 is designed for measurements for electrical impedance tomography or general multi-port impedance measurement applications. True parallel measurements and tightly synchronized switching allows for fast frame rates.

  • 16 dual role electrode connections serving both as voltage measurement and current injection ports
  • Pseudo-differential current source for excitation signals up to 10 mA
  • Tightly synchronized data acquisition block for  truly simultaneous sampling of all sixteen channels
  • Fast switching ultra-low leakage reed relay injection switch matrix for selection of any combination of 2 out of 16 channels for positive and negative injection ports
  • Sciospec SineFit algorithm for fast and precise signal extraction
  • Frequency range from 100 Hz … 1 MHz
  • Spectral measurements with frequency sweeps with up to 128 frequencies
  • Current excitation from 100 nA … 10 mA peak amplitude
  • Frame rates up to 100 fps
  • Software with ready to go imaging algorithms
  • Fully customizable – just ask us
Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

The EIT16 is designed for measurements for electrical impedance tomography or general multi-port impedance measurement applications. True parallel measurements and tightly synchronized switching allows for fast frame rates.

  • 16 dual role electrode connections serving both as voltage measurement and current injection ports
  • Pseudo-differential current source for excitation signals up to 10 mA
  • Tightly synchronized data acquisition block for  truly simultaneous sampling of all sixteen channels
  • Fast switching ultra-low leakage reed relay injection switch matrix for selection of any combination of 2 out of 16 channels for positive and negative injection ports
  • Sciospec SineFit algorithm for fast and precise signal extraction
  • Frequency range from 100 Hz … 1 MHz
  • Spectral measurements with frequency sweeps with up to 128 frequencies
  • Current excitation from 100 nA … 10 mA peak amplitude
  • Frame rates up to 100 fps
  • Software with ready to go imaging algorithms
  • Fully customizable – just ask us
