ScioSpec EIT32/62/128+

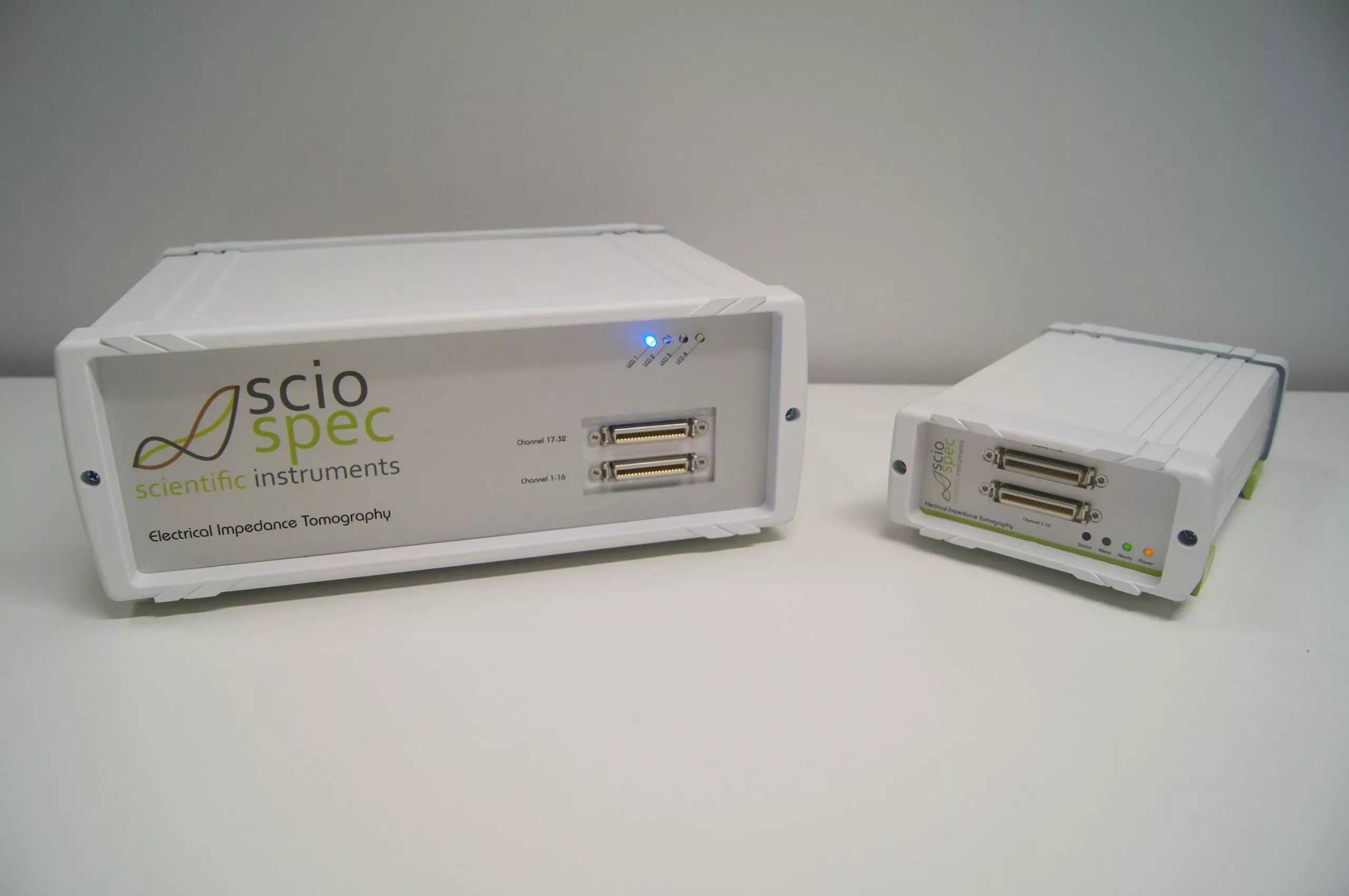

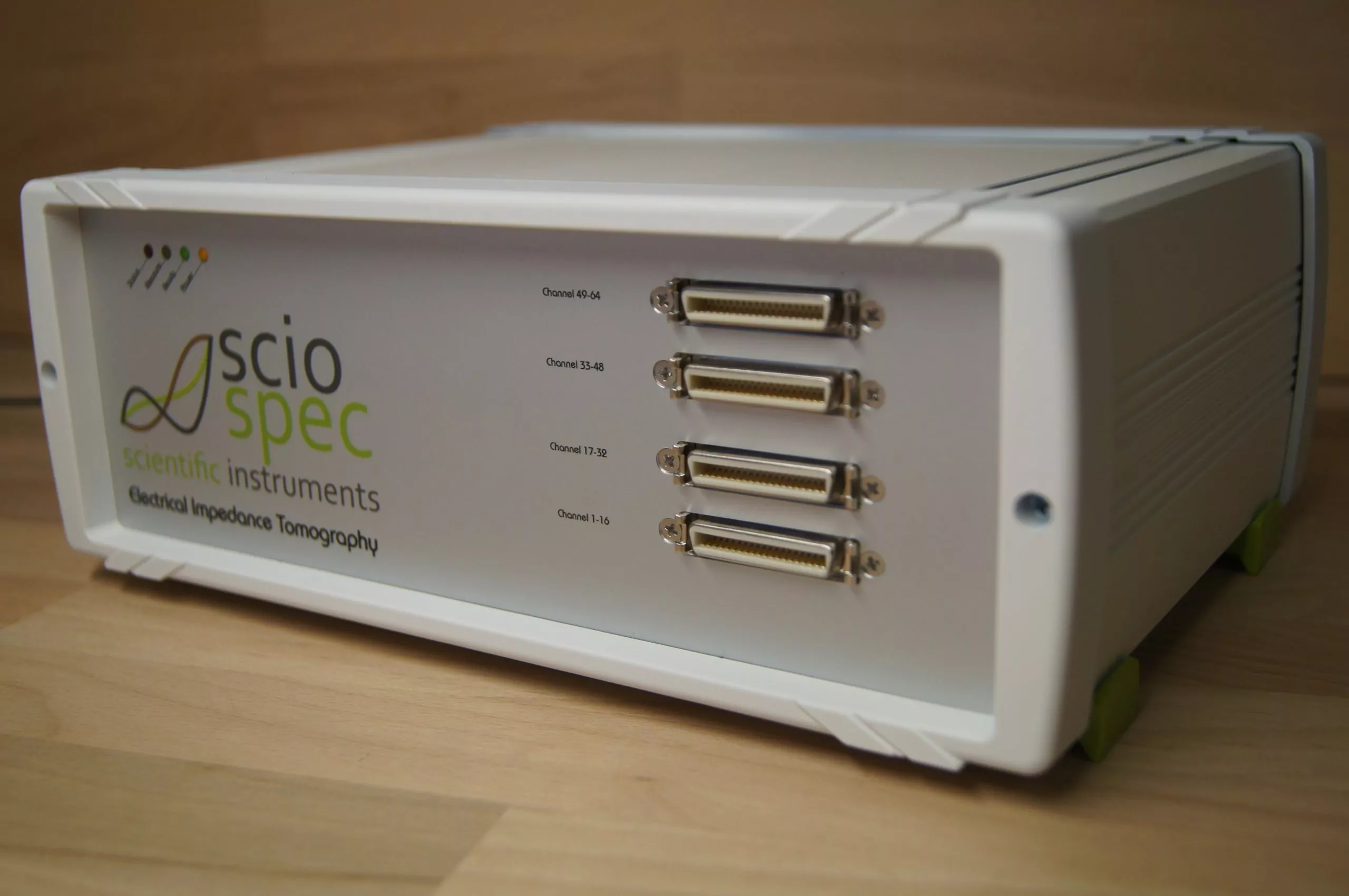

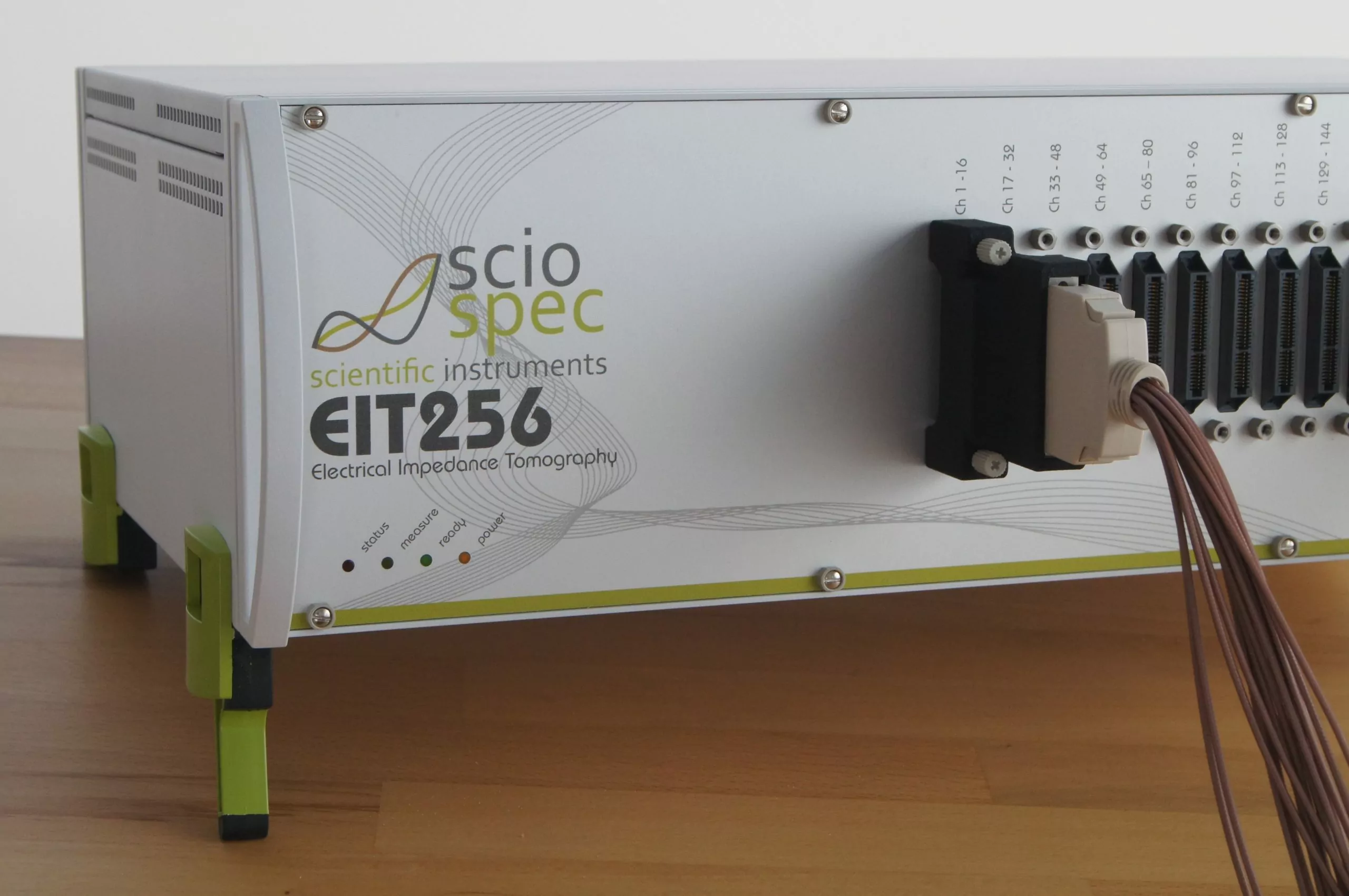

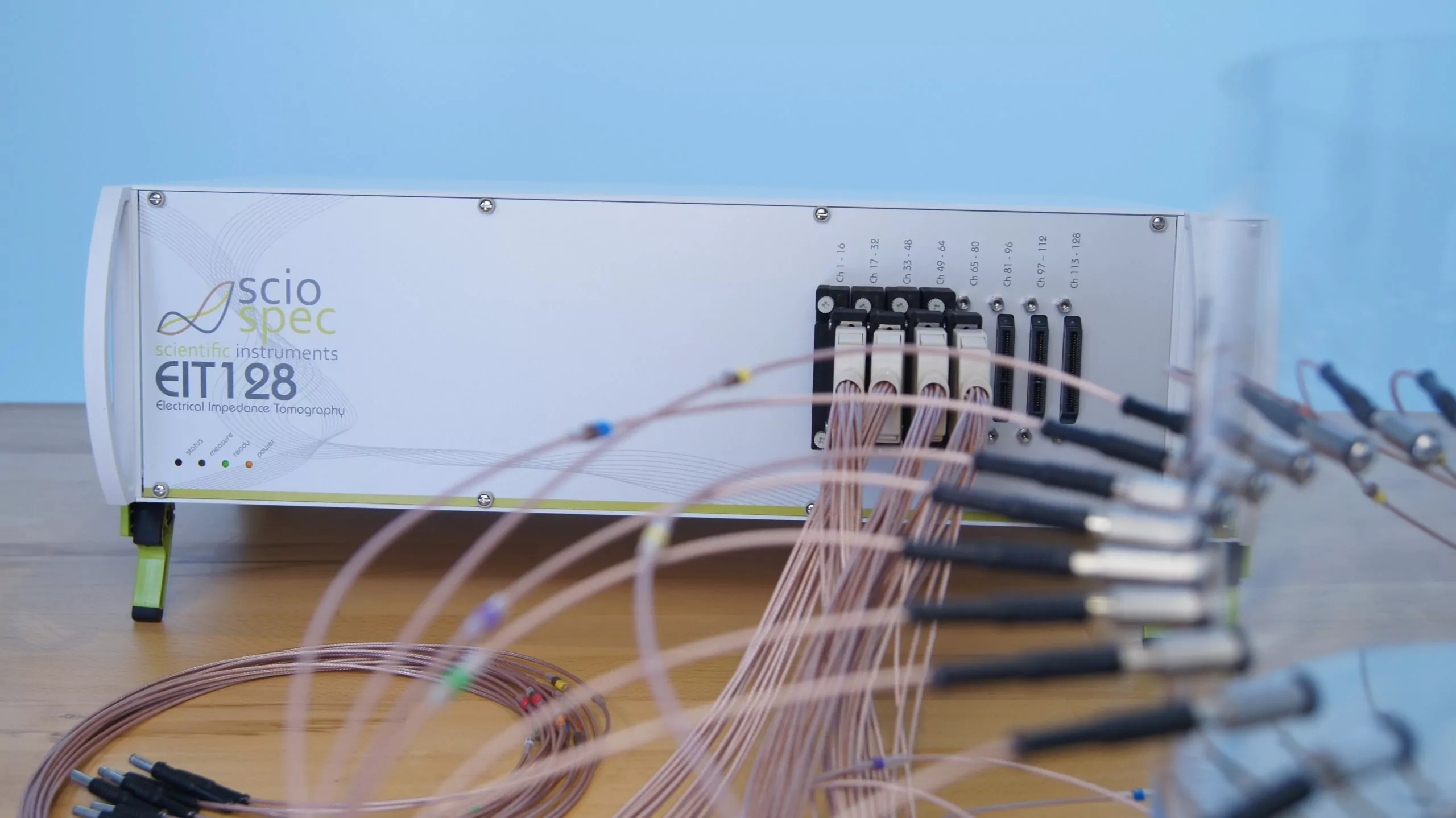

The Sciospec EIT32 is a scalable EIT platform that allows for instruments with 32, 64, 128, 256 or even more channels.

And still the platform is as flexible and customizable as all our instruments. Configure your instrument to perfectly fit to your application by adding medical grade safety features such as a medical grade power suppy or on isolated housing or just choose the WIFI option for wireless communication with the system.

Our EIT accessories (tanks, cable set or chip adapter) complete your setup and allow for a smooth start with your Sciospec EIT device.

  • Dual role electrode connections serving both as voltage measurement and current injection ports
  • Pseudo-differential current source for excitation signals up to 10 mA
  • Tightly synchronized data acquisition block for  truly simultaneous sampling of all sixteen channels
  • Switch matrix either based on ultra-low leakage reed relays or high speed semicondutor switches
  • Any combination of 2 channels for positive and negative injection ports for flexible injection patterns
  • Sciospec SineFit algorithm for fast and precise signal extraction
  • Frequency range from 100 Hz … 1 MHz
  • Spectral measurements with frequency sweeps with up to 128 frequencies
  • Current excitation from 100 nA … 10 mA peak amplitude
  • Frame rates up to 100 fps
  • Software with ready to go imaging algorithms
  • Fully customizable – just ask us
Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

The Sciospec EIT32 is a scalable EIT platform that allows for instruments with 32, 64, 128, 256 or even more channels.

And still the platform is as flexible and customizable as all our instruments. Configure your instrument to perfectly fit to your application by adding medical grade safety features such as a medical grade power suppy or on isolated housing or just choose the WIFI option for wireless communication with the system.

Our EIT accessories (tanks, cable set or chip adapter) complete your setup and allow for a smooth start with your Sciospec EIT device.

  • Dual role electrode connections serving both as voltage measurement and current injection ports
  • Pseudo-differential current source for excitation signals up to 10 mA
  • Tightly synchronized data acquisition block for  truly simultaneous sampling of all sixteen channels
  • Switch matrix either based on ultra-low leakage reed relays or high speed semicondutor switches
  • Any combination of 2 channels for positive and negative injection ports for flexible injection patterns
  • Sciospec SineFit algorithm for fast and precise signal extraction
  • Frequency range from 100 Hz … 1 MHz
  • Spectral measurements with frequency sweeps with up to 128 frequencies
  • Current excitation from 100 nA … 10 mA peak amplitude
  • Frame rates up to 100 fps
  • Software with ready to go imaging algorithms
  • Fully customizable – just ask us
