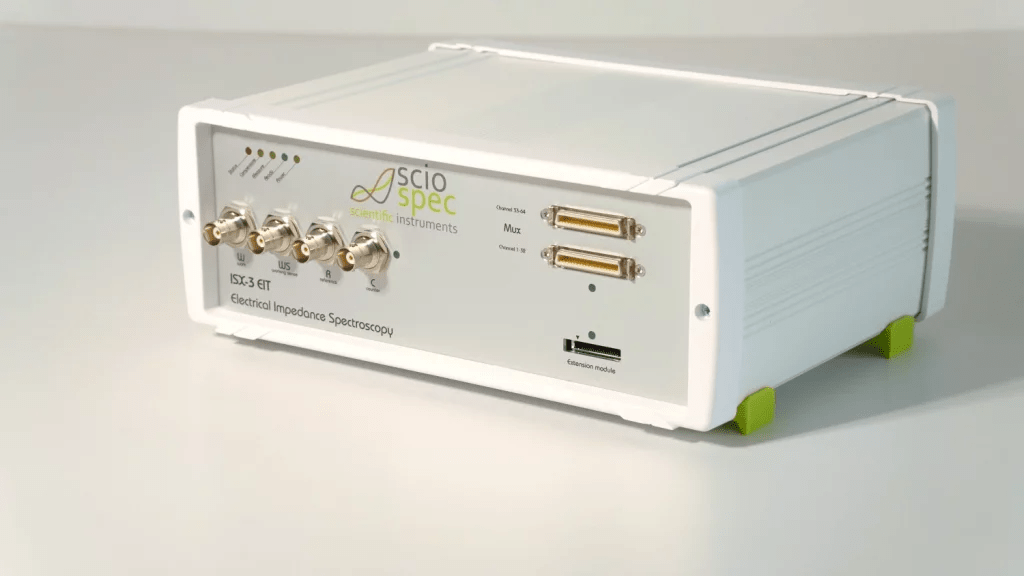

ScioSpec ISX-3 EIT

EIS and EIT. In one system.

Electrical Impedance Spectroscopy & Tomography system

With the Sciospec ISX-3 EIT we bring together our core competencies in one system: Electrical Impedance at its best and Electrical Impedance Tomography.

The ISX-3 EIT is the perfect fit for researchers and industrial users facing an application where both EIS and EIT are useful. The system comes with proven EIS performance of the ISX-3 and also has quite some EIT capabilities.

  • Full featured ISX-3 impedance analyzer
    • IF Frontend 100 mHz…10 MHz, mOhm…TOhm
    • Frequency extendable to 40 MHz or even 100 MHz
    • 2, 3 and 4 electrode configurations
    • High resolution (up to 2048 frequencies per sweep)
    • Base precision of 0.01%
    • +/- 1 V DC Bias
    • ExtensionPort for application specific frontends
    • Ultra-fast hardware synchronization through sync in/out connectors (optional)
    • Simple connection through Full Speed USB, Ethernet or Wireless LAN
    • PC-based control & data analysis (Sciospec software suit included)
    • Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.
  • Highly flexible any to any multiplexer
    • 32 or 64 ports
    • Any combination of ports for 2, 3 or 4 electrode impedance measurement
    • Dedicated EIT mode (injection matrix like channel sweeps per frame)
