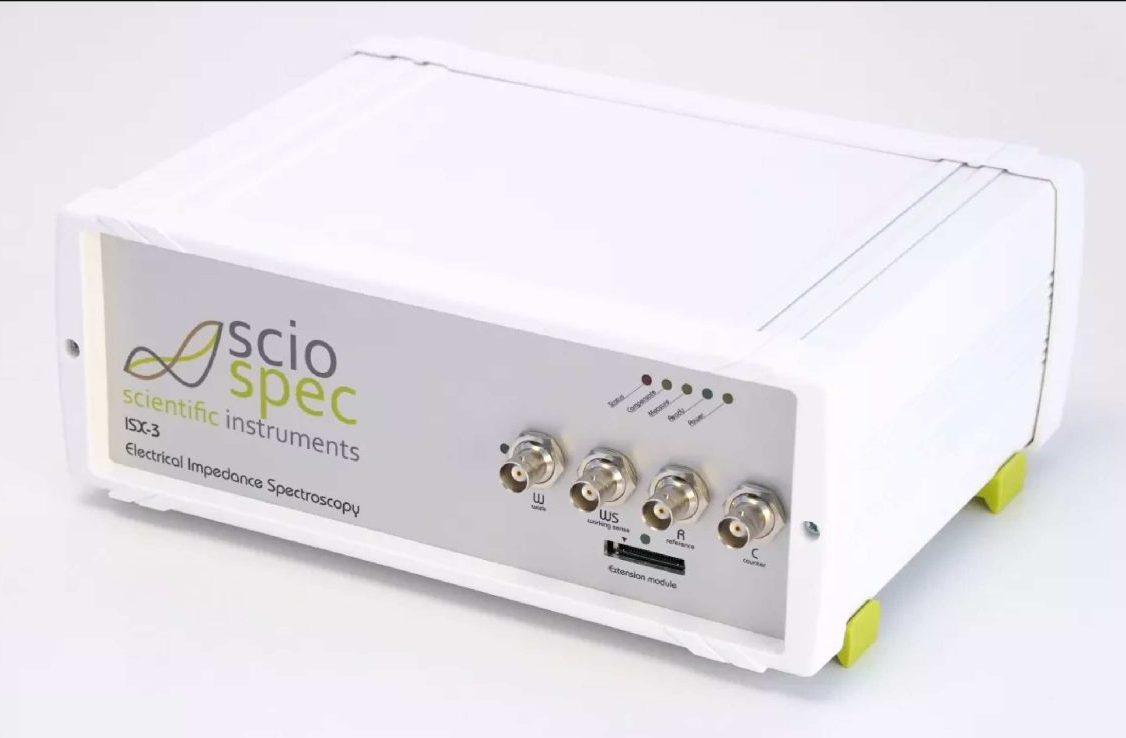

- Compact, single channel impedance analyzer
- IF Frontend 100 mHz…10 MHz, mOhm…TOhm
- Frequency extendable to 40 MHz or even 100 MHz
- 2, 3 and 4 electrode configurations
- High resolution (up to 2048 frequencies per sweep)
- Base precision of 0.01%
- +/- 1 V DC Bias
- ExtensionPort for application specific frontends
- Ultra-fast hardware synchronization through sync in/out connectors (optional)
- Simple connection through Full Speed USB, Ethernet or Wireless LAN
- PC-based control & data analysis (Sciospec software suit included)
- Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.
