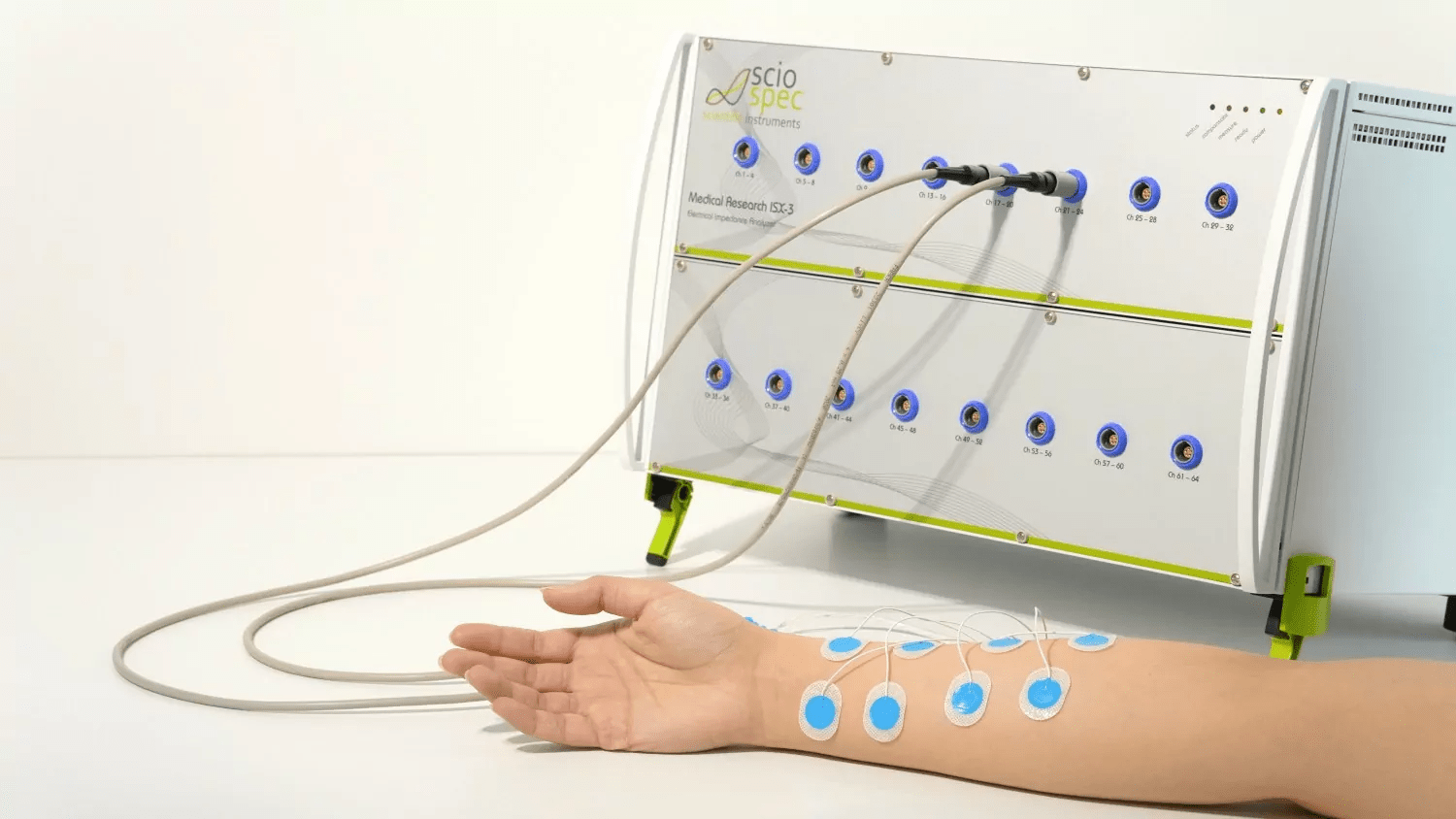

ScioSpec Medical Research ISX-3

Based on the ISX-3 impedance analyzer, it is equipped with Sciospec’s IF frontend with 4-port BNC interface supporting simple 2 point measurements, as well as 3 and 4 electrode configurations. Within the measurement range from 100 mHz to 10 MHz (extendable to 40 or 100 MHz) it covers a dynamic range of 300dB (mOhm…TOhm) with a base precision of 0.01%.

Additionally the Medical Research ISX-3 includes measures for enhanced electrical safety including medical grade isolation enabling a safe operation of the instrument in medical research settings.

  • Compact impedance analyzer
  • IF Frontend 100 mHz…10 MHz, mOhm…TOhm
  • Frequency extendable to 40 MHz or even 100 MHz
  • 2, 3 and 4 electrode configurations
  • High resolution (up to 2048 frequencies per sweep)
  • Base precision of 0.01%
  • +/- 1 V DC Bias
  • ExtensionPort for application specific frontends
Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

Based on the ISX-3 impedance analyzer, it is equipped with Sciospec’s IF frontend with 4-port BNC interface supporting simple 2 point measurements, as well as 3 and 4 electrode configurations. Within the measurement range from 100 mHz to 10 MHz (extendable to 40 or 100 MHz) it covers a dynamic range of 300dB (mOhm…TOhm) with a base precision of 0.01%.

Additionally the Medical Research ISX-3 includes measures for enhanced electrical safety including medical grade isolation enabling a safe operation of the instrument in medical research settings.

  • Compact impedance analyzer
  • IF Frontend 100 mHz…10 MHz, mOhm…TOhm
  • Frequency extendable to 40 MHz or even 100 MHz
  • 2, 3 and 4 electrode configurations
  • High resolution (up to 2048 frequencies per sweep)
  • Base precision of 0.01%
  • +/- 1 V DC Bias
  • ExtensionPort for application specific frontends
