Telstar 1.2m wide Biological Safety Cabinet Bio II Advance Plus 4 (230V 50Hz) TÜV Approved

$12,000.00

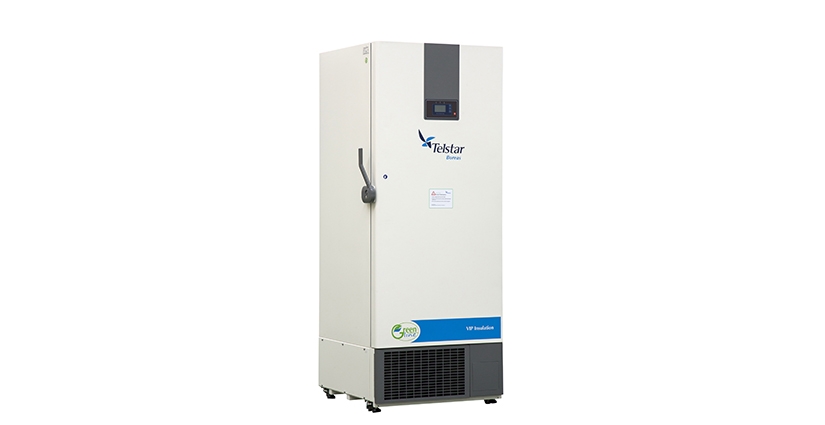

Telstar Boreas Ultra Low-Temperature Freezers use ultra-thin vacuum insulation panels. With only 80 mm of insulation, they guarantee a much better insulation value than the 125 mm standard PU foam. A temperature of -86oC is guaranteed for an ambient up to +30oC. Furthermore, thin insulation increases the storage capacity by up to 30%. Safety for your samples is paramount but why not be kind to the environment as well? Telstar has embraced this ideology and always uses ecological refrigerants in its freezers.

Unlike the traditional use of mixed synthetic potent greenhouse gases, Telstar is a pioneer in using 100% pure natural refrigerants. CFC, HCFC, and HFC free. In addition, the hydrocarbon systems used by Telstar are safety compliant in accordance with EN60335-2-24. The Boreas green line only uses high-quality and energy-efficient compressors. Combined with the use of natural refrigerants it achieves a mix of low power consumption and noise levels, around 50 dB(A), in line with  NEN-EN-ISO 11202 requirements.

A reliable self-diagnostic monitoring and alarm system is positioned at eye level, far from dust and moisture. The bright liquid crystal digital display is clearly visible from afar. The most critical values (sample temperature, ambient temperature, and voltage) can be checked in a blink of an eye! No freezer is ever opened with empty hands. To facilitate single-hand opening Telstar has developed an ergonomic door handle. This easy–grip handle helps to effortlessly open the door and firmly press the door closed.

The robust metal system is designed and tested to resist thousands of handling. Security is safe guarded by a cylinder lock and it allows an additional padlock to be used when extra security is needed. A heated vacuum equalization valve allows smooth frequent door openings.

As a standard, the Boreas upright series is equipped with a 5-compartment configuration to efficiently store standard racking systems. The 5 inner doors are well-insulated with 20 mm PU foam. They are color-coded and extremely robust. Three hinges ensure accurate opening and closing. The inner doors can also slide off their hinges for easy cleaning. To ensure high-quality standards, the entire inner chamber is made of Stainless Steel. Telstar is the only manufacturer offering a complete Stainless Steel interior. This includes the walls, shelves, main door inner panel, and also the 5 inner doors.

Telstar has developed an ultra-low temperature freezer with low power consumption, without making any compromises in cooling performance. The combination of ultimate temperature recovery times with very stable and uniform temperatures throughout the cabinet ensures top-class performances. The package is completed by the VIP insulation which ensures slow temperature rise in case of power failure.



  • Large and optimized storage capacity
  • Reduced footprint
  • Stainless Steel interior
  • Excellent cooling performance
  • Natural green refrigerants
  • Low power consumption
  • Low noise level
  • Easy filter cleaning
  • Total reliability
  • Ergonomic design





SKU: 1607686 Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

Telstar Boreas Ultra Low-Temperature Freezers use ultra-thin vacuum insulation panels. With only 80 mm of insulation, they guarantee a much better insulation value than the 125 mm standard PU foam. A temperature of -86oC is guaranteed for an ambient up to +30oC. Furthermore, thin insulation increases the storage capacity by up to 30%. Safety for your samples is paramount but why not be kind to the environment as well? Telstar has embraced this ideology and always uses ecological refrigerants in its freezers.

Unlike the traditional use of mixed synthetic potent greenhouse gases, Telstar is a pioneer in using 100% pure natural refrigerants. CFC, HCFC, and HFC free. In addition, the hydrocarbon systems used by Telstar are safety compliant in accordance with EN60335-2-24. The Boreas green line only uses high-quality and energy-efficient compressors. Combined with the use of natural refrigerants it achieves a mix of low power consumption and noise levels, around 50 dB(A), in line with  NEN-EN-ISO 11202 requirements.

A reliable self-diagnostic monitoring and alarm system is positioned at eye level, far from dust and moisture. The bright liquid crystal digital display is clearly visible from afar. The most critical values (sample temperature, ambient temperature, and voltage) can be checked in a blink of an eye! No freezer is ever opened with empty hands. To facilitate single-hand opening Telstar has developed an ergonomic door handle. This easy–grip handle helps to effortlessly open the door and firmly press the door closed.

The robust metal system is designed and tested to resist thousands of handling. Security is safe guarded by a cylinder lock and it allows an additional padlock to be used when extra security is needed. A heated vacuum equalization valve allows smooth frequent door openings.

As a standard, the Boreas upright series is equipped with a 5-compartment configuration to efficiently store standard racking systems. The 5 inner doors are well-insulated with 20 mm PU foam. They are color-coded and extremely robust. Three hinges ensure accurate opening and closing. The inner doors can also slide off their hinges for easy cleaning. To ensure high-quality standards, the entire inner chamber is made of Stainless Steel. Telstar is the only manufacturer offering a complete Stainless Steel interior. This includes the walls, shelves, main door inner panel, and also the 5 inner doors.

Telstar has developed an ultra-low temperature freezer with low power consumption, without making any compromises in cooling performance. The combination of ultimate temperature recovery times with very stable and uniform temperatures throughout the cabinet ensures top-class performances. The package is completed by the VIP insulation which ensures slow temperature rise in case of power failure.



  • Large and optimized storage capacity
  • Reduced footprint
  • Stainless Steel interior
  • Excellent cooling performance
  • Natural green refrigerants
  • Low power consumption
  • Low noise level
  • Easy filter cleaning
  • Total reliability
  • Ergonomic design





Specifications

Features

Cabinet depth 759 mm (compatible with most laboratory doors)
Overall height 1260 mm
10° sloped window for a better working position.
04L stainless steel chamber with rounded angles and hardened security glass sides.
Hermetically closable sealing around the front window – Security anti-reflective front window with UV protection with no visual obstacles on the lower edge
Control Microprocessor control with filter-loading self compensation
Main screen showing the laminar flow speed and the filter clogging level
Functions Ecomode function
Control panel with international colour code to indicate cabinet status
Manual sliding window with gas springs to facilitate maintenance and internal cleaning of the cabinet and entering large objects and accessories into the working chamber.
UV light and fans with timer to be programmable
Four predefined languages (Spanish, English, French and German)
Access to all the maintenance areas via the front side of the cabinet. – Certified Safety: EN 12469



Specifications

Int dimensions WxDxH 1259 x 605 x 587 mm
Ext dimensions WxDxH 1354 x 759 x 1260 mm
Height of front opening 200 mm
Weight 200 kg
Laminar flow speed /flow rate 0.35 m/s , 882 m3/h
Front entry air speed/extraction flow rate 0.5 m/s , 402 m3/h
Power 1.3 Kw
Lighting >=1000 lux
Sound <= 58dBA
Vibration < 0.005 mm RMS
Filters HEPA H14 filters according to EN 1822: efficiency of 99.995% MPPS and 99.999 % DOP
Air Quality ISO 4 in accordance with ISO CD 14644-1: 353 part >=0.5 Km/m3 ; 10000 part >= 0.1 Km/m3
