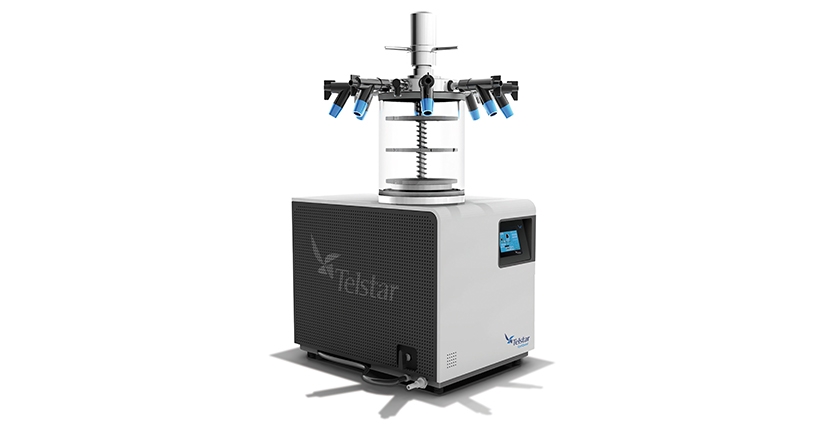

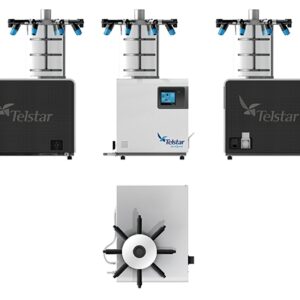

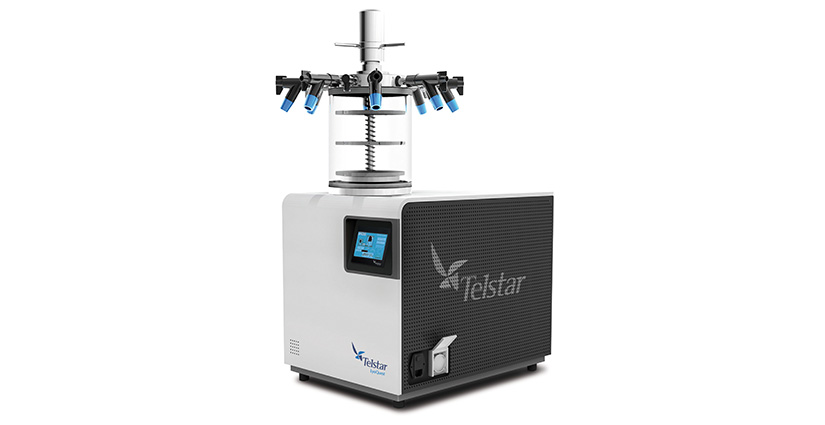

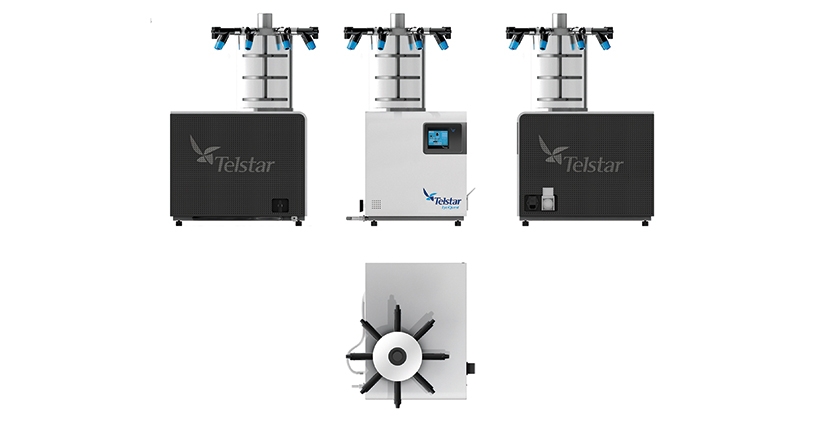

Telstar Benchtop Freeze Dryer Model LyoQuest -55 Plus (230V 50Hz)





The LyoQuest laboratory freeze dryers are designed to be a multipurpose unit in the research and development field. It is a small freeze dryer, more robust and compact than most but in spite of its small size has an unbeatable capacity. A state-of-the-art control system and a range of specially designed accessories make the LyoQuest a benchmark in its category.

The unit’s design offers outstanding performance in the least possible space; an extremely compact unit for freeze-drying products either in flasks, vials, ampoules or bulk. The base unit is constructed of an epoxy coated steel frame including a refrigeration system and condenser. The stainless steel condenser can be found inside the equipment. A wide range of accessories can be connected to the condenser, allowing the unit to be flexible by being able to accommodate every individual application perfectly. The special design allows freezing the samples within the same equipment.

The equipment includes a PLC controlled unit with digital display and touch screen for the continuous monitoring of the process. It also provides fully automatic functioning, with the possibility of manual actuation.

The unit is manufactured with a standard configuration and an RS232 interface for connection to a PC via suitable monitoring Lyologger software.



  • Easy to start-up and use; plug and play freeze-dryer; Simple electrical connection to the network
  • Condenser at -53 ±3°C and -83 ±3°C, Total condenser capacity: more than 8kg
  • Heating system for the shelves included up to 70C
  • System control by PLC (Siemens) + Touch-screen;
  • Features: condenser temperature, shelves temperature, 2 product temperature, pressure value, process time, alarms & events, recipes,
  • user friendly interface
  • Air cooled for compressors
  • Vacuum pump outside the cabinet
SKU: 61653 Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview





The LyoQuest laboratory freeze dryers are designed to be a multipurpose unit in the research and development field. It is a small freeze dryer, more robust and compact than most but in spite of its small size has an unbeatable capacity. A state-of-the-art control system and a range of specially designed accessories make the LyoQuest a benchmark in its category.

The unit’s design offers outstanding performance in the least possible space; an extremely compact unit for freeze-drying products either in flasks, vials, ampoules or bulk. The base unit is constructed of an epoxy coated steel frame including a refrigeration system and condenser. The stainless steel condenser can be found inside the equipment. A wide range of accessories can be connected to the condenser, allowing the unit to be flexible by being able to accommodate every individual application perfectly. The special design allows freezing the samples within the same equipment.

The equipment includes a PLC controlled unit with digital display and touch screen for the continuous monitoring of the process. It also provides fully automatic functioning, with the possibility of manual actuation.

The unit is manufactured with a standard configuration and an RS232 interface for connection to a PC via suitable monitoring Lyologger software.



  • Easy to start-up and use; plug and play freeze-dryer; Simple electrical connection to the network
  • Condenser at -53 ±3°C and -83 ±3°C, Total condenser capacity: more than 8kg
  • Heating system for the shelves included up to 70C
  • System control by PLC (Siemens) + Touch-screen;
  • Features: condenser temperature, shelves temperature, 2 product temperature, pressure value, process time, alarms & events, recipes,
  • user friendly interface
  • Air cooled for compressors
  • Vacuum pump outside the cabinet

Specifications





Ice condenser capacity 8 kg (5 kg/24h)
Final condenser temperature * <- 55°C
*All temperatures are given from room temp up to +21°C
No. of compressor 1
Base unit weight 65 kg
Total power  1.1 kW



Download Product Specification Brochure Here
