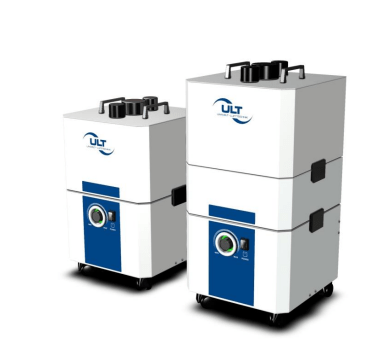

ULT Fume Extractor Model LAS 200.1 MD. 20K with chemisorption

$9,500.00

Laser marking, laser cutting, laser welding, laser structuring or laser ablation  are technologies you are familiar with? Do you utilize a laser system and look for an extraction unit that prefectly meets the requirements of your processes and applications?

The LAS equipment series covers the entire range of technologies for laser fume extraction and laser dust filtration – for any possible laser process in many industrial branches as well as handicraft, medical, or research.

SKU: LAS 200.1 MD.20 K Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

Laser marking, laser cutting, laser welding, laser structuring or laser ablation  are technologies you are familiar with? Do you utilize a laser system and look for an extraction unit that prefectly meets the requirements of your processes and applications?

The LAS equipment series covers the entire range of technologies for laser fume extraction and laser dust filtration – for any possible laser process in many industrial branches as well as handicraft, medical, or research.

Specifications





Filter system K (6028)
Electrical equipment (std.) Control board, Filter
saturation signal (optical), M12-interface
Unit intake 2x Ø50 nozzle at the top, 1xØ80 nozzle
at the top
Unit outlet Air outlet louver at the bottom rear
Unit connection CEE7/7 power cable/plug
Unirt base RAL7035 (light grey)
Unit dim WxDxH 390 x 400 x 620 mm
Weight 27 kg



Specifications Blower, maintenance-free EC motor
Max. air flow: 320 m³/h
Max. vacuum: 9.000 Pa
Nominal capacity: 230 m³/h at 1.000 Pa /
130 m³/h at 5.000 Pa
Electrical values: 0,9 kW – 110-240 V – 10 A – 50/60 Hz
Noise level (at 50 – 100 %): 47 – 58 dB(A)
Flow adjuster and eco flow CS® (constant pressure
Device for extracting and filtration of dry, non-combustible
laser dust in non-explosive air mixtures
control)
LED-status light with particle filter clogging signal
Interface M12/8Pin
Remote On/Off
Particle filter clogging signal
Operation signal
Filter system  Air outlet nozzle DN100 enclosed
Filter system
Storage filter element, replace after saturation
(1) Expanded metal filter (ULT 02.0.576)
(2) Pre-filter set (Set of 5: ULT 02.0.217)
(2.1) Filter mat G, Coarse dust filter
Filter class according to ISO 16890: Coarse 85%
(2.2) Panel filter F, Fine dust filter
Filter class according to ISO 16890: ePM1 70%
(3) Combined filter cassette H14A (ULT 02.1.522)
3.1) Particle filter H14, HEPA filter
Filter class according to DIN EN 1822: H14
(3.2) Adsorption filter



Download Product Specification Brochure Here
