Electrical motor driven pump. All materials within the wetted parts path will withstand prolonged exposure to high pressure steam for the purposes of sterilization (SIP). Wetted parts are autoclavable Includes sample cylinder, tubing, hoses, fittings, plugs and tools.
- Electrical motor driven pump
- Pressure adjustable from 500 - 30,000psi.
- Dynamic homogenizing valve with pneumatic control
- Virtually no air consumption.
- Flow rate is 3 litres/hour independent of pressure.
- Minimum sample size 10 ml.
- All materials within the wetted parts path will withstand prolonged exposure to high pressure steam for the purposes of sterilization (SIP).
- Wetted parts are autoclavable Includes sample cylinder, tubing, hoses, fittings, plugs and tools
- Weight : 120 kg

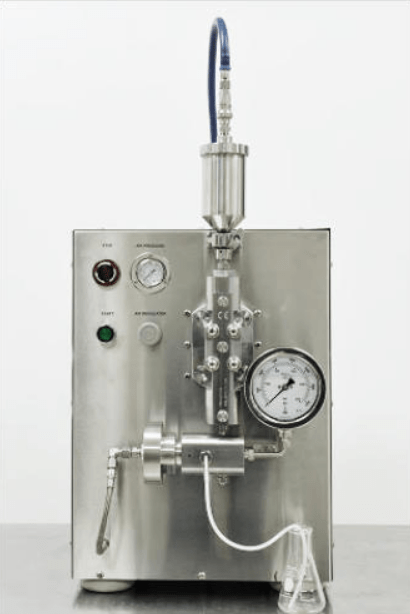

Avestin EmulsiFlex-C3 High Pressure Homogenizer
Capacity: The EmulsiFlex-C3 has a capacity of 3L/hr. The
flow rate is independent of homogenizing pressure. Minimum
sample volume of 7mL with a holdback volume of less than
ImL.
Pressure: Adjustable between 500-30,000psi(30-2,000bar),
which is high enough for virtually every homogenization application. Pneumatic pressure control with virtually no air
consumption. Pressure transducer for precision pressure
measurement ts also available.
Unique Design: The EmulsiFlex-C3 has an electric gear motor driven, single-acting, high-pressure pump. Almost noiseless. Runs with 220V or 110V power. The motor is only 1HP
(0.75kW). There are no “O”-rings in the high pressure product path. The instrument can be installed and run almost anywhere.
Temperature Control: AVESTIN provides stainless steel
heat exchangers to control inlet and outlet temperatures.
Filter/Extruder: The EmulsiFlex-C3 can be equipped with a
high pressure filter/extruder. Applications include the extrusion of emulsions or liposome through membranes and sterile filtration at high presure
Applications: Pharmaceuticals, chemicals, cosmetics, coatings, inks, food. GMP manufacturing
