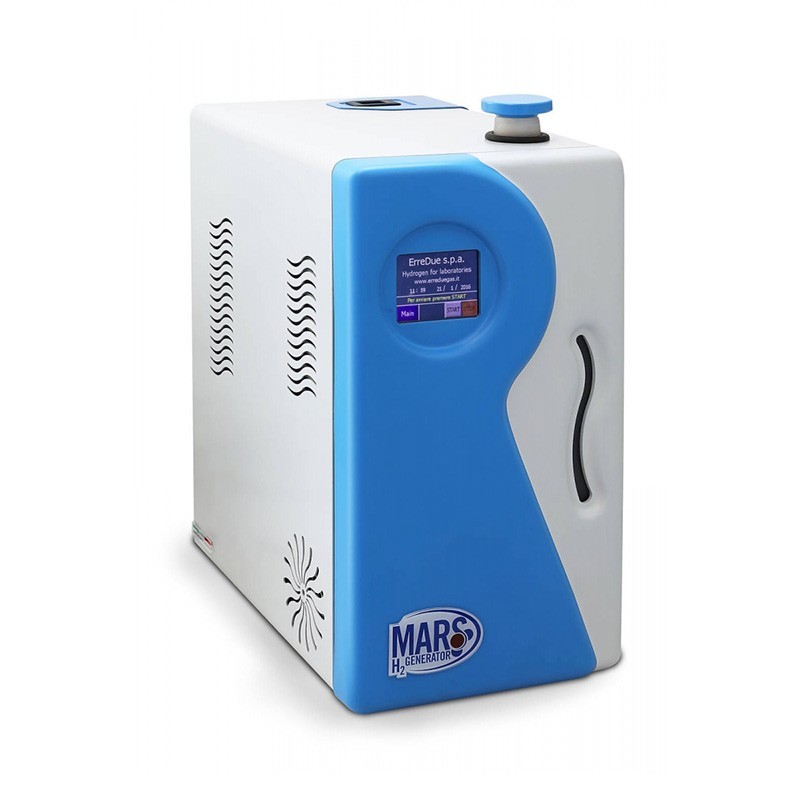

ErreDue 250 ml/min Hydrogen Generator Model MARS 250N with polymeric membrane (PEM), 230V 50Hz

$6,900.00

MARS generators use the PEM technology (proton exchange membrane), which allows for ultra-pure hydrogen at the desired pressure without the need for external purification or compression systems. MARS generators are powered simply by electricity and distilled water; no caustic solution is used.

MARS generators are ideal for every laboratory application: as carrier gas for GC-FID/GC-NPD/GC-TCD, as reagent gas for GC-ELCD/GC-HALL, as reaction gas for ICP-MS. In addition, the very high purity of hydrogen produced by MARS generators makes it ideal for storage in metal hydride cylinders for use with fuel cells.

MARS generators are maintenance-free, safe and reliable.

The Generator consists :



  • Electrolytic cell with PEM technology
  • No maintenance drying system
  • Internal water tank with electronic level control
  • Automatic checking of internal leaks at every start of the unit, with automatic shutdown
  • Water conductivity sensor – Simple and intuitive Touch screen LCD interface with possibility of remote control/diagnosis through integrated connection module (Android App available)
  • The generators can be connected in parallel with an easy operation from the touchscreen display to assign master and slave (up to 6 generators)
SKU: MARS 250N Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

MARS generators use the PEM technology (proton exchange membrane), which allows for ultra-pure hydrogen at the desired pressure without the need for external purification or compression systems. MARS generators are powered simply by electricity and distilled water; no caustic solution is used.

MARS generators are ideal for every laboratory application: as carrier gas for GC-FID/GC-NPD/GC-TCD, as reagent gas for GC-ELCD/GC-HALL, as reaction gas for ICP-MS. In addition, the very high purity of hydrogen produced by MARS generators makes it ideal for storage in metal hydride cylinders for use with fuel cells.

MARS generators are maintenance-free, safe and reliable.

The Generator consists :



  • Electrolytic cell with PEM technology
  • No maintenance drying system
  • Internal water tank with electronic level control
  • Automatic checking of internal leaks at every start of the unit, with automatic shutdown
  • Water conductivity sensor – Simple and intuitive Touch screen LCD interface with possibility of remote control/diagnosis through integrated connection module (Android App available)
  • The generators can be connected in parallel with an easy operation from the touchscreen display to assign master and slave (up to 6 generators)

Specifications





Flow rate up to 250 cc/min.
Outlet pressure 0 – 10 bar, adjustable
Purity 99,9999% (6.0)
Outlet gas connection 1/8″ inox Swagelok
Internal water tank volume 4 L
Dryer regeneration not needed
Power supply voltage 110-240 Vac – 50/60 Hz
Dimensions 245 x 460 x 500h mm
Weight 23 kg
Certifications CE/ISO conformity certificates
Water * Note: The water to be used must be ASTM II < 0.2GS
