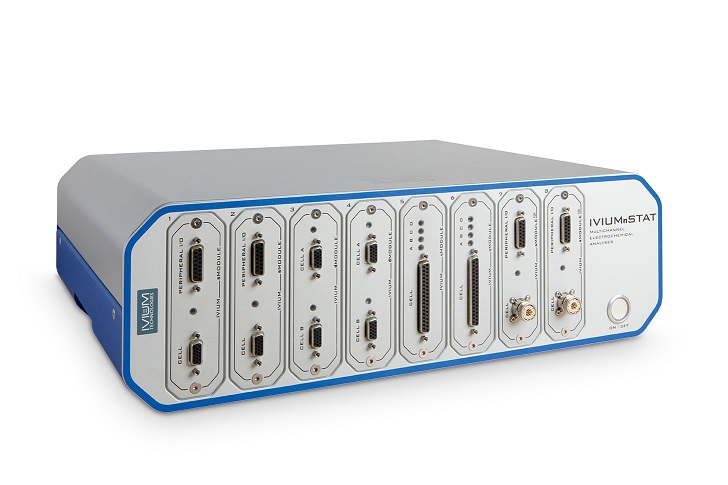

Ivium-n-Stat Base Frame (40A-max)

$18,000.00

Wide application range

The instrument is designed for a wide range of applications, such as battery/fuel cell-testing, electrode development, biotechnology and other Electrochemical Research applications.

Complete solution

The Ivium-n-Stat offers a complete package. The hardware includes a built-in high-performance Frequency Response Analyser, low current measurement possibility down to 100pA full-scale, and all the standard electrochemical techniques. All measurement and dataprocessing software is included (for Windows based PCs).

Safety

The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.

Automation

Multiple analog and digital input & output ports are available for monitoring & control of peripheral equipment. This functionality is fully integrated in the software.

Expandibility

Each channel can be expanded with various options and modules (depending on the compatibility), such as a power booster, multiplexer, etc.

Hardware

  • Automatic current range selection: 100pA to 10A/1mV to 10V
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and peripheral analog signals
  • Real time data display up to 500 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 3.33µs (0.125µs resolution)
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
  • User selectable floating operation

Channel Configurations

Single-channel modules:

  • ±2.5A / ±10V (with BiStat optional)
  • ±5A / ±10V    (with BiStat optional)
  • ±10A / ±5V
  • ±20A / ±2V
  • ±2A / ±20V
  • ±1A / ±50V

Dual-channel modules:

  • 2 x ±1A / ±20V
  • 2 x ±2.5A / ±10V

Four-channel module:

  • 4 x ±30mA / ±10V

Frame:

  • 40A to fit all channel configurations
  • 8 modules/32 channels per frame
  • Stackable up to 64 channels

Software

The Ivium-n-Stat is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software, allows instrument control, data management and analysis, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included as standard with each instrument.

Ivium-n-Stat software control:

  • Control of separate channels individually
  • All channels simultaneously
  • Synchronous start
  • Data from different channels plotted individually or in 1 single graph
SKU: IVIUM-N-STAT(40) Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

Wide application range

The instrument is designed for a wide range of applications, such as battery/fuel cell-testing, electrode development, biotechnology and other Electrochemical Research applications.

Complete solution

The Ivium-n-Stat offers a complete package. The hardware includes a built-in high-performance Frequency Response Analyser, low current measurement possibility down to 100pA full-scale, and all the standard electrochemical techniques. All measurement and dataprocessing software is included (for Windows based PCs).

Safety

The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.

Automation

Multiple analog and digital input & output ports are available for monitoring & control of peripheral equipment. This functionality is fully integrated in the software.

Expandibility

Each channel can be expanded with various options and modules (depending on the compatibility), such as a power booster, multiplexer, etc.

Hardware

  • Automatic current range selection: 100pA to 10A/1mV to 10V
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and peripheral analog signals
  • Real time data display up to 500 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 3.33µs (0.125µs resolution)
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
  • User selectable floating operation

Channel Configurations

Single-channel modules:

  • ±2.5A / ±10V (with BiStat optional)
  • ±5A / ±10V    (with BiStat optional)
  • ±10A / ±5V
  • ±20A / ±2V
  • ±2A / ±20V
  • ±1A / ±50V

Dual-channel modules:

  • 2 x ±1A / ±20V
  • 2 x ±2.5A / ±10V

Four-channel module:

  • 4 x ±30mA / ±10V

Frame:

  • 40A to fit all channel configurations
  • 8 modules/32 channels per frame
  • Stackable up to 64 channels

Software

The Ivium-n-Stat is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software, allows instrument control, data management and analysis, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included as standard with each instrument.

Ivium-n-Stat software control:

  • Control of separate channels individually
  • All channels simultaneously
  • Synchronous start
  • Data from different channels plotted individually or in 1 single graph

Specifications

Technical Specifications

Slot positions Can mount up to 8 Modules
Common connectors GND and combined emergency off control monitor
Interfacing USB
Power requirement 100-240V, 47-63Hz, 600W
Size : w x d x h 47 x 36 x 14 cm
Weight 6.2 kg (no modules); 12 kg (with 8 modules) max. 16 channels
