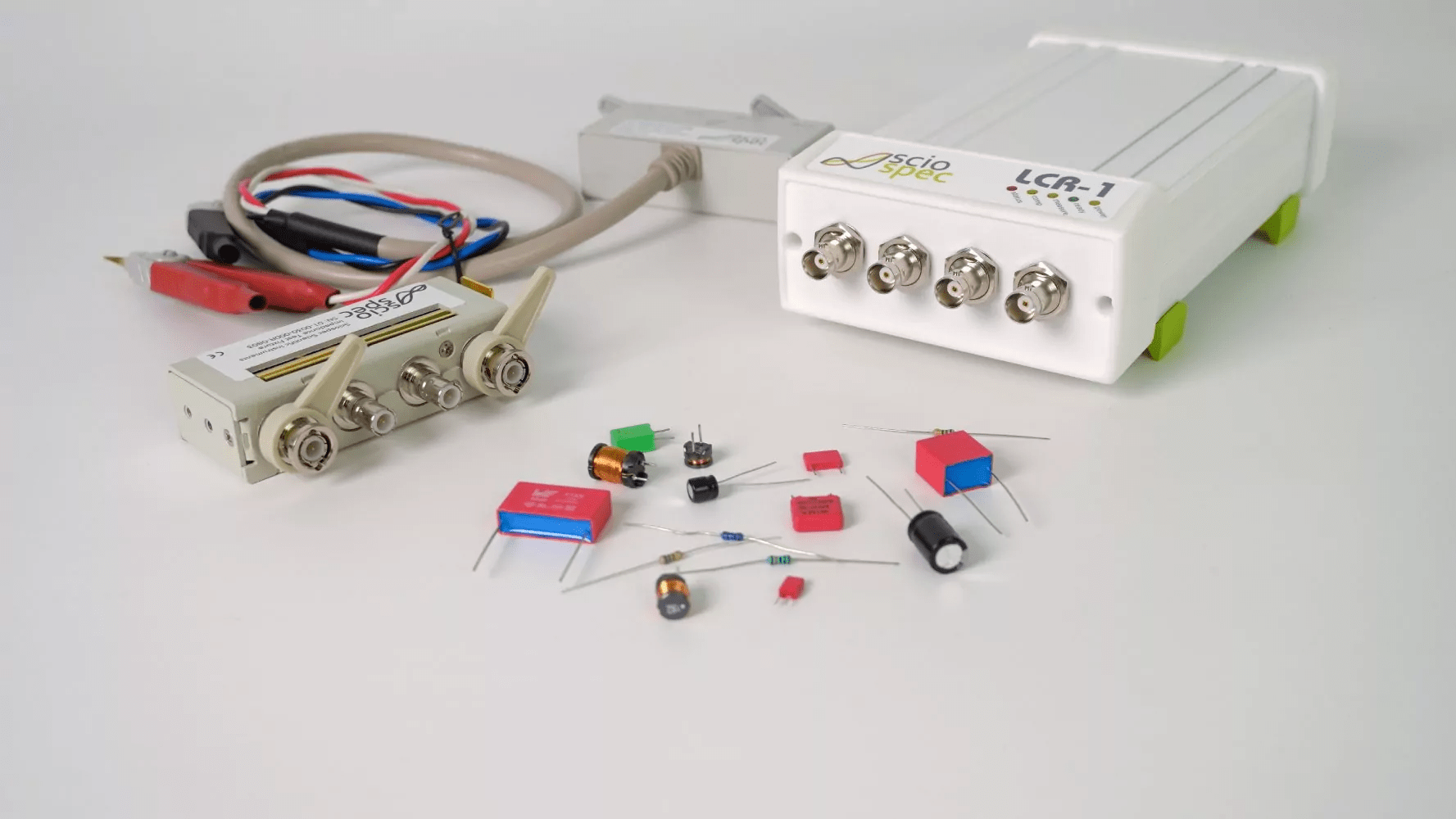

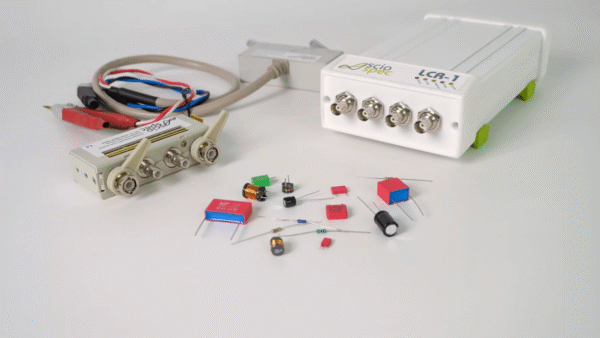

ScioSpec LCR Meter

LCR-1 combines next-level performance with the simplicity of an LCR meter. In terms of range, accuracy and speed the LCR-1 sees eye to eye with competing high-end devices while maintaining a compact formfactor, simple setup and ease of use previously unseen in this class.

  • one channel compact LCR meter
  • 2-, 3- and 4-port measurements
  • large selection of common electrical models, circuits and parameters
  • wide frequency range: 100 mHz … 500 kHz (extendable to 1 MHz or 10 MHz)
  • wide measurement range:
  • R = 1 mΩ … 1 TΩ
  • C = 10 fF … 1 kF
  • L = 1 nH … 1 TH
  • high accuracy: 0.01% base accuracy
  • extremely simple setup and direct access presets for easy day to day use
  • compatible with many test adapters for electrical components, foils, thin films and liquids
  • manual and automatic
  • measurement ranges and triggers
  • intuitive setup of averaging, compensation, integration time and many more if you need more control over your measurements.
Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

LCR-1 combines next-level performance with the simplicity of an LCR meter. In terms of range, accuracy and speed the LCR-1 sees eye to eye with competing high-end devices while maintaining a compact formfactor, simple setup and ease of use previously unseen in this class.

  • one channel compact LCR meter
  • 2-, 3- and 4-port measurements
  • large selection of common electrical models, circuits and parameters
  • wide frequency range: 100 mHz … 500 kHz (extendable to 1 MHz or 10 MHz)
  • wide measurement range:
  • R = 1 mΩ … 1 TΩ
  • C = 10 fF … 1 kF
  • L = 1 nH … 1 TH
  • high accuracy: 0.01% base accuracy
  • extremely simple setup and direct access presets for easy day to day use
  • compatible with many test adapters for electrical components, foils, thin films and liquids
  • manual and automatic
  • measurement ranges and triggers
  • intuitive setup of averaging, compensation, integration time and many more if you need more control over your measurements.
