Technical Specifications
| Model | Ivium PocketSTAT2 |
| Scan Range | ±30mA/±10V |
| FRA/EIS | 10µHz-1MHz |
| Dimensions (W×D×H) | 16 x 6.7 x 1.9cm |
| Weight | 300g |
| Warranty | 3 Years |

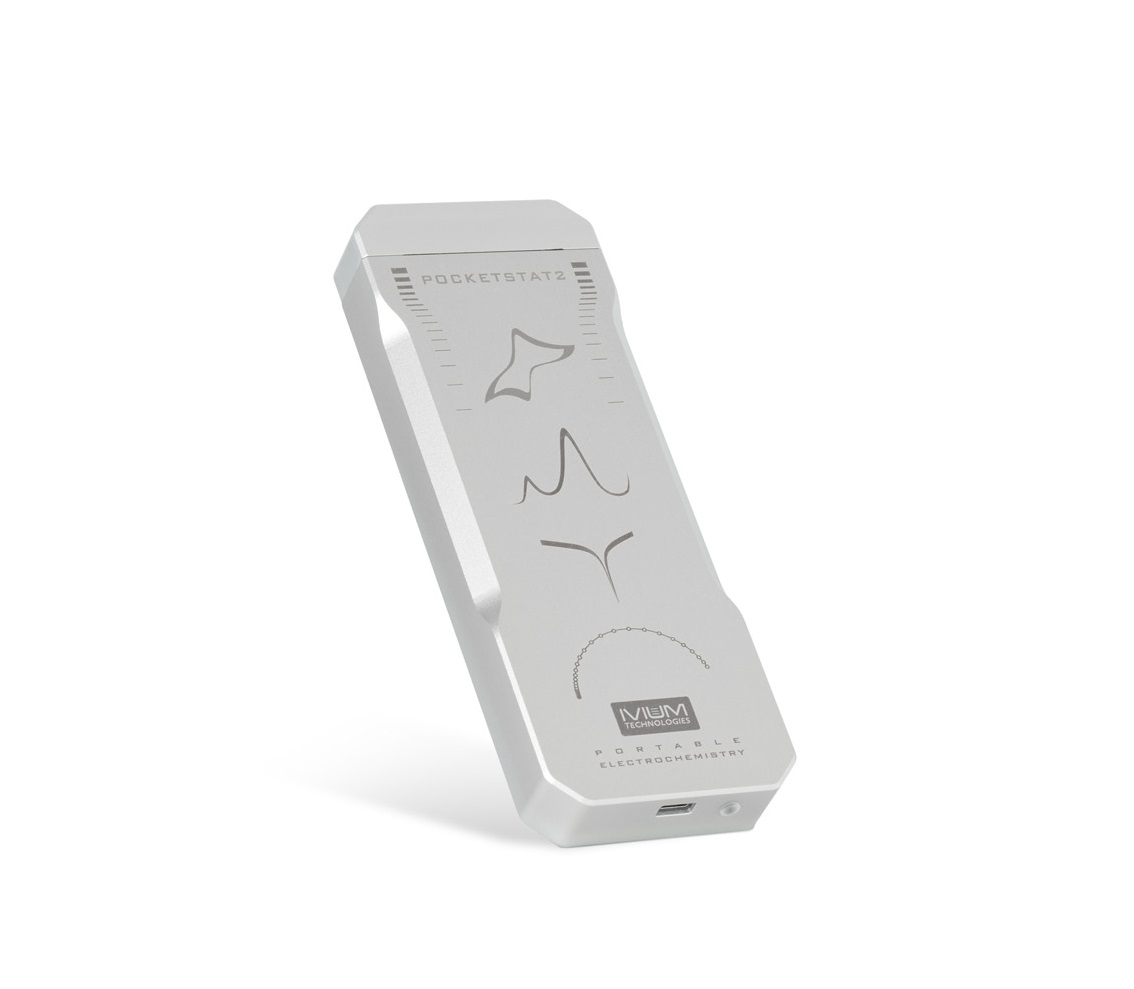

Ivium PocketSTAT2
Handheld
The pocketSTAT2 is a portable potentiostat /galvanostat/ZRA with integrated FRA/EIS, and has the size and weight of a smart phone. It is controlled via a USB connection from any netbook, laptop or PC that is Windows operated.
Expandability
The pocketSTAT2 can be expanded with integrated True Linear Scan module, and is compatible with several options and modules.
Rugged design
The pocketSTAT2 has a housing made of strong, yet lightweight aluminium.
Hardware
- Automatic current range selection: 100pA to 10mA/1mV to 10V
- Automatic variable noise filter and potentiostat/galvanostat stability settings
- Real time data up to 3,000 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
- Applicable scanrates: 1µV/s to 10,000V/s
- Minimum interval time: 3.33µs (0.125µs resolution)
- Result optimalisation by automated tuned filters, gain amplifiers and DC-subtraction
Software
The pocketSTAT2 is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software package allows instrument control, data management and analysis, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.
