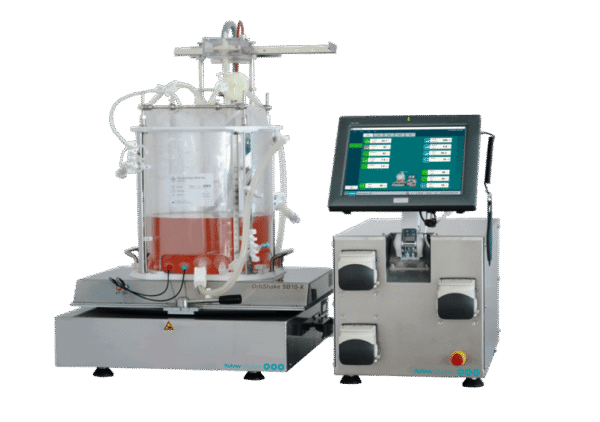

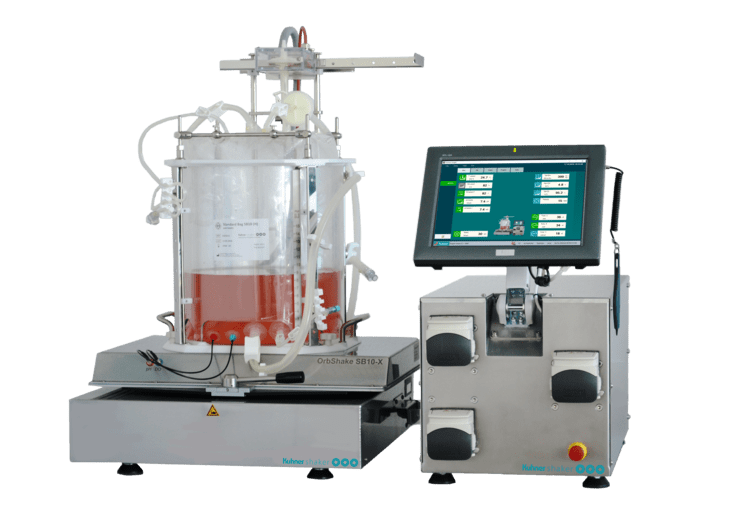

The SB10-X is an orbital shaken benchtop bioreactor system for the cultivation of human, mammalian and plant cells in a single-use bag. It has a working volume from 4 litres up to 12 litres.
Also perfusion processes can be easily realized (ATF / TFF).
The SB10-X can be used in research, process development or as a pilot scale bioreactor.
Performance characteristics
- Cultivation of human, mammalian and plant cells
- Fast, simple set up - Easy scale-up
- Online measurement and control of pH and DO
- Three different single-use bag available Includes 6 modules:
- Shaker module ES-X
- Tray module
- Vessel module
- Cable and tube management module
- Filter heater
- Control unit
Kuhner Orbital Shaken Benchtop Bioreactor System SB10-X for single-use bag (230V 50Hz)
| Working volume | 3 L - 12 L |
| Total bag volume | approx. 24 L |
| Weight (bioreactor + shaker) | approx 75 kg wo liquid |
| Required footprint (excl control unit) | 669 x 646 mm |
| Shaker Module ES-X - Motor | modified ES-X benchtop shaker |
| Shaking diameter | 50mm orbital motion, shaking diameter is adjustable (12.5 mm, 25 mm, 50 mm) |
| Shaking speed | 20 - 140 rpm (when used with SB10-X) |
| Loading, maximum | 25 kg |
| Setting | Digital : 1 rpm - Accuracy, absolute : ± 0.1 rpm Active brake : adjustable Ambient temperature : 5°C - 40°C 1 Temperature control - Heating : resistance heater (100 W), integrated in tray module Temperature max. : 40 °C - Temperature min. : approx ambient temp (no cooling) |
| Weight | approx 30 kg |
| Required footprint | 698 mm x 328 mm |
| Display | Casing : Stainless steel 1.4301 Interface : 2 x CAN-Bus Optional: EMI-60, NET-60 Touch Screen Display : 12.1" screen (resistive) front is splash proof and dust protected (IP 64) Resolution : 1024 x 768 |
| Power | 70W |
| Max speed | 100 rpm |
| Delivery pressure | max 2 bar |
