Handheld

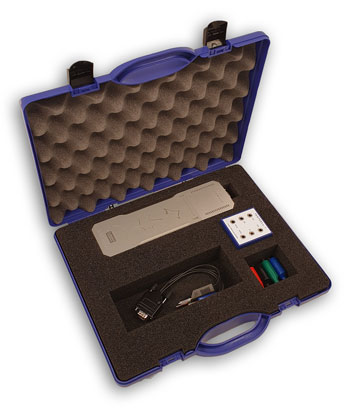

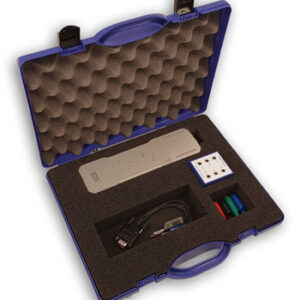

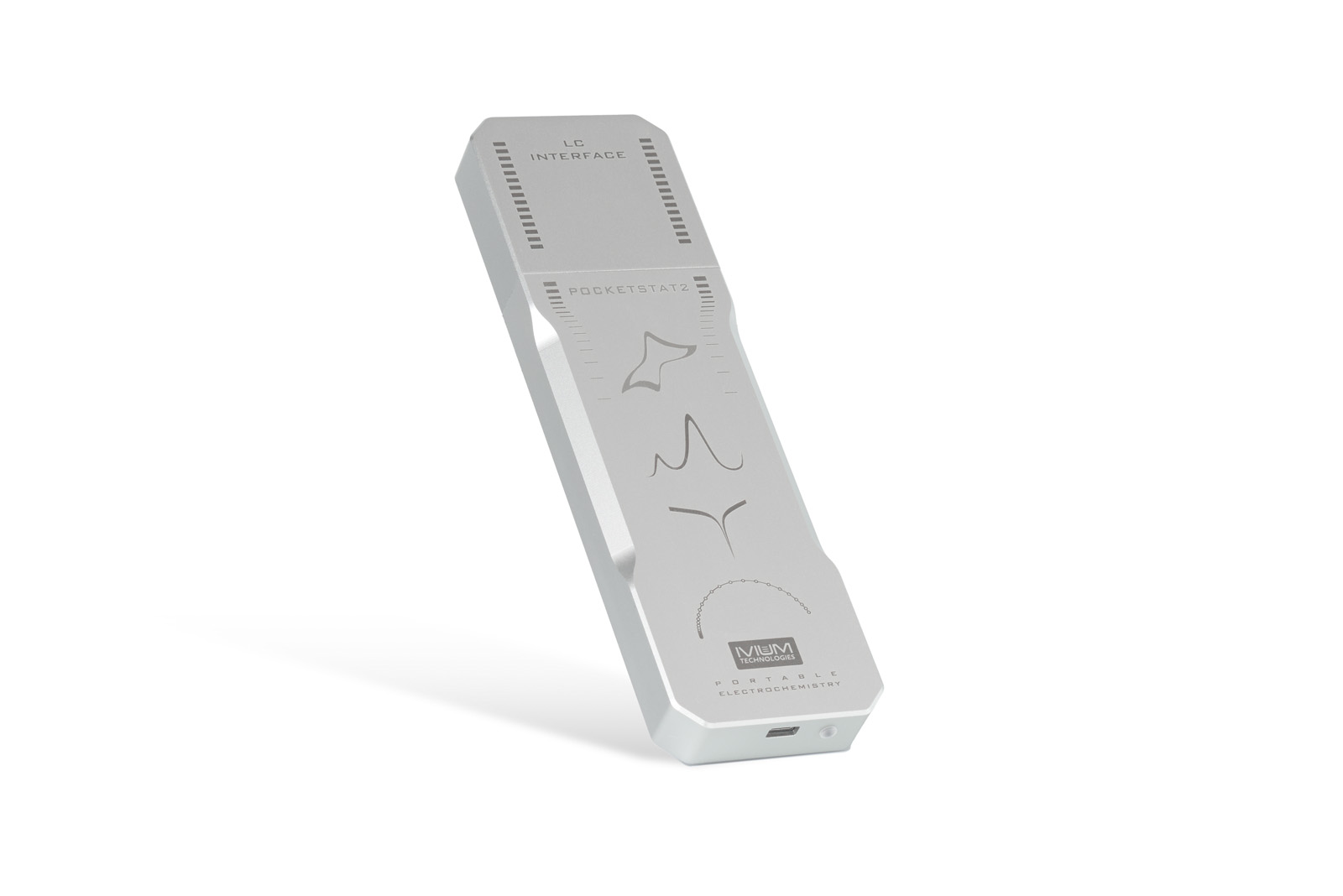

The pocketSTAT2.LC is a portable potentiostat that offers the same excellent, portable handheld pocketSTAT2 instrument but with 3 extra real current ranges down to 10pA. It is the size and weight of a smart phone and it is controlled via a USB connection from any netbook, laptop or PC that is Windows operated.

Expandability

The pocketSTAT2.LC can be expanded with integrated True Linear Scan module.

Key specifications

• Size: 22.3 x 6.7 x 1.9cm
• Weight: 350g
• Scan range: ±30mA/±10V
• Current ranges 10pA to 10mA
• 3 Electrode connection: WE/CE/RE and GND with special low current cell cable
• Max. acquisition rate: 100,000 pnts/s

Rugged design

The pocketSTAT2.LC has a housing made of strong, yet lightweight aluminium.

Hardware

• Automatic current range selection: 10pA to 10mA/1mV to 10V
• Automatic variable noise filter and potentiostat/galvanostat stability settings
• Real time data up to 3,000 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
• Applicable scanrates: 1µV/s to 10,000V/s
• Minimum interval time: 3.33µs (0.125µs resolution)
• Result optimalisation by automated tuned filters, gain amplifiers and DC-subtraction

Software:

The pocketSTAT2.LC is controlled via Ivium’s own Iviumsoft This versatile, yet intuitive software package allows instrument control, data management and analysis, etc. IviumSoft can also interface with and be controlled from LabVIEW^TM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.
