ScioSpec ISX-3 Mini

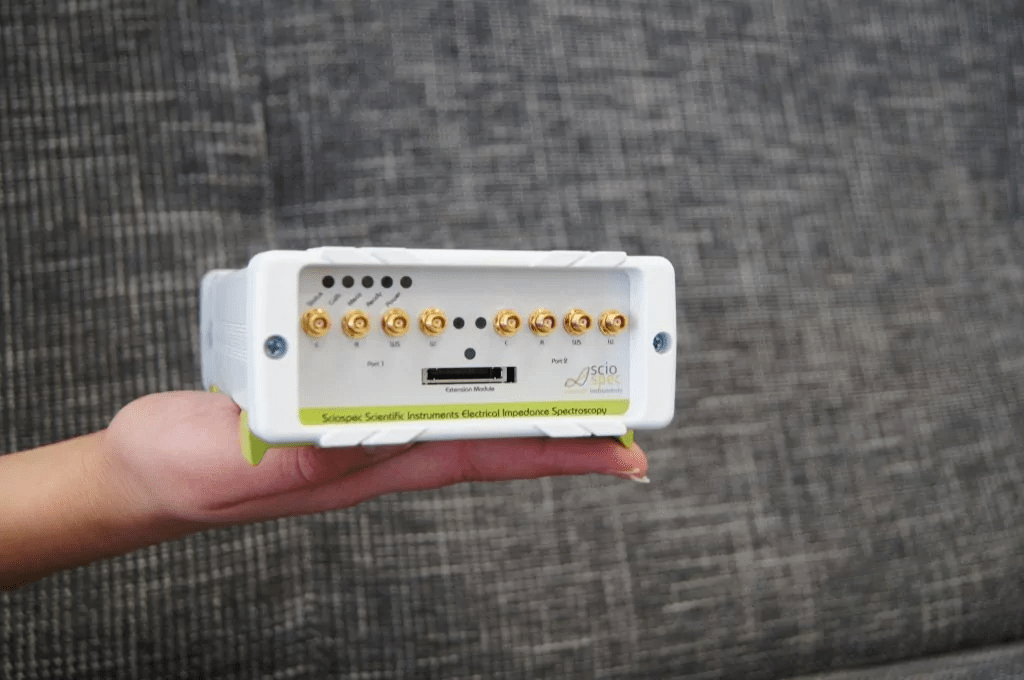

Demanding measurements but no room for large and bulky lab equipment? Impedance Spectroscopy out in the field? With the ISX-3mini Sciospec offers a fully equipped impedance analyzer fitting in the palm of your hand.

  • Ultra-compact impedance analyzer
  • Two multiplexed channels with MCX-Interface for 2, 3 and 4-point-configurations
  • IF Frontend 100 mHz…10 MHz, mOhm…TOhm
  • Frequency extendable to 40 MHz or even 100 MHz
  • 2, 3 and 4 electrode configurations
  • High resolution (up to 2048 frequencies per sweep)
  • Base precision of 0.01%
  • +/- 1 V DC Bias
  • ExtensionPort for application specific frontends
  • Ultra-fast hardware synchronization through sync in/out connectors (optional)
  • Simple connection through Full Speed USB, Ethernet or Wireless LAN
  • PC-based control & data analysis (Sciospec software suit included)
  • Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.
  • IOport digital interface connector for external sensors and other hardware, two additional NTC temperature measurement ports
