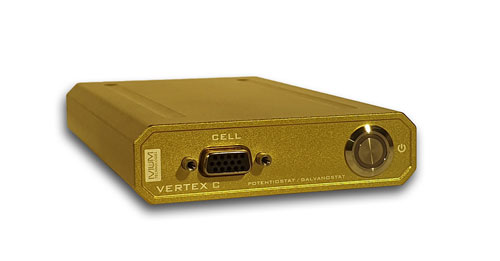

Ivium All-Round Potentiostat/Galvanostat with Impedance Analyzer Vertex.C.EIS (350mA/13V/1MHz)

$5,800.00



The Vertex.C is an all-round potentiostat/galvanostat/ZRA with FRA/EIS (not available as a DC-only instrument). Its low cost and wide specifications result in a versatile single-channel instrument, and multiple instruments are an attractive alternative to a multi-channel solution. The cell is connected with our standard shielded cell cable via the HD15 cell connector. The Vertex.C is capable of all standard electrochemical techniques and includes a complete suite of IviumSoft control and data processing software (for Windows based PCs).

Wide application range

The robust design, the wide specification range, the floating operation, and the availability of a wide range of electrochemical techniques makes the Vertex.C ideal for many applications, including:

  • educational
  • basic electrochemistry
  • batteries
  • corrosion
  • sensors

Expandability

The Vertex.C is supplied with FRA/EIS capability. The instrument can also be expanded with integrated Bipotentiostat and/or True Linear Scan module (contact Ivium/your local distributor for details).

Hardware

  • Automatic current range selection over all available current ranges
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and peripheral signals
  • Real time data display up to 500 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 3.33µs (0.125µs resolution)
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
  • User selectable floating operation

Software

The Vertex.C is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software allows instrument control, data management and analysis, peripheral instrument control, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included as standard with each instrument.

SKU: Vertex.C.EIS Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview



The Vertex.C is an all-round potentiostat/galvanostat/ZRA with FRA/EIS (not available as a DC-only instrument). Its low cost and wide specifications result in a versatile single-channel instrument, and multiple instruments are an attractive alternative to a multi-channel solution. The cell is connected with our standard shielded cell cable via the HD15 cell connector. The Vertex.C is capable of all standard electrochemical techniques and includes a complete suite of IviumSoft control and data processing software (for Windows based PCs).

Wide application range

The robust design, the wide specification range, the floating operation, and the availability of a wide range of electrochemical techniques makes the Vertex.C ideal for many applications, including:

  • educational
  • basic electrochemistry
  • batteries
  • corrosion
  • sensors

Expandability

The Vertex.C is supplied with FRA/EIS capability. The instrument can also be expanded with integrated Bipotentiostat and/or True Linear Scan module (contact Ivium/your local distributor for details).

Hardware

  • Automatic current range selection over all available current ranges
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and peripheral signals
  • Real time data display up to 500 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 3.33µs (0.125µs resolution)
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
  • User selectable floating operation

Software

The Vertex.C is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software allows instrument control, data management and analysis, peripheral instrument control, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included as standard with each instrument.

Specifications





System performance
Current compliance : ±350mA
Maximum compliance voltage: ±13V
Maximum applied voltage: ±10V

Electrode connections:
4; WE, CE, RE, S (and GND) with 4mm banana plugs
Potentiostat bandwidth: >500kHz

Stability settings:
High Speed, Standard and High Stability

Programmable response filter:
1MHz, 100kHz, 10kHz, 1kHz, 10Hz

Signal acquisition:
Dual channel 18bit ADC, 300,000 samples/s
Potentiostat
Applied potential range:  ±10V, 0.08mV res.

Applied potential accuracy: 0.2%, or 2mV

Current ranges: ±100pA to ±100mA in 10 decades

Measured current resolution: 0.003% of current range, minimum 3fA

Measured current accuracy: 20pA + 0.025% of FSR
Galvanostat
Applied current resolution: 0.008% of applied current range

Applied current accuracy : 0.2%

Galvanostatic current ranges: ±10nA to ±100mA

Potential ranges:±1mV, ±4mV, ±10mV, ±40mV, ±100mV, ±400mV, ±1V, ±4V, ±10V

Measured potential resolution: 0.0008% of potential range, minimum 7nV

Measured potential accuracy:0.2% or 2mV
Impedance Analyser ± 0.25°C @ 37°C
CO2 Range 0% to 20%
CO2 Control ± 0.1%
CO2 Stability ± 0.2%
CO2 Uniformity ± 0.2%
CO2 Sensor Infrared (externally mounted)
Min CO2 inlet pressure 5 psi / 0.3 bar
Max CO2 inlet pressure 10 psi / 0.7 bar
Power Requirements 240V AC, 50/60 Hz

380W nominal (1800W decontaminating)

(120V versions available)

Humidity (@37ºC / 5% CO2) up to 95% RH
Shelves included 4 (stainless steel)
Access port 1 (24mm diameter)
Weight 94.5 KG (P190), 104 KG (P190D)
