Handheld

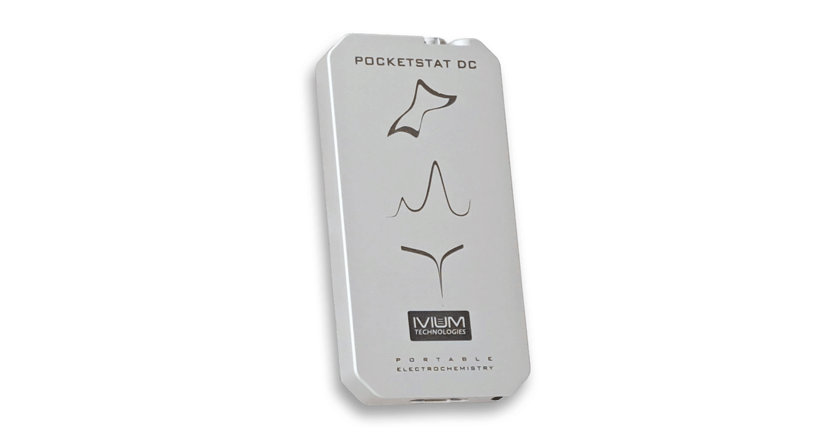

The pocketSTAT.DC is a portable potentiostat/galvanostat/ZRA which is capable of all standard DC electrochemical techniques. It is smaller and more-lightweight than a standard smart phone and is controlled via a USB connection from any netbook, laptop or PC that is Windows operated.

The pocketSTAT.DC has a grounded CE configuration which allows:

• multiple channels in 1 cell (bipotentiostat, WE-arrays, Devanathan, etc.)
• sharing CE and RE for multiple cells or samples
• combination with an other potentiostat to form a bipotentiostat

Key specifications

– Size: 11.5 x 5.9 x 1.4cm
– Weight: 125g
– Scan range: ±10V/±30mA
– 3 Electrode connection: WE/CE/RE
– Max. acquisition rate: 1,000 pnts/s

Rugged design

The pocketSTAT.DC has a housing made of strong, yet lightweight aluminium.

Hardware

• Automatic current range selection: 10nA to 10mA/10V
• Real time data up to 1,000 pnts/s
• Applicable scanrates: 1µV/s to 10,000V/s
• Minimum interval time: 1ms

Software:

The pocketSTAT.DC is controlled via Ivium’s own Iviumsoft This versatile, yet intuitive software package allows instrument control, data management and analysis, etc. IviumSoft can also interface with and be controlled from LabVIEW^TM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.
