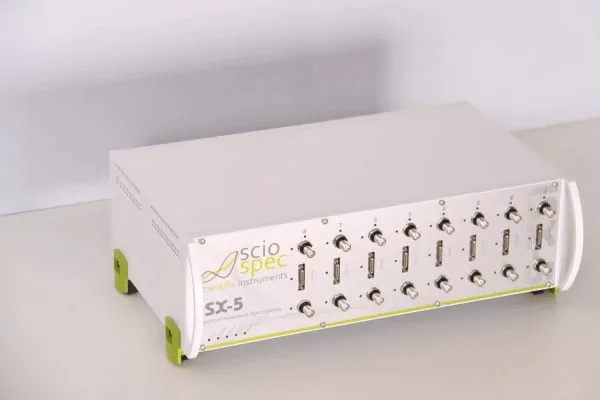

ScioSpec ISX-5

Up to 8 impedance measurement channels can be integrated into one ISX-5 and provide true fully-parallel ultra-fast measurements thanks to the powerful signal processing backend. Multiple ISX-5 chassis can be joined together to enable even higher channel counts.

  • Multichannel impedance analyzer with up to 8 channels in one chassis
  • Channel to channel synchronisation for truly parallel operation
  • Powerful signal processing backend enables fast measurements even with all channels  enabled
  • IF Frontend 100 mHz…10 MHz, mOhm…TOhm
  • Frequency extendable to 40 MHz or even 100 MHz
  • High resolution (up to 2048 points per sweep)
  • Base Precision of 0.01%
  • +/- 1 V DC Bias
  • Advanced setup capability
    • Multichannel setups with different parameters for each channel
    • Synchonous or asynchronous measurements
    • Multiple analysis ports with single excitation source
    • Nonlinear impedance spectroscopy
  • Ultra-fast hardware synchronization through sync in/out ports
  • ExtensionPort for application specific frontends
  • Simple connection through High Speed USB or Ethernet
  • PC-based control & data analysis (Sciospec software suit included)
  • Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.
Category:
p

Overview

Description & features of the product

h

Specification

Specification of the product

Product Enquiry

Enquire more about our product

Reviews

Reviews about the product

Overview

Up to 8 impedance measurement channels can be integrated into one ISX-5 and provide true fully-parallel ultra-fast measurements thanks to the powerful signal processing backend. Multiple ISX-5 chassis can be joined together to enable even higher channel counts.

  • Multichannel impedance analyzer with up to 8 channels in one chassis
  • Channel to channel synchronisation for truly parallel operation
  • Powerful signal processing backend enables fast measurements even with all channels  enabled
  • IF Frontend 100 mHz…10 MHz, mOhm…TOhm
  • Frequency extendable to 40 MHz or even 100 MHz
  • High resolution (up to 2048 points per sweep)
  • Base Precision of 0.01%
  • +/- 1 V DC Bias
  • Advanced setup capability
    • Multichannel setups with different parameters for each channel
    • Synchonous or asynchronous measurements
    • Multiple analysis ports with single excitation source
    • Nonlinear impedance spectroscopy
  • Ultra-fast hardware synchronization through sync in/out ports
  • ExtensionPort for application specific frontends
  • Simple connection through High Speed USB or Ethernet
  • PC-based control & data analysis (Sciospec software suit included)
  • Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.
