| Parameter | HPS21026-6V5A-2CH (with chamber) | HPS21026-6V5A-2CH (without chamber) |
| Number of Channels | 2 | |
| Voltage Range | (−6V) – 6V | |
| Current Ranges (6 per ch.) | 5A / 1A / 100mA / 10mA / 1mA / 100µA | |
| V Measurement Precision | 10 ppm (120 µV) | |
| I Measurement Precision | 20 ppm | |
| V/I Control Precision | 40 ppm | |
| Measurement Resolution | 24-bit DAC & ADC | |
| Input Impedance | 100 GΩ | |
| Rise Time (10–90%) | ≤200 µs | |
| Built-in EIS Range | 10 mHz – 1 kHz (dedicated per ch.) | |
| Data Acquisition Rate | Up to 1 kHz (Regular) / 16 kHz (Burst) | |
| Time Resolution | 100 µs | |
| Built-in Temp. Sensor | PT100, –80 – 200 °C, ±0.5 °C accuracy | |
| Integrated Chamber | 2 chambers; Ambient−10°C to 60°C; ±1.5°C spatial variation; ±0.5°C stability | None |
| Rack Mount Capacity | Up to 6 channels | |
| Input Voltage | 110 – 240 VAC | |
| Dimensions (W × D × H) | 16" × 17" × 16" | 16" × 27" × 5" |

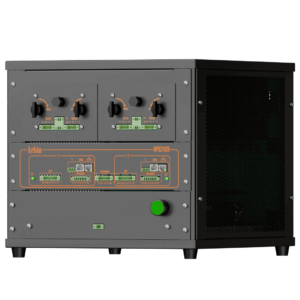

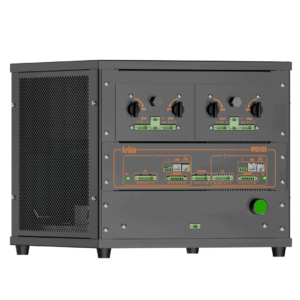

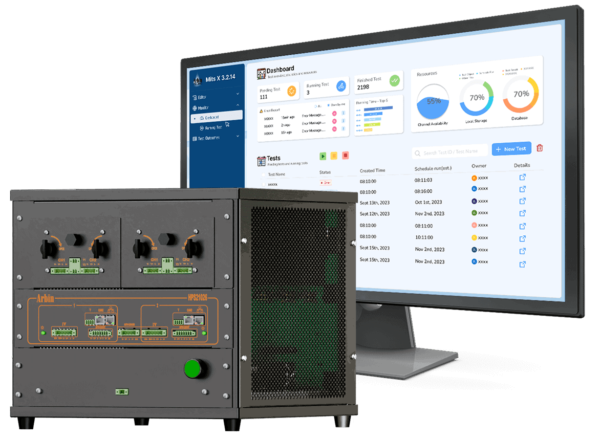

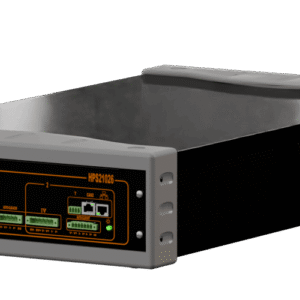

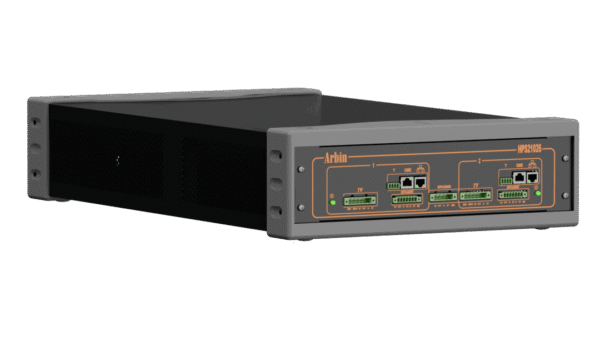

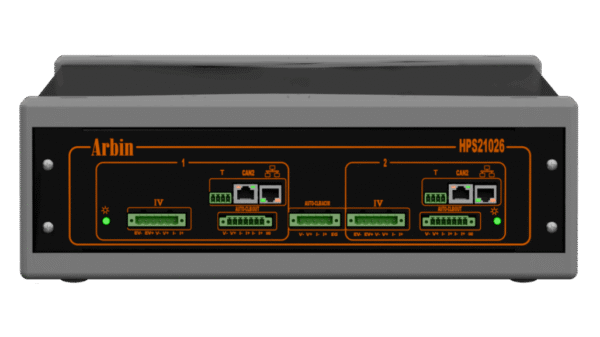

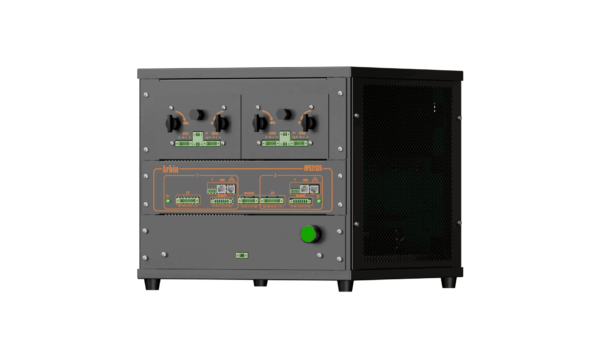

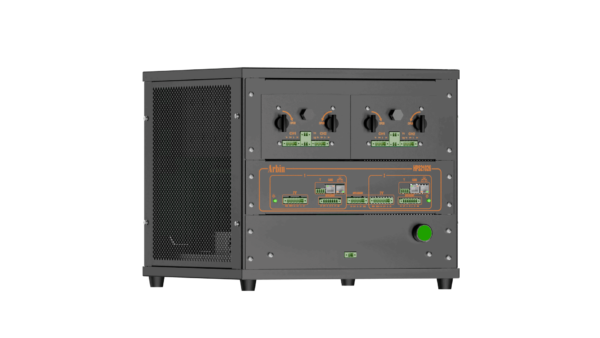

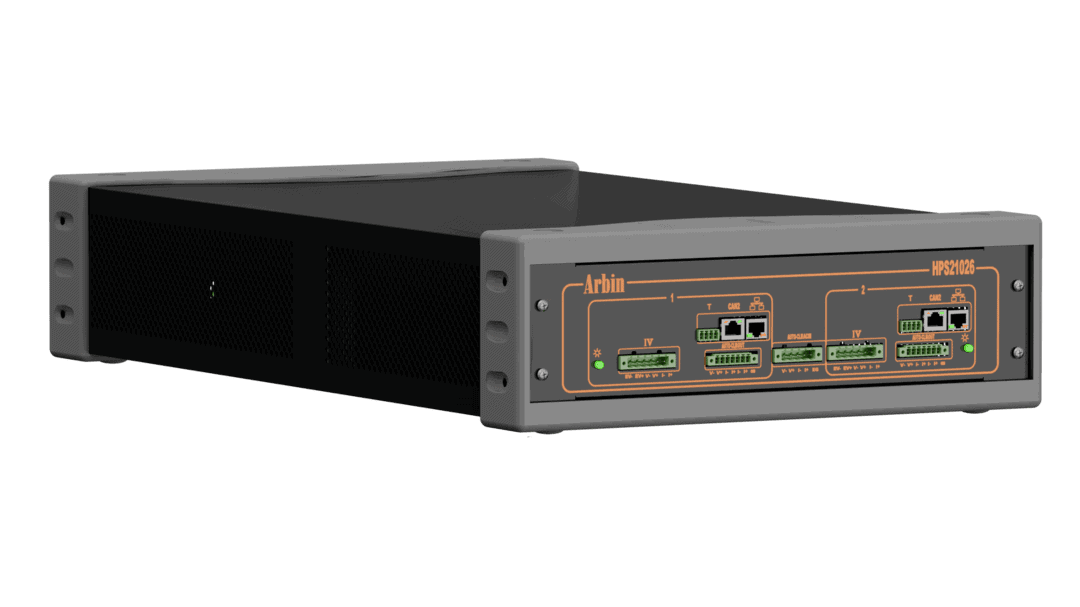

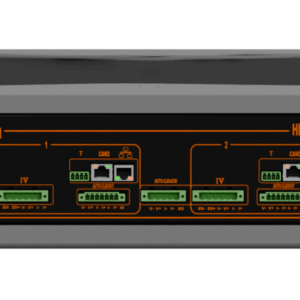

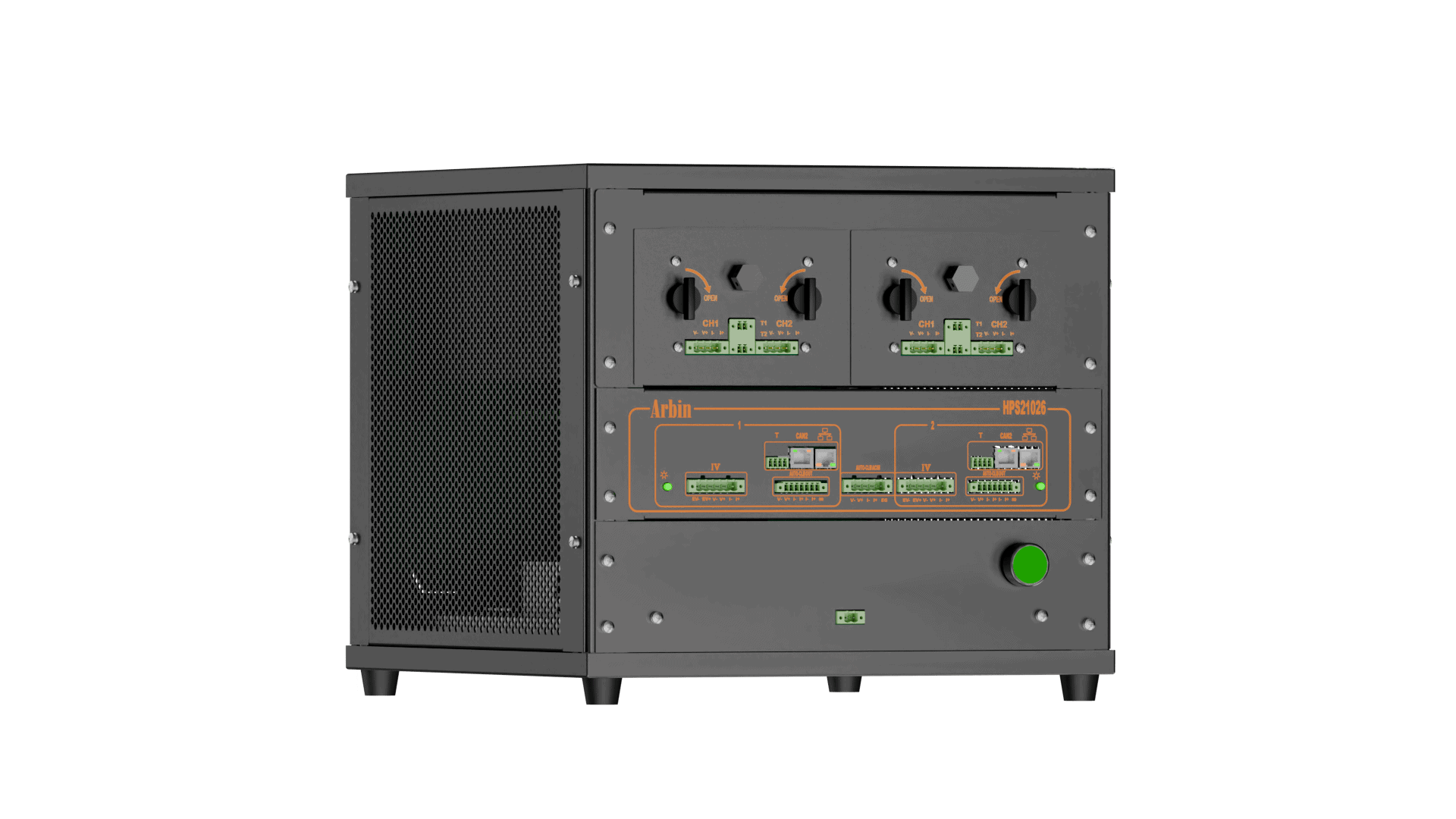

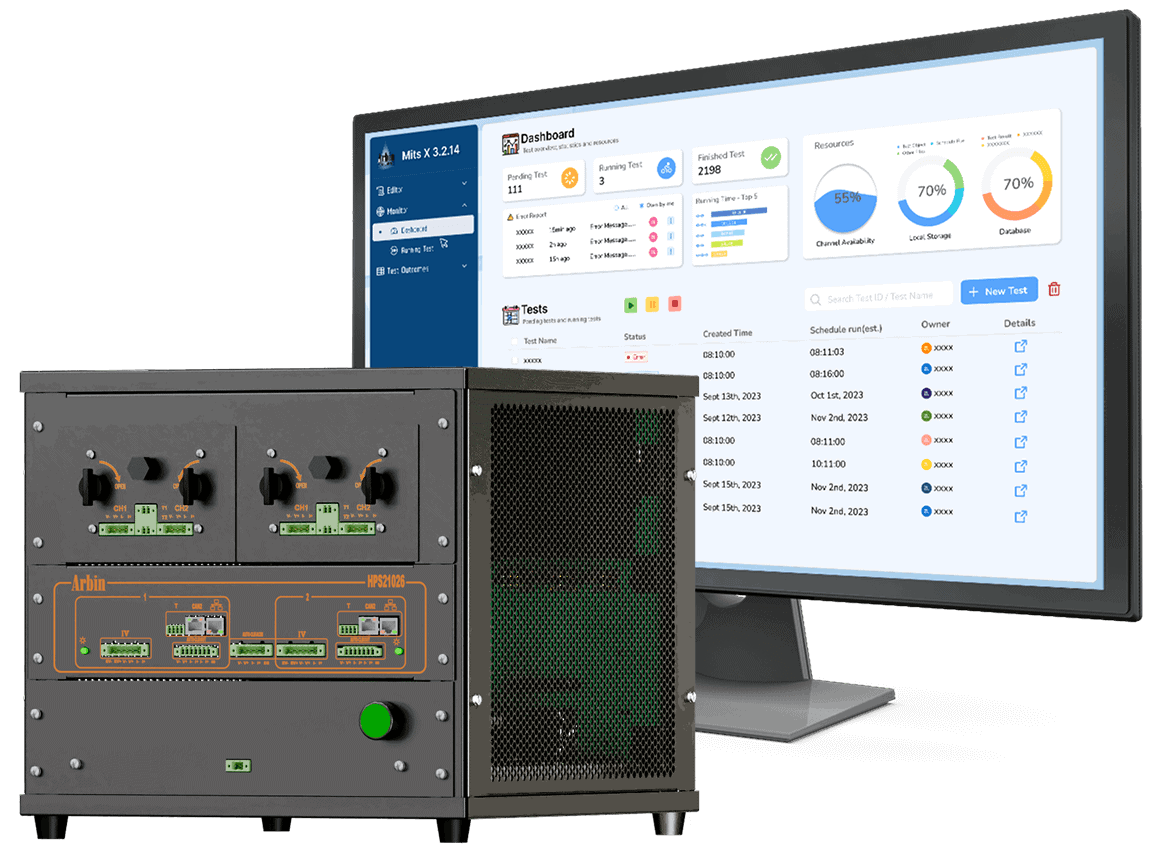

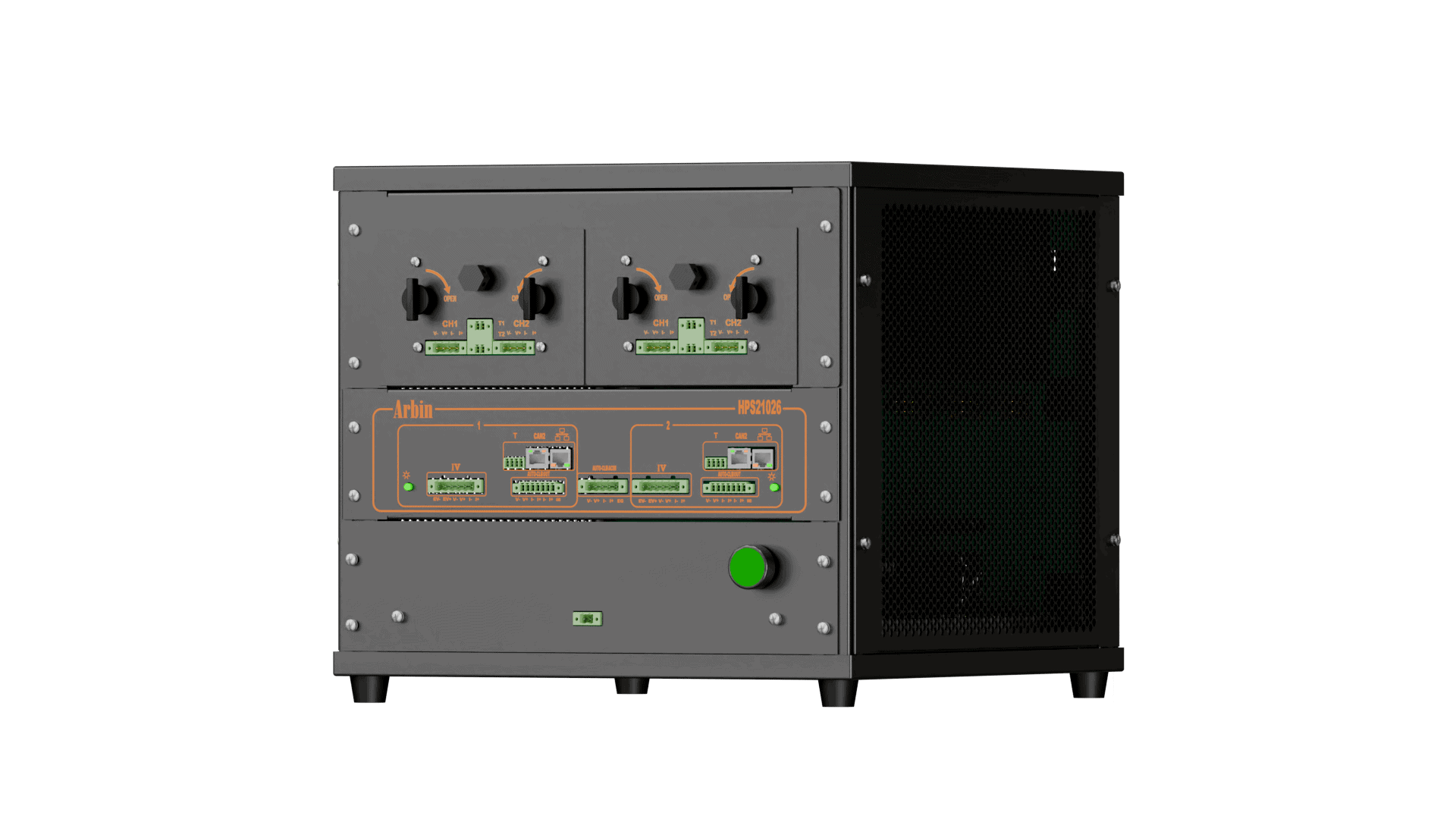

Arbin HPS with Integrated Chamber Option

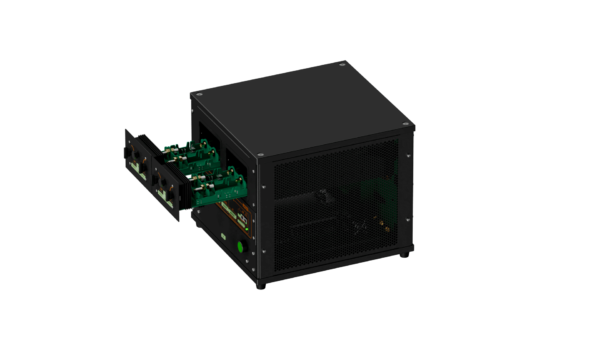

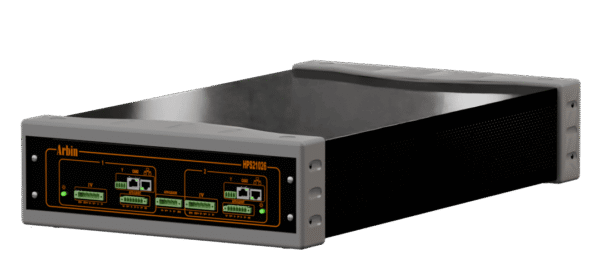

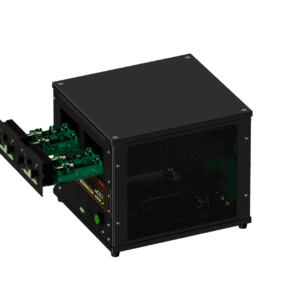

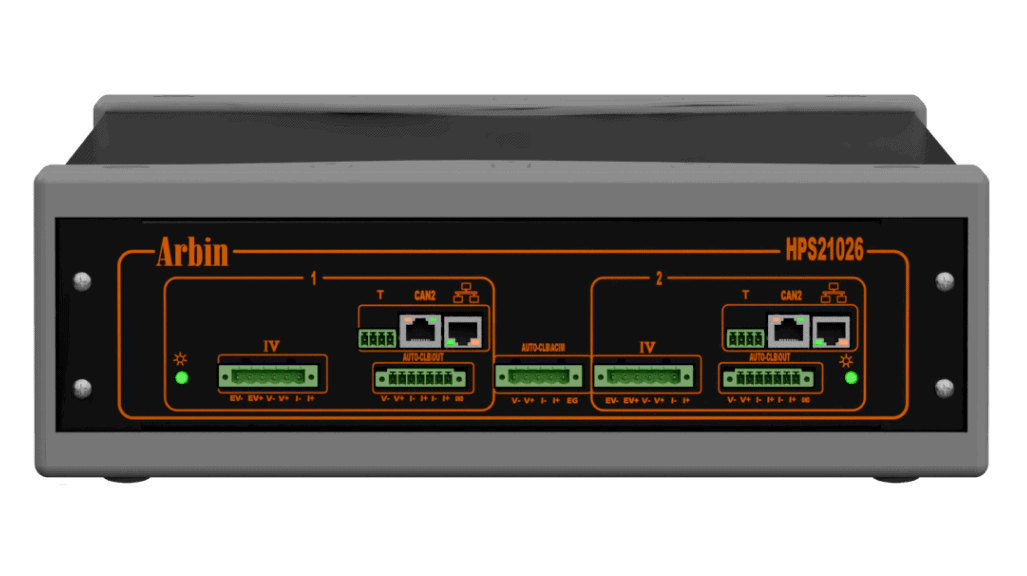

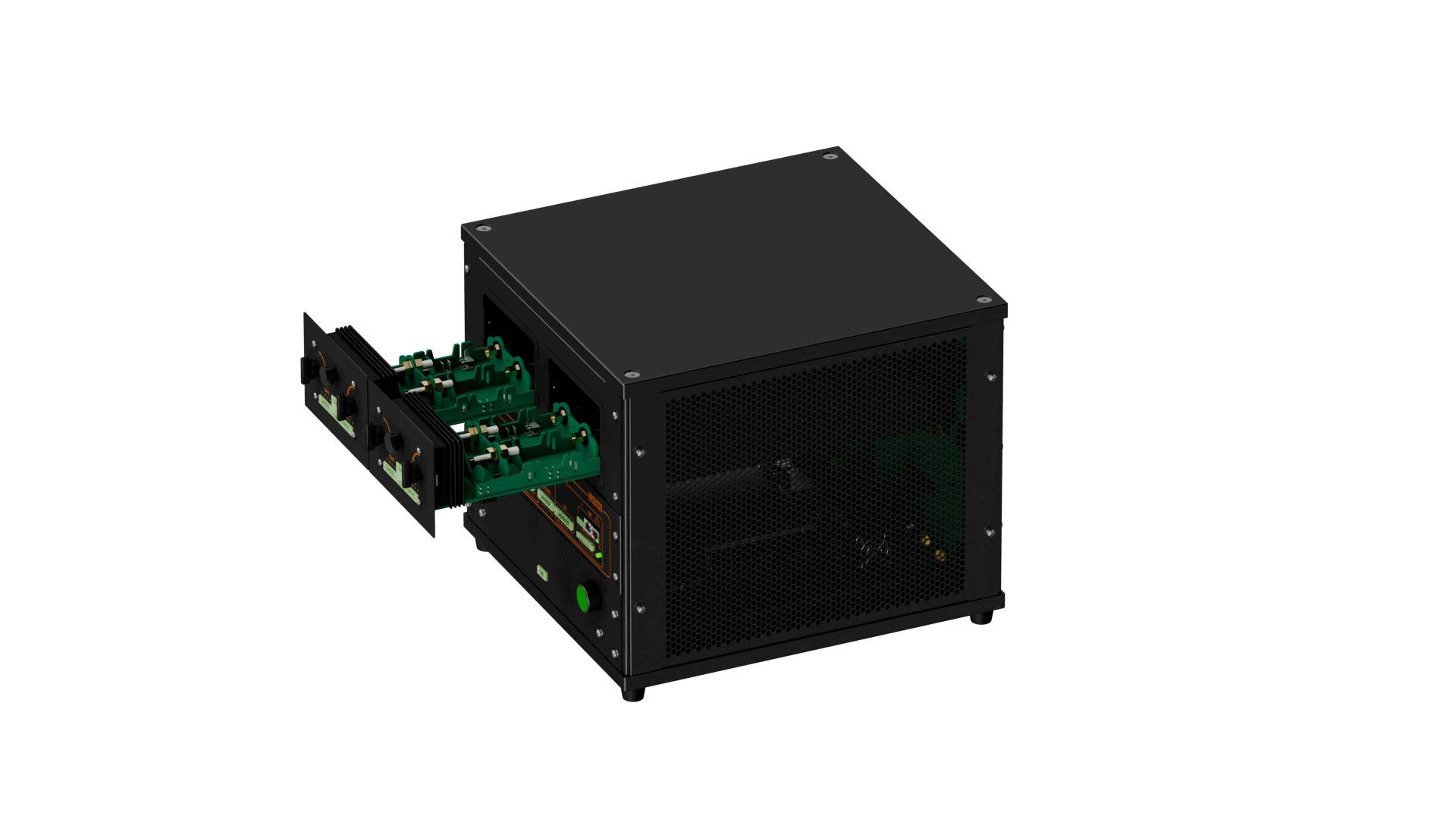

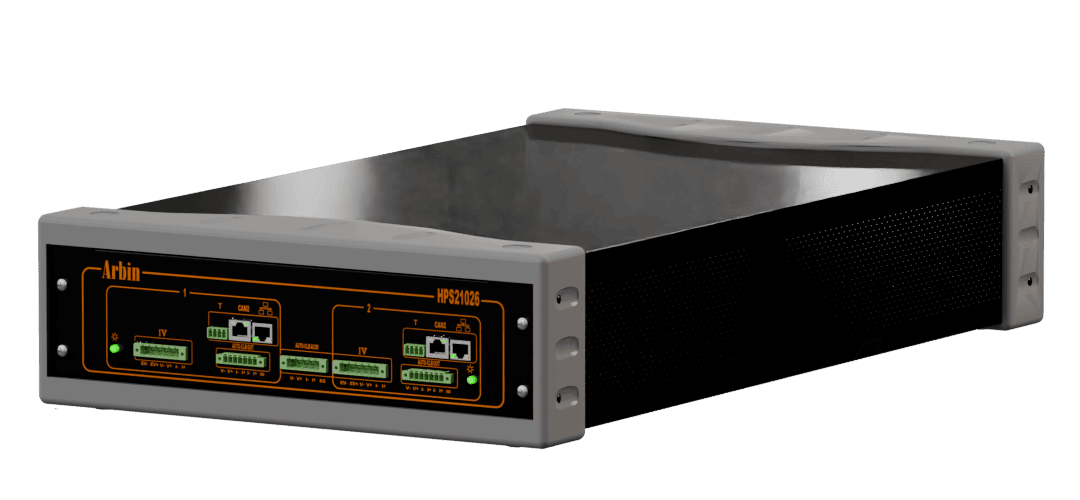

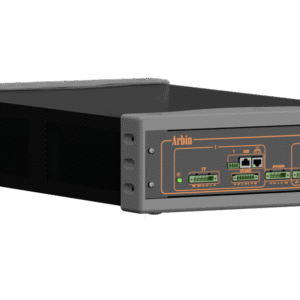

The HPS is Arbin's flagship laboratory battery tester, delivering 10 ppm voltage measurement precision and 20 ppm current measurement precision via a 24-bit DAC/ADC architecture across six current ranges per channel. Built-in EIS (10 mHz – 1 kHz), DCIM, self-discharge current measurement, and PT100 temperature sensing make it ideal for high-confidence Coulombic efficiency studies. The integrated thermal chamber version adds per-channel temperature-controlled cell fixtures, while the standalone chassis allows flexible external chamber pairing. Both configurations support rack mounting up to six channels
